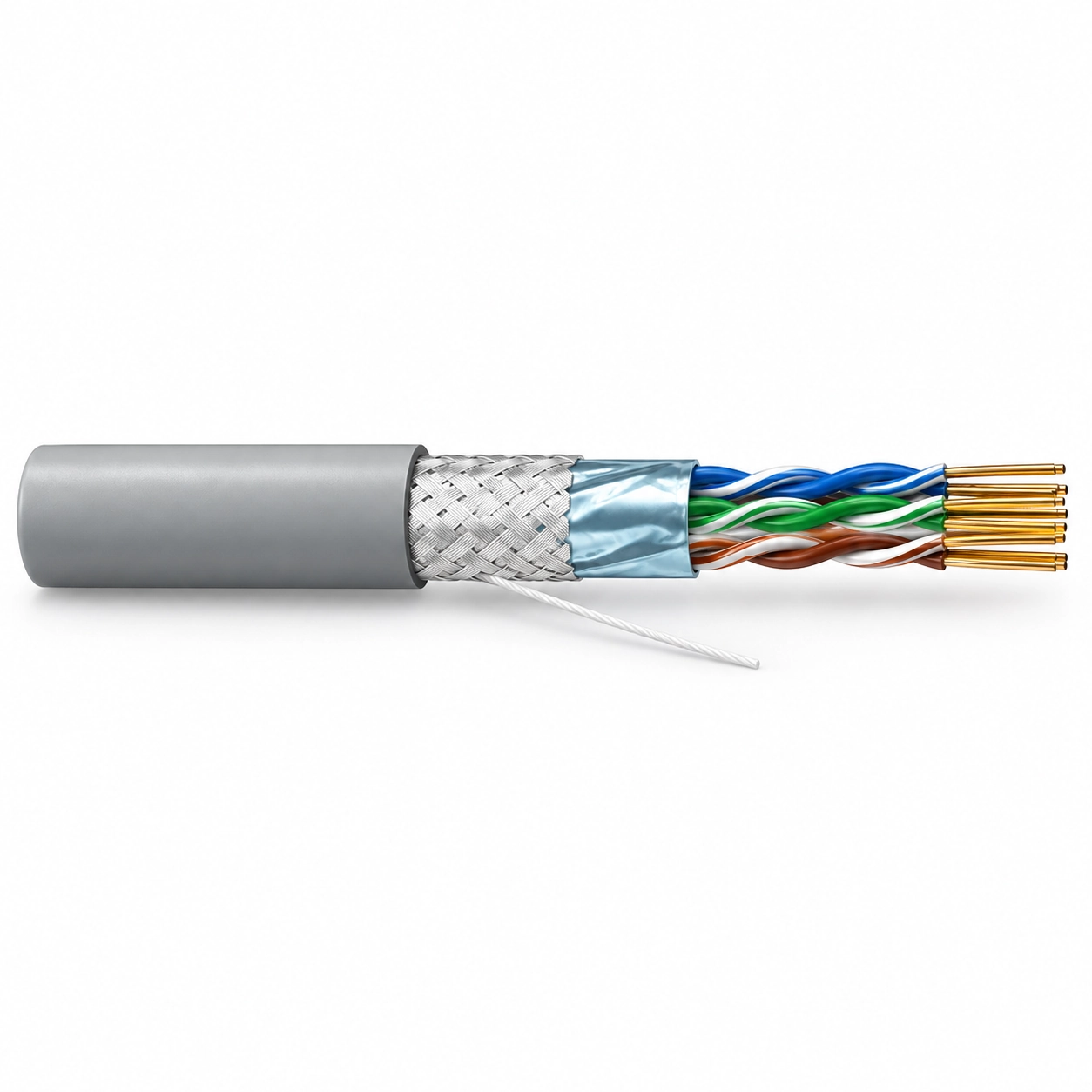

CASITEK Category 5e SF/UTP Cable
ETHERNETIC™

Category 5e SF/UTP Cable

Shielded LAN cable; Category 5e; SF/UTP; 100 MHz bandwidth; 24 AWG conductor; PE insulation; foil + braid shielding; PVC outer sheath; suitable for office and industrial networks.

100 MHz Bandwidth

Category 5e LAN performance

100 MHz Bandwidth

SF/UTP shielding construction

Foil + Braid Shielding

Suitable for EMI environments

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Category Category 5e
Shielding SF/UTP
Conductor 24 AWG
Insulation PE, 0.92 ± 0.02 mm
Shield Foil + braid
Outer Sheath PVC
Outer Diameter 6.4 ± 0.2 mm
Bandwidth 100 MHz
Data Rate 100 Mbps
Resistance ≤ 9.5 Ω
Resistance Unbalance ≤ 2.5%
Standards TIA/EIA-568-C.2 / ISO/IEC 11801 / YD/T 1019-2013 / RoHS
Model CSK-C5E-SF
Packing 305 m/Reel

Available Articles – Category 5e SF/UTP Cable

Model No. Description Packing Unit
CSK-C5E-SF Cat.5e SF/UTP Cable 305 m Reel

Downloads

Sản phẩm liên quan

CASITEK Category 7 S/FTP LAN cable with foil-per-pair and overall braid shielding
ETHERNETIC™ – ETHERNET & LAN CABLES

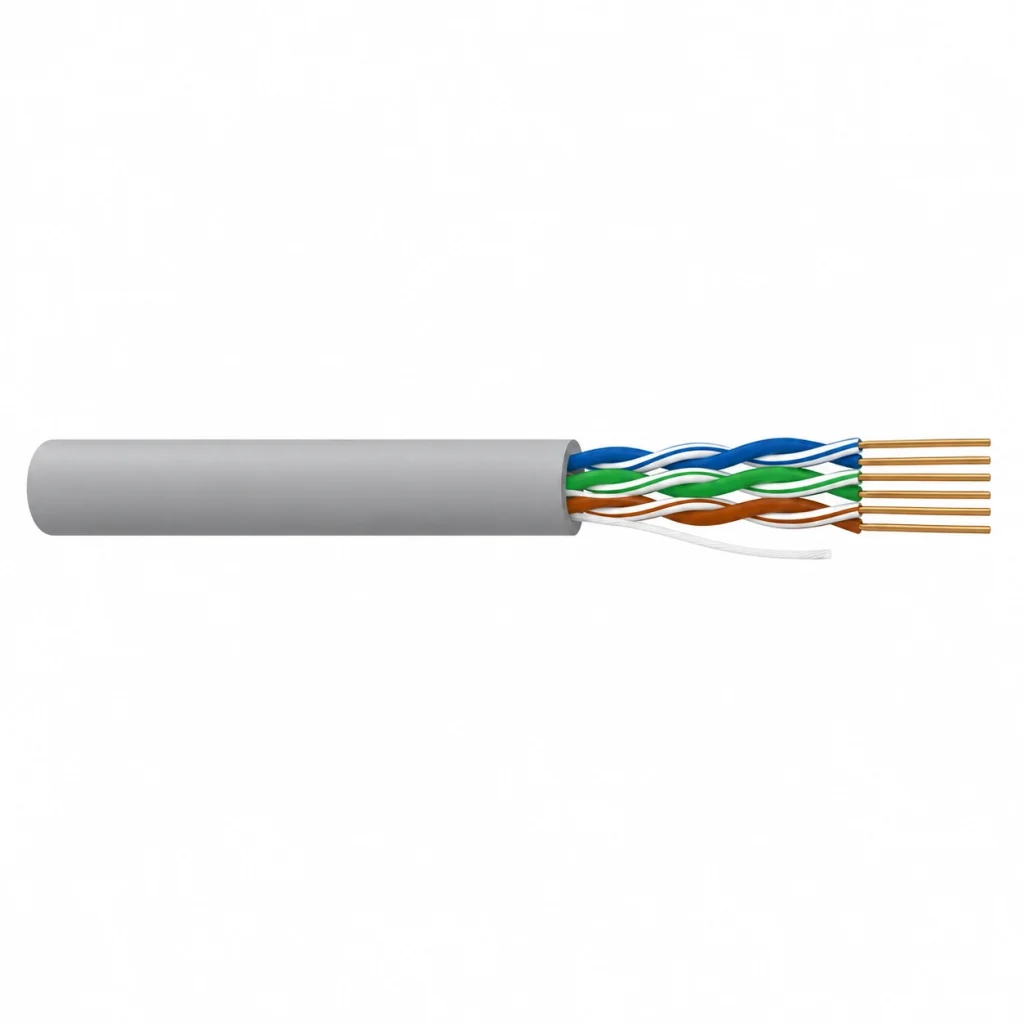

Category 5e UTP Cable

Unshielded LAN cable; Category 5e; UTP; 100 MHz bandwidth; supports 100 Mbps; 24 AWG solid OFC conductor; PE insulation; PVC outer sheath; suitable for office and building networks.

XEM CHI TIẾT
CASITEK Category 6A UTP LAN cable with 23 AWG conductors, PE insulation, spline separator and PVC sheath
CAT6A CABLES

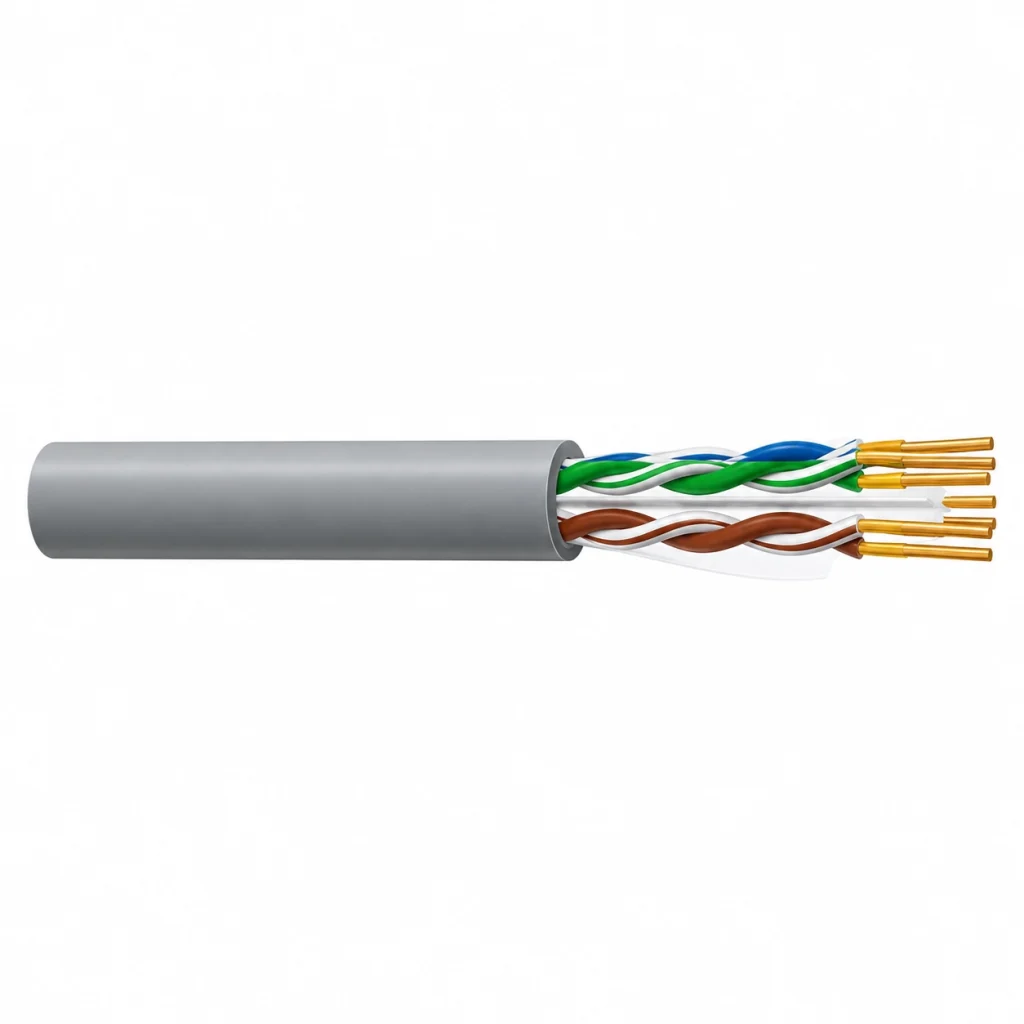

Category 6A UTP Cable
