ETHERNETIC™

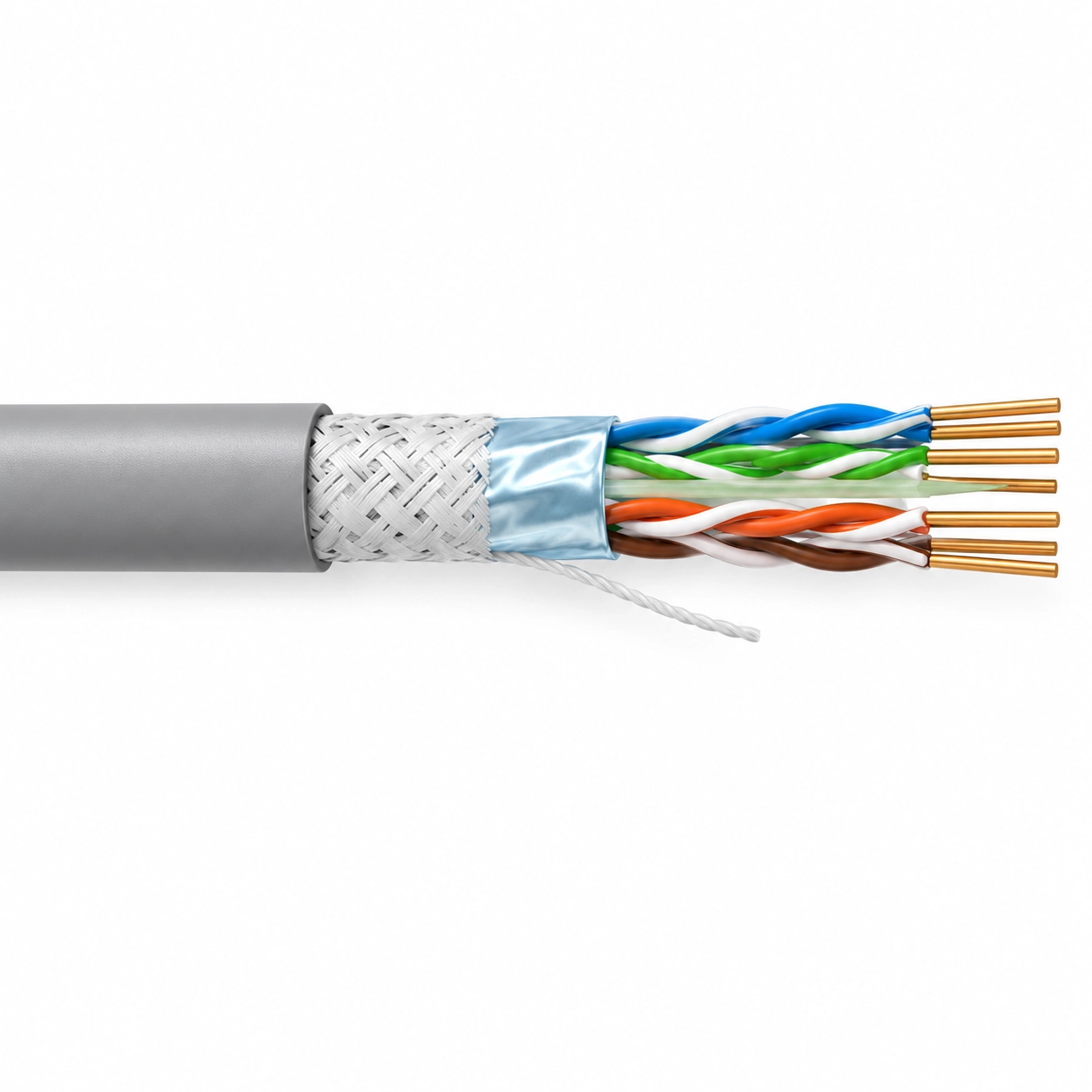

Category 6 SF/UTP Cable
Double-shielded LAN cable; Category 6; SF/UTP; 250 MHz bandwidth; supports 1 Gbps; 23 AWG solid OFC conductors; PE insulation; cross spline separator; aluminium foil and tinned-copper braid shielding; PVC outer sheath.
250 MHz Bandwidth
Category 6 Class E performance
SF/UTP Double Shielding
Al-foil + overall TC braid
High EMI Protection
Designed for high-interference environments
IN STOCK
100% GENUINE
Technical Data
| Parameter | Specification | |
|---|---|---|
| Category | Category 6 | |
| Shielding | SF/UTP | |
| Conductor | 23 AWG Solid OFC | |
| Insulation | PE | |
| Separator | Cross Spline | |
| Shield | Al-foil + TC braid | |
| Outer Sheath | PVC | |
| Overall Diameter | 7.8 ± 0.3 mm | |
| Bandwidth | 250 MHz | |
| Data Rate | 1000 Mbps | |
| Conductor Resistance | ≤ 9.5 Ω/100m | |
| Resistance Unbalance | ≤ 2.5% | |
| Capacitance | ≤ 5.6 nF/100m | |
| Minimum Bending Radius | ≥ 8 × OD | |
| Installation Tension | <110 N short / <20 N long | |
| Installation Temperature | 0°C to +40°C | |
| Operating Temperature | -10°C to +60°C | |
| Standards | TIA/EIA-568-C.2 / ISO/IEC 11801 / GB 50311-2007 / YD/T 926.2-2009 / RoHS | |
| Model | CSK-C6SF-01 | |
| Packing | 305 m/Reel |
Available Products – Category 6 SF/UTP Cable
| PRODUCT CODE | DESCRIPTION | PACKING | UNIT |
|---|---|---|---|
| CSK-C6SF-01 | Category 6 SF/UTP Cable | 305 m | Reel |
