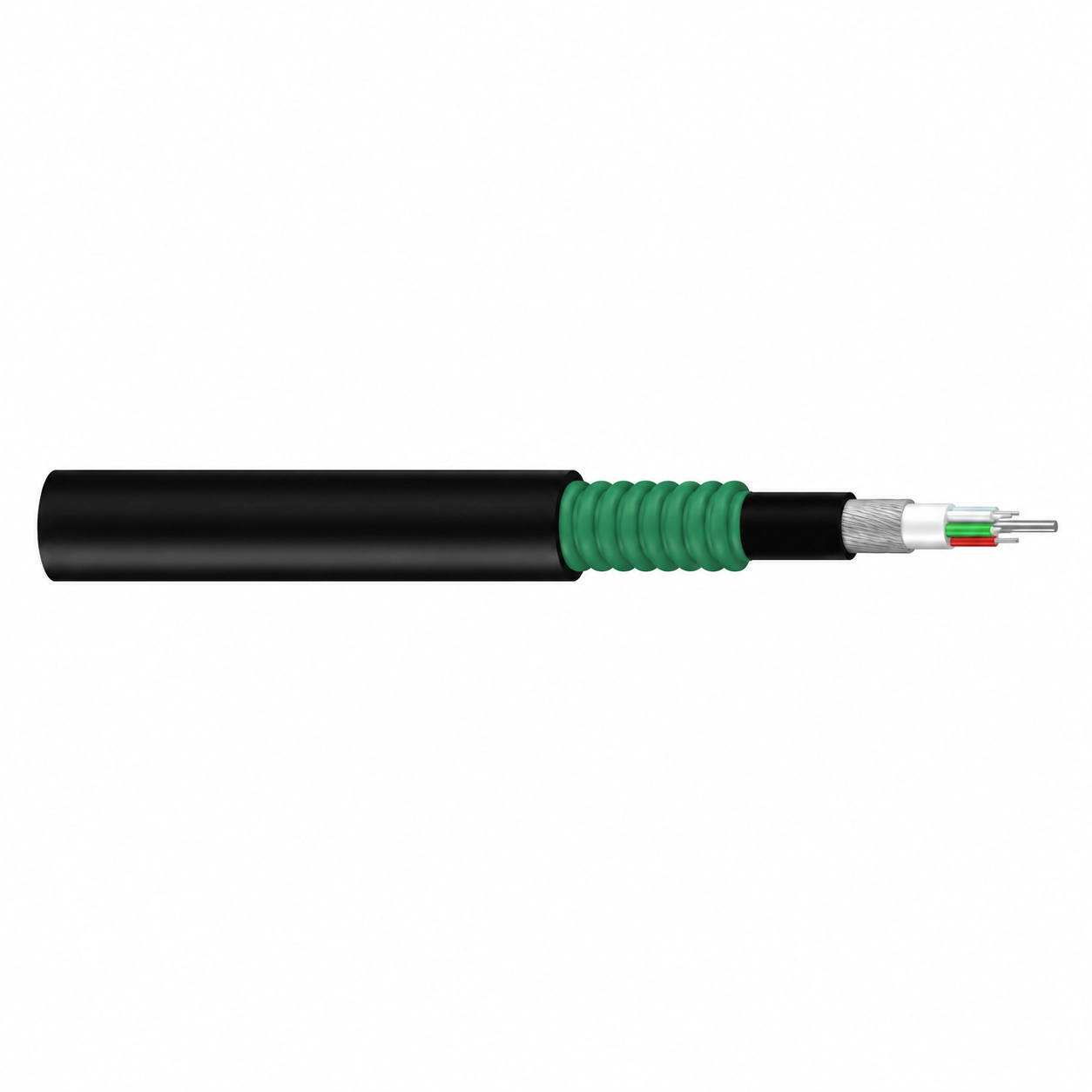

CASITEK GYTA53 outdoor optical fiber cable with stranded loose tubes, APL and PSP double-layer armour, steel strength member and PE sheath
FIBERLINK™

GYTA53 Double-Layer Armoured Optical Fiber Cable

Heavy-duty outdoor optical fiber cable; OS2 single-mode fiber; stranded loose-tube construction; central phosphating steel wire strength member; APL and PSP double-layer armour; gel or powder water blocking; PE inner and outer sheaths; designed for duct, aerial, direct burial and harsh-environment backbone installations.

APL + PSP Double-Layer Armour

Dual APL and PSP armour layers provide enhanced mechanical protection

High Tensile Strength

Designed for demanding outdoor and direct burial installations

Excellent Water Blocking

Gel or powder water blocking provides reliable moisture protection

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Cable Type GYTA53
Application Outdoor
Fiber Type OS2 Single Mode
Structure Stranded Loose Tube
Loose Tube PBT
Strength Member Single Phosphating Steel Wire
Inner Sheath PE
Armour APL + PSP Double Layer
Water Blocking Gel / Powder
Outer Sheath PE
Installation Duct / Aerial / Direct Burial
Standards YD/T 901-2009 / GB/T 9771-2008

Available Configuration – GYTA53 Double-Layer Armoured Optical Fiber Cable

Type Fiber Type Wavelength Attenuation Bending Radius Tension Crush Installation
GYTA53 OS2 Single Mode 1310 / 1550 nm ≤0.35 / 0.22 dB/km 30D / 15D 4000 / 2000 N 3000 / 1000 N/100mm Duct / Aerial / Direct Burial

Downloads

Sản phẩm liên quan

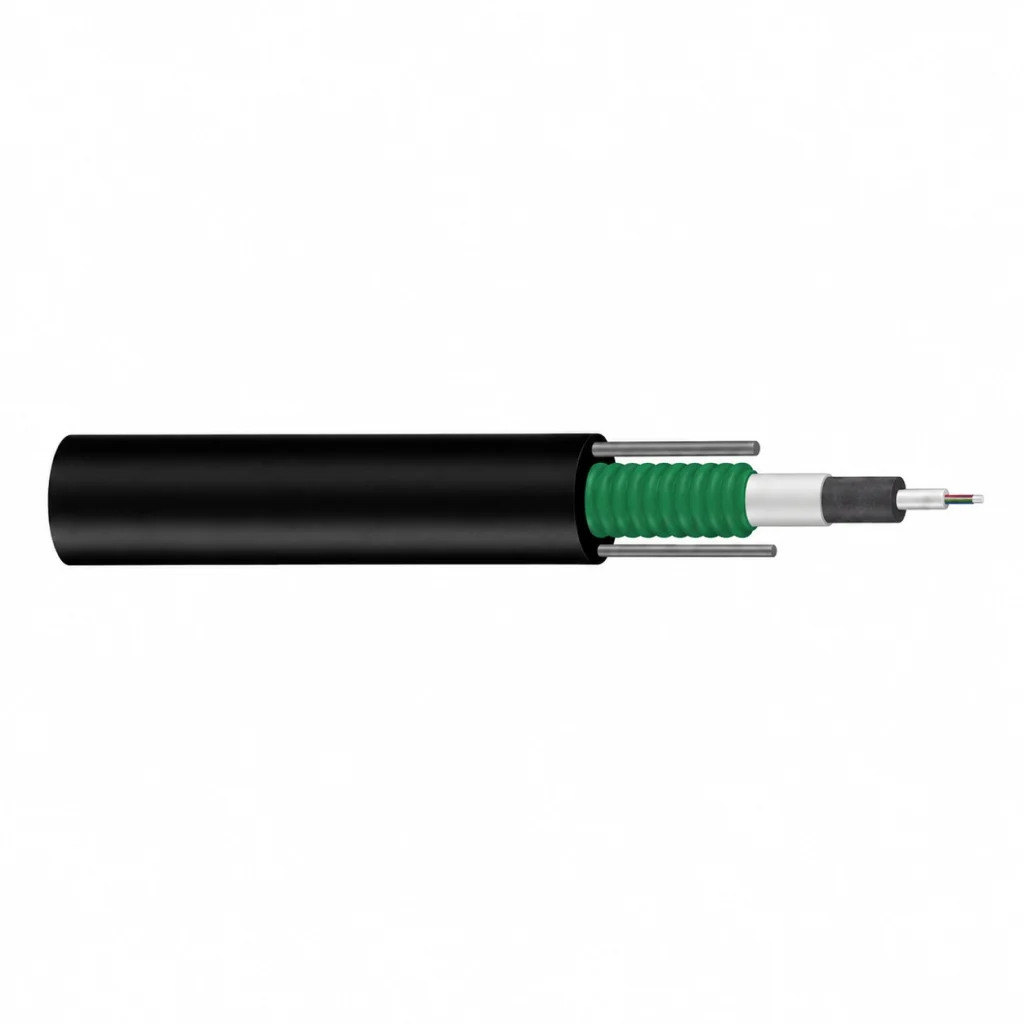

CASITEK GYXTW outdoor optical fiber cable with PBT loose tube, PSP light armour, steel wire strength members and PE sheath
FIBERLINK™ – FIBER OPTIC CABLES

GYXTW Center Bundle Light Armoured Optical Fiber Cable

Outdoor center-bundle optical fiber cable; GYXTW loose-tube construction; 2–12 cores; supports OS2, OM1, OM2, OM3 and OM4 fibers; PSP light armour; dual phosphating steel wire strength members; filling compound and water-blocking tape; PE outer sheath; designed for duct, aerial and direct burial installations.

XEM CHI TIẾT

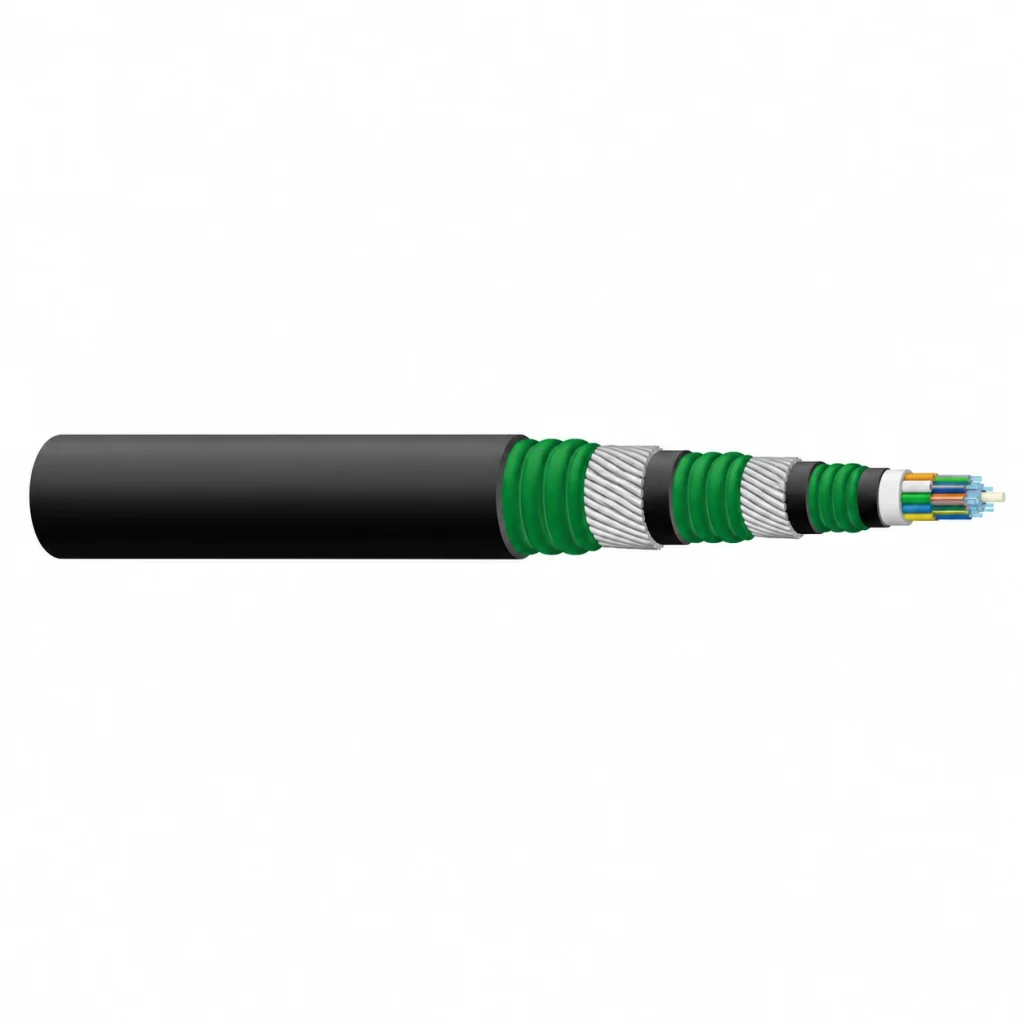

CASITEK GYTS33 GYTA33 underwater optical fiber cable with double steel wire armour, PSP or APL layer and multi-layer PE sheath
FIBERLINK™ – FIBER OPTIC CABLES

GYTS33 / GYTA33 Underwater Optical Fiber Cable

Heavy-duty underwater optical fiber cable; OS2 single-mode fiber; stranded loose-tube construction; central metallic strength member; double steel wire armour with PSP or APL laminated layer; filling compound and water-blocking tape; multi-layer PE sheath; designed for sea, river, lake, port, offshore and long-distance backbone installations.

XEM CHI TIẾT
CASITEK GJFJV OM1 OM2 indoor tight-buffered optical fiber cable with orange sheath and aramid yarn strength member
FIBERLINK™ – FIBER OPTIC CABLES

GJFJV OM1 / OM2 Indoor Tight-Buffered Optical Fiber Cable

Indoor tight-buffered optical fiber cable; OM1 / OM2 multimode fiber; available in 4, 6, 8 and 12 core configurations; aramid yarn strength member; PVC or LSZH sheath; orange sheath identification; suitable for indoor cabling, data centers, backbone fiber systems and telecommunication networks.

XEM CHI TIẾT

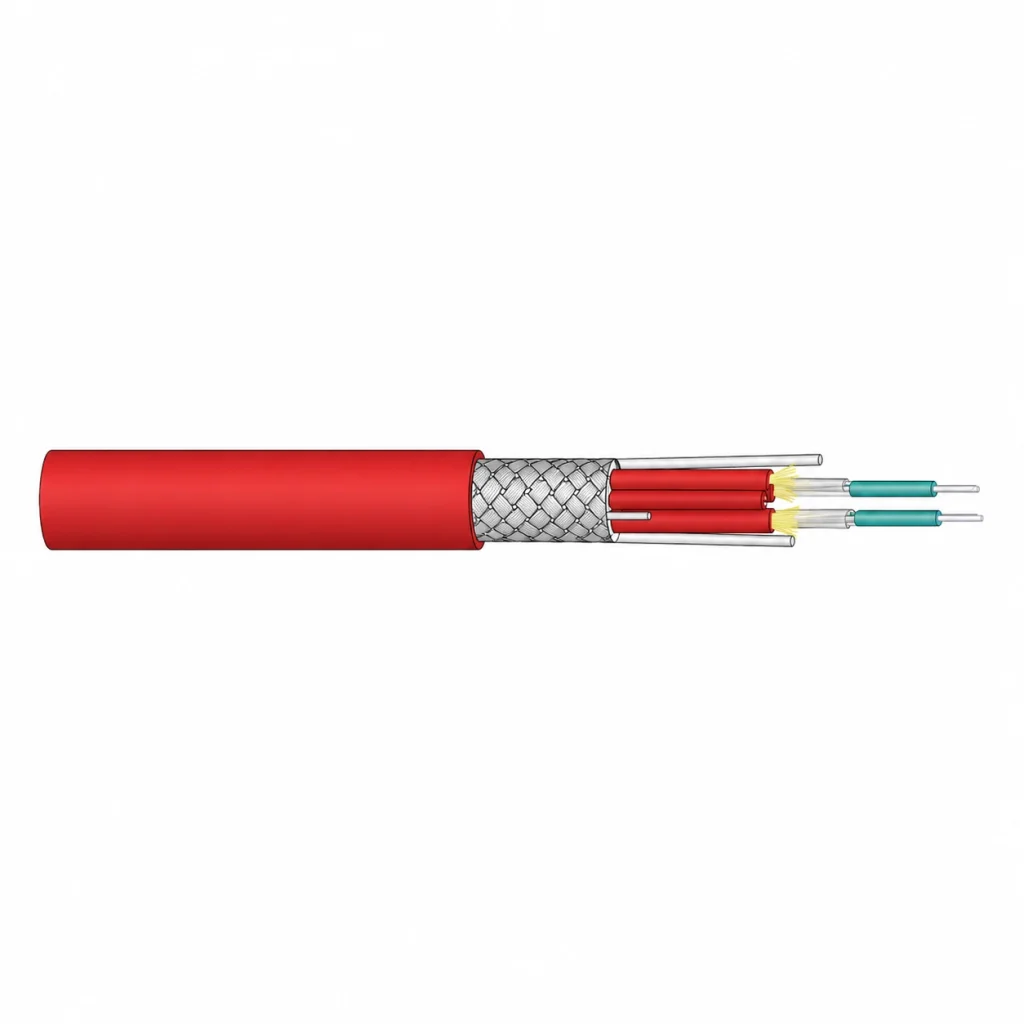

CASITEK GYJFJKY flexible armoured indoor optical fiber cable with tight-buffered fibers, steel armour, aramid yarn and LSZH sheath
