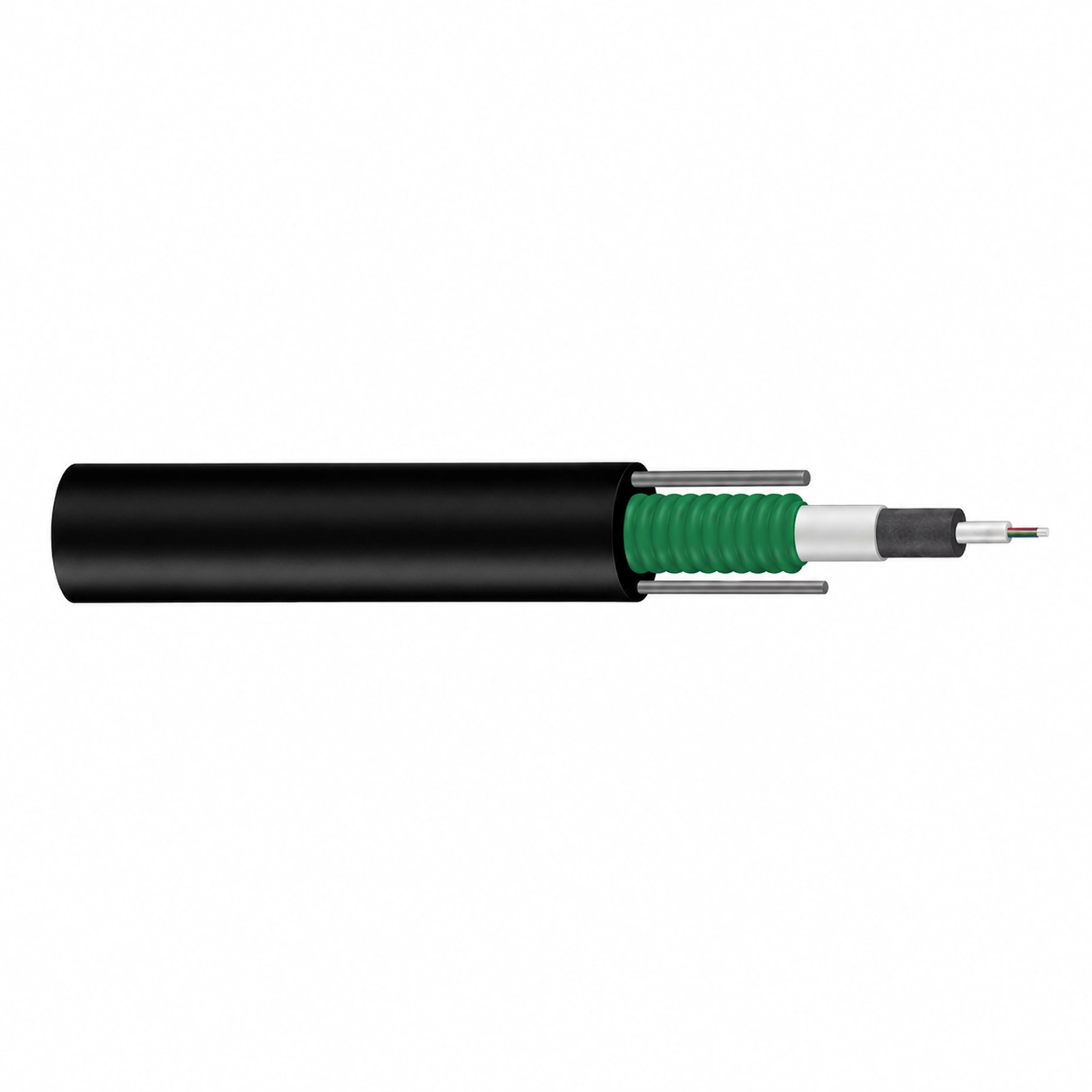

CASITEK GYXTW outdoor optical fiber cable with PBT loose tube, PSP light armour, steel wire strength members and PE sheath
FIBERLINK™

GYXTW Center Bundle Light Armoured Optical Fiber Cable

Outdoor center-bundle optical fiber cable; GYXTW loose-tube construction; 2–12 cores; supports OS2, OM1, OM2, OM3 and OM4 fibers; PSP light armour; dual phosphating steel wire strength members; filling compound and water-blocking tape; PE outer sheath; designed for duct, aerial and direct burial installations.

PSP Light Armoured Protection

PSP armour provides enhanced mechanical protection

Excellent Water Blocking

Filling compound and water-blocking tape protect against moisture

Duct / Aerial / Direct Burial

Suitable for outdoor duct, aerial and direct burial installations

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Cable Type GYXTW
Application Outdoor
Fiber Type OS2 / OM1 / OM2 / OM3 / OM4
Fiber Count 2–12 cores
Structure Center bundle loose tube
Loose Tube PBT
Strength Member 2 Phosphating Steel Wires
Armour PSP
Water Blocking Filling Compound + Tape
Outer Sheath PE
Cable Diameter 8–9 mm
Installation Duct / Aerial / Direct Burial
Standards YD/T 769-2019 / GB/T 9771-2008 / TIA/EIA-598

Available Fiber Configurations – GYXTW Center Bundle Light Armoured Optical Fiber Cable

Fiber Type Wavelength Attenuation Bandwidth Fiber Count Cable Diameter Installation
OS2 1310 / 1550 nm ≤0.35 / 0.22 dB/km — 2–12 cores 8–9 mm Duct / Aerial / Direct Burial
OM1 850 / 1300 nm ≤3.5 / 2.2 dB/km ≥200 / 200 MHz·km 2–12 cores 8–9 mm Duct / Aerial / Direct Burial
OM2 850 / 1300 nm ≤3.5 / 2.2 dB/km ≥500 / 500 MHz·km 2–12 cores 8–9 mm Duct / Aerial / Direct Burial
OM3 / OM4 850 / 1300 nm ≤3.0 / 3.0 dB/km ≥2000 / 500 MHz·km 2–12 cores 8–9 mm Duct / Aerial / Direct Burial

Downloads

Sản phẩm liên quan

CASITEK GYJFJKY flexible armoured indoor optical fiber cable with tight-buffered fibers, steel armour, aramid yarn and LSZH sheath
FIBERLINK™ – FIBER OPTIC CABLES

GYJFJKY Flexible Armoured Indoor Optical Fiber Cable

Flexible armoured indoor optical fiber cable; supports OS2, OM1, OM2, OM3 and OM4 fibers; tight-buffered construction; steel wire braid or steel tube armour; aramid yarn strength member; LSZH outer sheath; designed for data centers, backbone cabling, industrial fiber networks and harsh indoor environments.

XEM CHI TIẾT

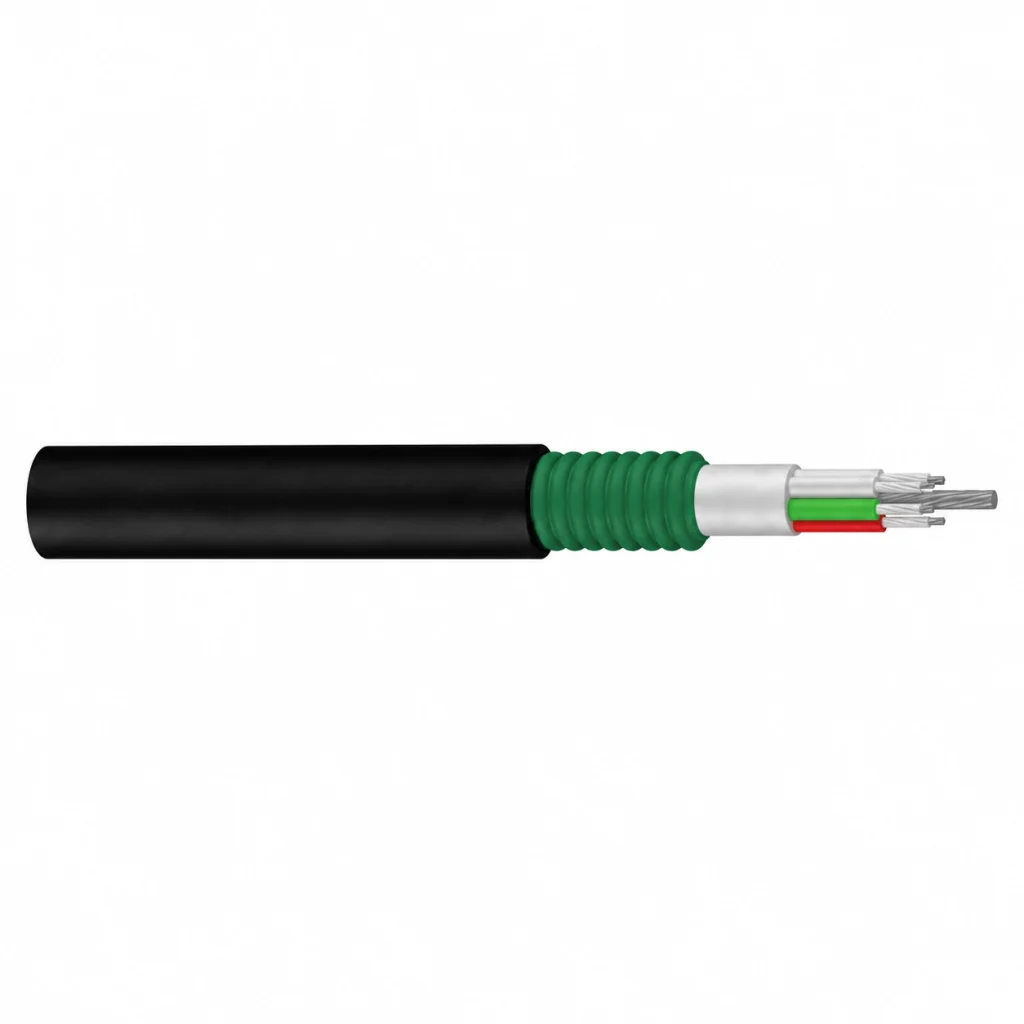

CASITEK GYTS outdoor optical fiber cable with stranded loose tubes, PSP steel armour, central steel strength member and PE sheath
FIBERLINK™ – FIBER OPTIC CABLES

GYTS Steel Armoured Outdoor Optical Fiber Cable

Steel-armoured outdoor optical fiber cable; OS2 single-mode fiber; stranded loose-tube construction; 1–144 cores; central phosphating steel wire strength member; PSP armour; gel or powder water blocking; PE outer sheath; designed for duct, aerial, direct burial and long-distance backbone communication.

XEM CHI TIẾT

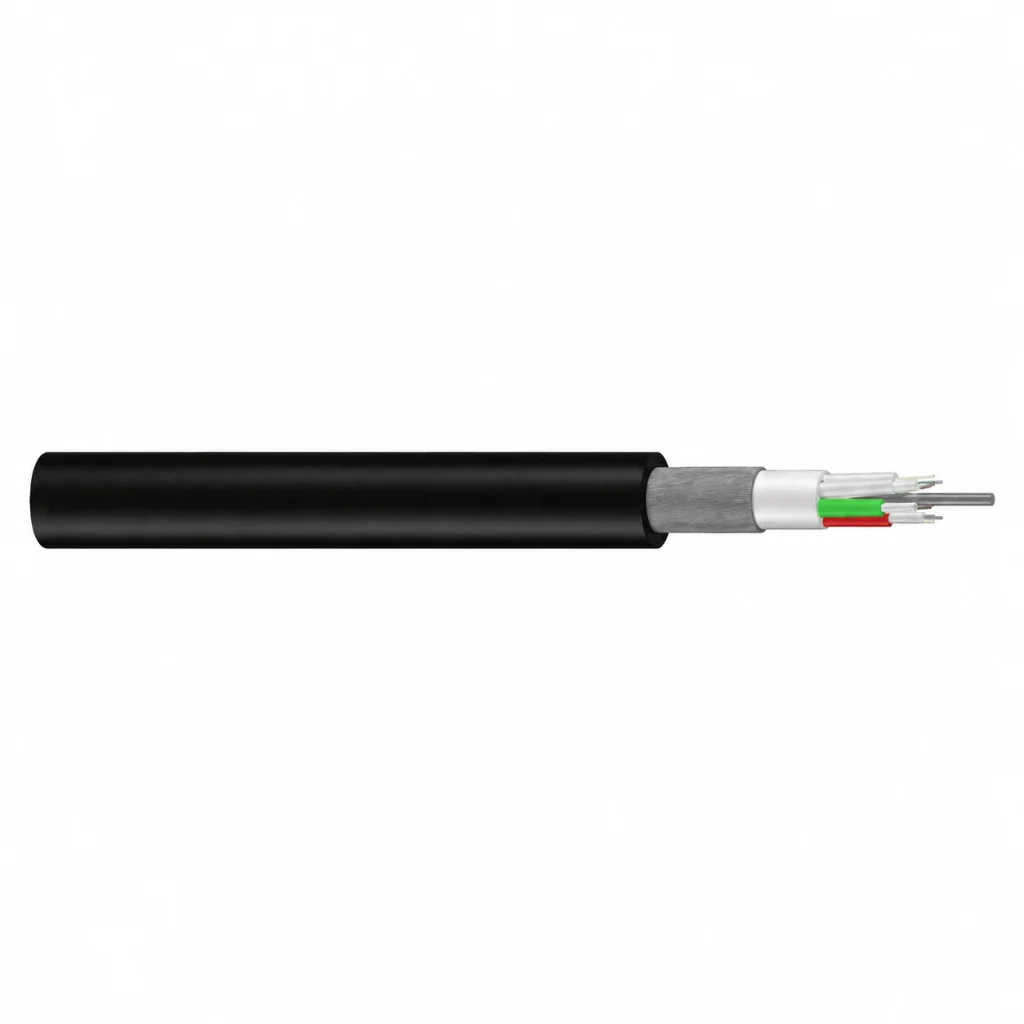

GYTA APL Armoured Outdoor Optical Fiber Cable
