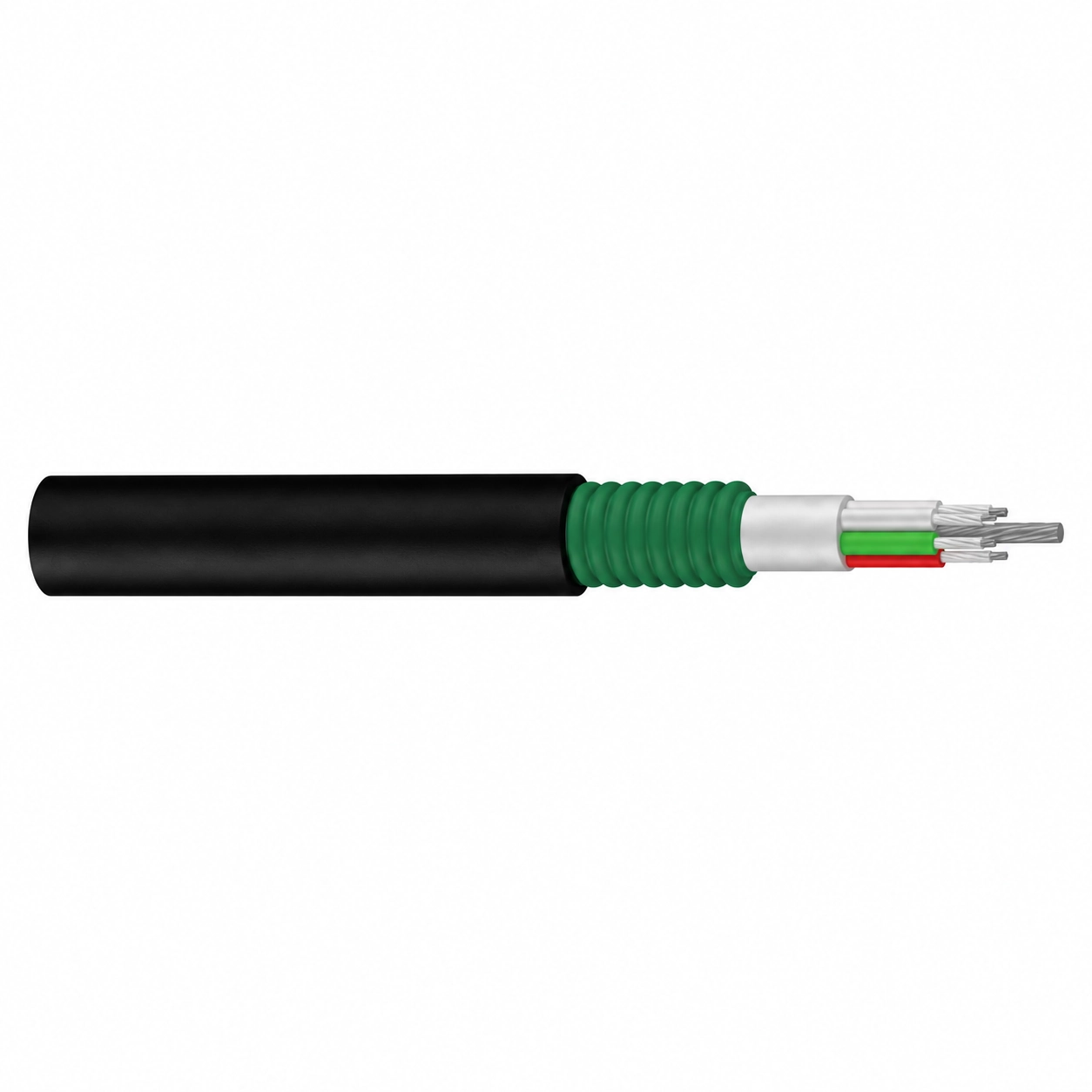

CASITEK GYTS outdoor optical fiber cable with stranded loose tubes, PSP steel armour, central steel strength member and PE sheath
FIBERLINK™

GYTS Steel Armoured Outdoor Optical Fiber Cable

Steel-armoured outdoor optical fiber cable; OS2 single-mode fiber; stranded loose-tube construction; 1–144 cores; central phosphating steel wire strength member; PSP armour; gel or powder water blocking; PE outer sheath; designed for duct, aerial, direct burial and long-distance backbone communication.

PSP Steel Armoured Protection

PSP steel armour provides enhanced mechanical protection

Up to 144 Fiber Cores

High-capacity stranded loose-tube design supporting up to 144 cores

Duct / Aerial / Direct Burial

Suitable for outdoor duct, aerial and direct burial installations

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Cable Type GYTS
Application Outdoor
Fiber Type OS2 Single Mode
Fiber Count 1–144 cores
Structure Stranded Loose Tube
Loose Tube PBT
Strength Member Single Phosphating Steel Wire
Armour PSP
Water Blocking Gel / Powder
Outer Sheath PE
Installation Duct / Aerial / Direct Burial
Standards YD/T 901-2009 / GB/T 9771-2008 / TIA/EIA-598

Available Configuration – GYTS Steel Armoured Outdoor Optical Fiber Cable

Type Fiber Type Fiber Count Cable Diameter Wavelength Attenuation Installation
GYTS OS2 Single Mode 1–144 cores 10–22 mm 1310 / 1550 nm ≤0.35 / 0.22 dB/km Duct / Aerial / Direct Burial

Downloads

Sản phẩm liên quan

CASITEK GYXTW outdoor optical fiber cable with PBT loose tube, PSP light armour, steel wire strength members and PE sheath
FIBERLINK™ – FIBER OPTIC CABLES

GYXTW Center Bundle Light Armoured Optical Fiber Cable

Outdoor center-bundle optical fiber cable; GYXTW loose-tube construction; 2–12 cores; supports OS2, OM1, OM2, OM3 and OM4 fibers; PSP light armour; dual phosphating steel wire strength members; filling compound and water-blocking tape; PE outer sheath; designed for duct, aerial and direct burial installations.

XEM CHI TIẾT

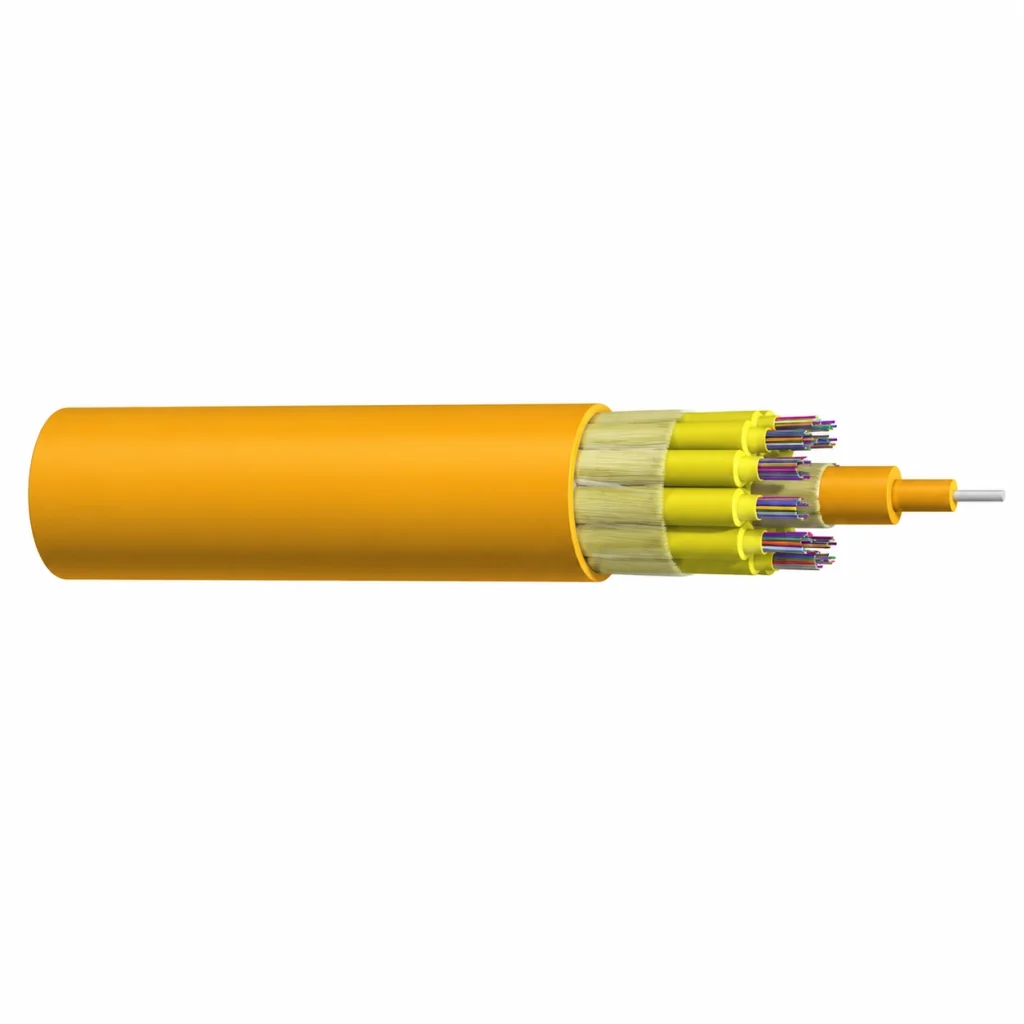

Indoor Multi-Branch Tight-Buffered Optical Fiber Cable
