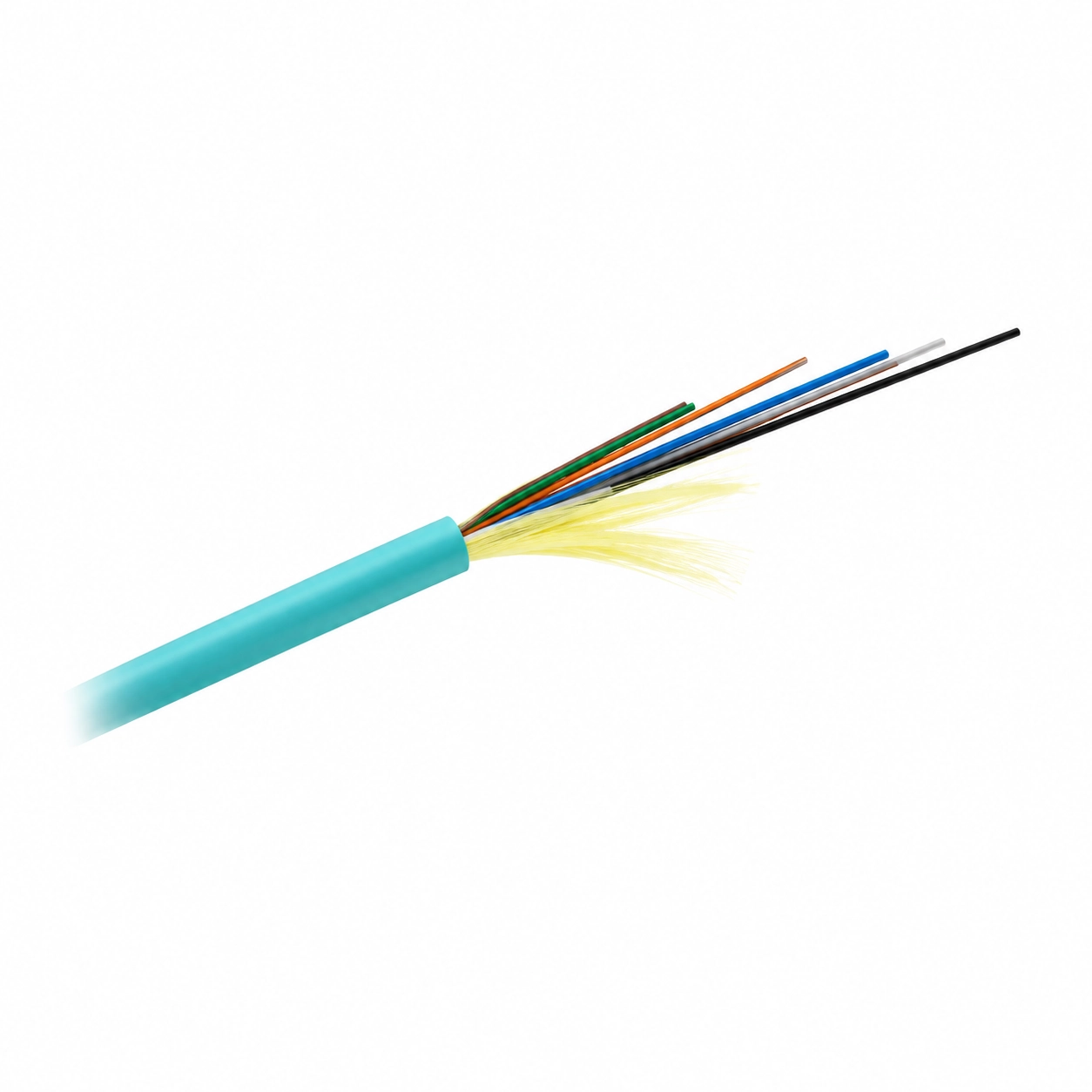

CASITEK GJFJV OM3 OM4 10G indoor tight-buffered optical fiber cable with aqua sheath and aramid yarn strength member
FIBERLINK™

GJFJV OM3 / OM4 10G Indoor Tight-Buffered Optical Fiber Cable

Indoor tight-buffered optical fiber cable; OM3 / OM4 multimode fiber; available in 4, 6, 8 and 12 core configurations; aramid yarn strength member; PVC or LSZH sheath; aqua sheath identification; suitable for indoor cabling, data centers, backbone fiber systems and telecommunication networks.

OM3 / OM4 10G Multimode Fiber

OM3 / OM4 multimode fiber configuration

Tight-Buffered Indoor Design

Tight-buffered construction for flexible and easy indoor installation

4–12 Core Configurations

Available in 4, 6, 8 and 12 core configurations

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Cable Type GJFJV
Application Indoor
Fiber Type OM3 / OM4
Core Count 4 / 6 / 8 / 12 cores
Structure Tight Buffered
Strength Member Aramid Yarn
Sheath PVC / LSZH
Sheath Colour Aqua (MM)
Installation Tension ≤660 N
Operation Tension ≤200 N
Crush Resistance – Short Term ≤1000 N
Crush Resistance – Long Term ≤300 N
Operating Temperature -10°C to +60°C
Standards YD/T 1258-2003 / GB/T 9771-2008 / TIA/EIA-598

Available Configurations – GJFJV OM3 / OM4 10G Indoor Tight-Buffered Optical Fiber Cable

Core Count Fiber Type Aramid Yarn Structure Sheath Sheath Colour Installation Tension Crush Resistance
4 Cores OM3 / OM4 1500 dtex × 8 Tight Buffered PVC / LSZH Aqua ≤660 N ≤1000 N
6 Cores OM3 / OM4 1500 dtex × 10 Tight Buffered PVC / LSZH Aqua ≤660 N ≤1000 N
8 Cores OM3 / OM4 1500 dtex × 12 Tight Buffered PVC / LSZH Aqua ≤660 N ≤1000 N
12 Cores OM3 / OM4 1500 dtex × 14 Tight Buffered PVC / LSZH Aqua ≤660 N ≤1000 N
