FIBERLINK™

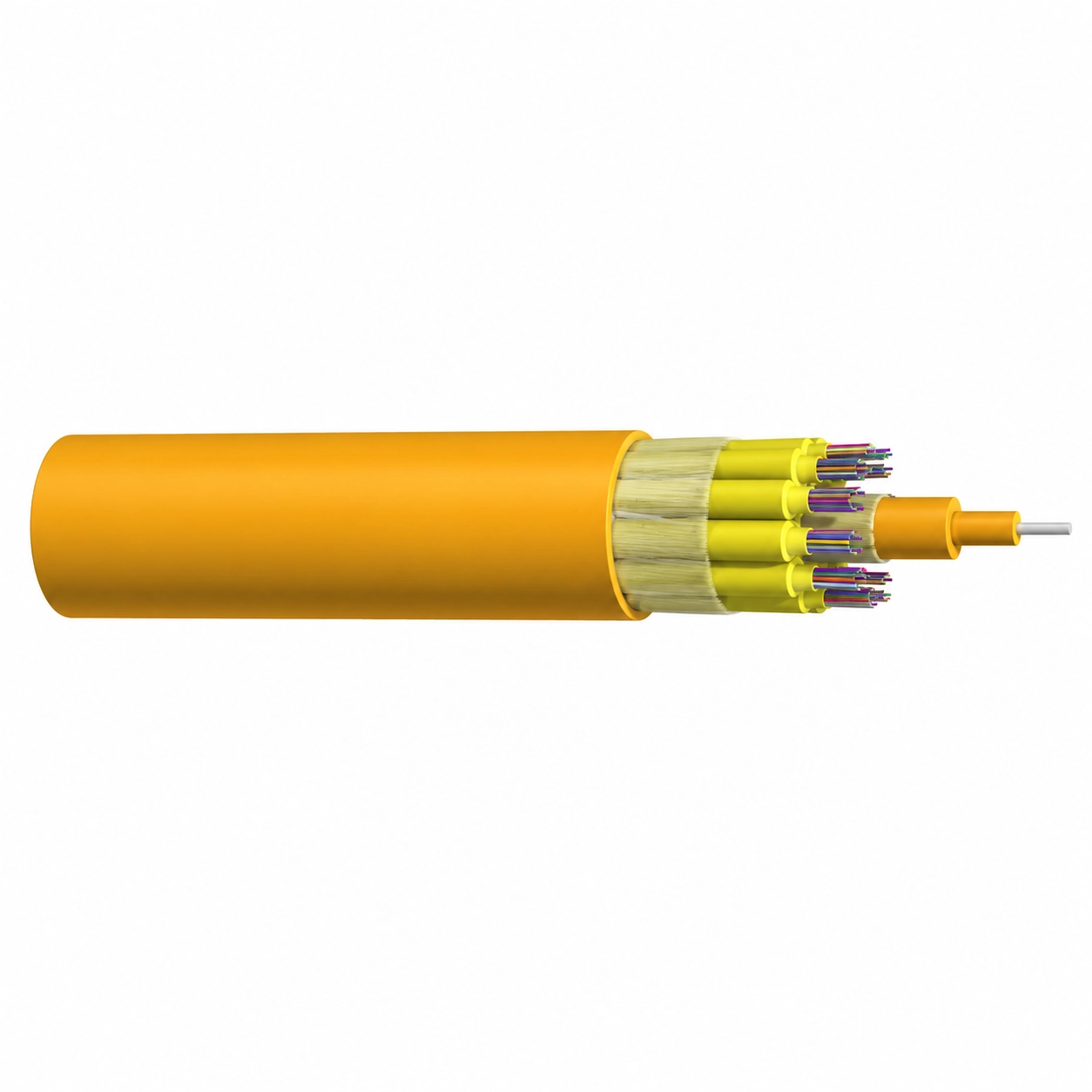

Indoor Multi-Branch Tight-Buffered Optical Fiber Cable
High-density indoor optical fiber cable; multi-branch tight-buffered construction; supports OS2, OM1, OM2, OM3 and OM4 fibers; aramid yarn strength member; integrated rip cord; PVC or LSZH outer sheath; available up to 144 cores for data centers, backbone distribution and high-density fiber systems.
Up to 144 Fiber Cores
High-density fiber capacity for backbone and data center cabling
Multi-Branch Tight-Buffered Design
Multi-branch tight-buffered construction for flexible indoor installation
OS2 / OM1 / OM2 / OM3 / OM4
Supports both single-mode and multimode fiber types
IN STOCK
100% GENUINE
Technical Data
| Parameter | Specification | |
|---|---|---|
| Application | Indoor | |
| Fiber Type | OS2 / OM1 / OM2 / OM3 / OM4 | |
| Structure | Multi-branch tight buffered | |
| Strength Member | Aramid Yarn | |
| Rip Cord | Yes | |
| Outer Sheath | PVC / LSZH | |
| Core Count | Up to 144 cores | |
| OS2 Wavelength | 1310 / 1550 nm | |
| OS2 Attenuation | ≤0.35 / 0.22 dB/km | |
| OM1 Wavelength | 850 / 1300 nm | |
| OM1 Attenuation | ≤3.5 / 2.2 dB/km | |
| OM1 Bandwidth | ≥200 / 200 MHz·km | |
| OM2 Wavelength | 850 / 1300 nm | |
| OM2 Attenuation | ≤3.5 / 2.2 dB/km | |
| OM2 Bandwidth | ≥500 / 1000 MHz·km | |
| OM3 / OM4 Wavelength | 850 / 1300 nm | |
| OM3 / OM4 Attenuation | ≤3.5 / 2.2 dB/km | |
| OM3 / OM4 Bandwidth | ≥2000 / 500 MHz·km | |
| Tensile Strength – Installation | ≤660 N | |
| Tensile Strength – Operation | ≤200 N | |
| Crush Resistance – Short Term | ≤1000 N | |
| Crush Resistance – Long Term | ≤300 N | |
| Standards | YD/T 1258-2003 / GB/T 9771-2008 / TIA/EIA-598 | |
| Applications | Indoor cabling / Data centers / High-density fiber systems / Backbone distribution |
Available Fiber Configurations – Indoor Multi-Branch Tight-Buffered Optical Fiber Cable
| Fiber Type | Wavelength | Attenuation | Bandwidth | Core Count | Outer Sheath |
|---|---|---|---|---|---|
| OS2 | 1310 / 1550 nm | ≤0.35 / 0.22 dB/km | — | Up to 144 cores | PVC / LSZH |
| OM1 | 850 / 1300 nm | ≤3.5 / 2.2 dB/km | ≥200 / 200 MHz·km | Up to 144 cores | PVC / LSZH |
| OM2 | 850 / 1300 nm | ≤3.5 / 2.2 dB/km | ≥500 / 1000 MHz·km | Up to 144 cores | PVC / LSZH |
| OM3 / OM4 | 850 / 1300 nm | ≤3.5 / 2.2 dB/km | ≥2000 / 500 MHz·km | Up to 144 cores | PVC / LSZH |
