FIBERLINK™

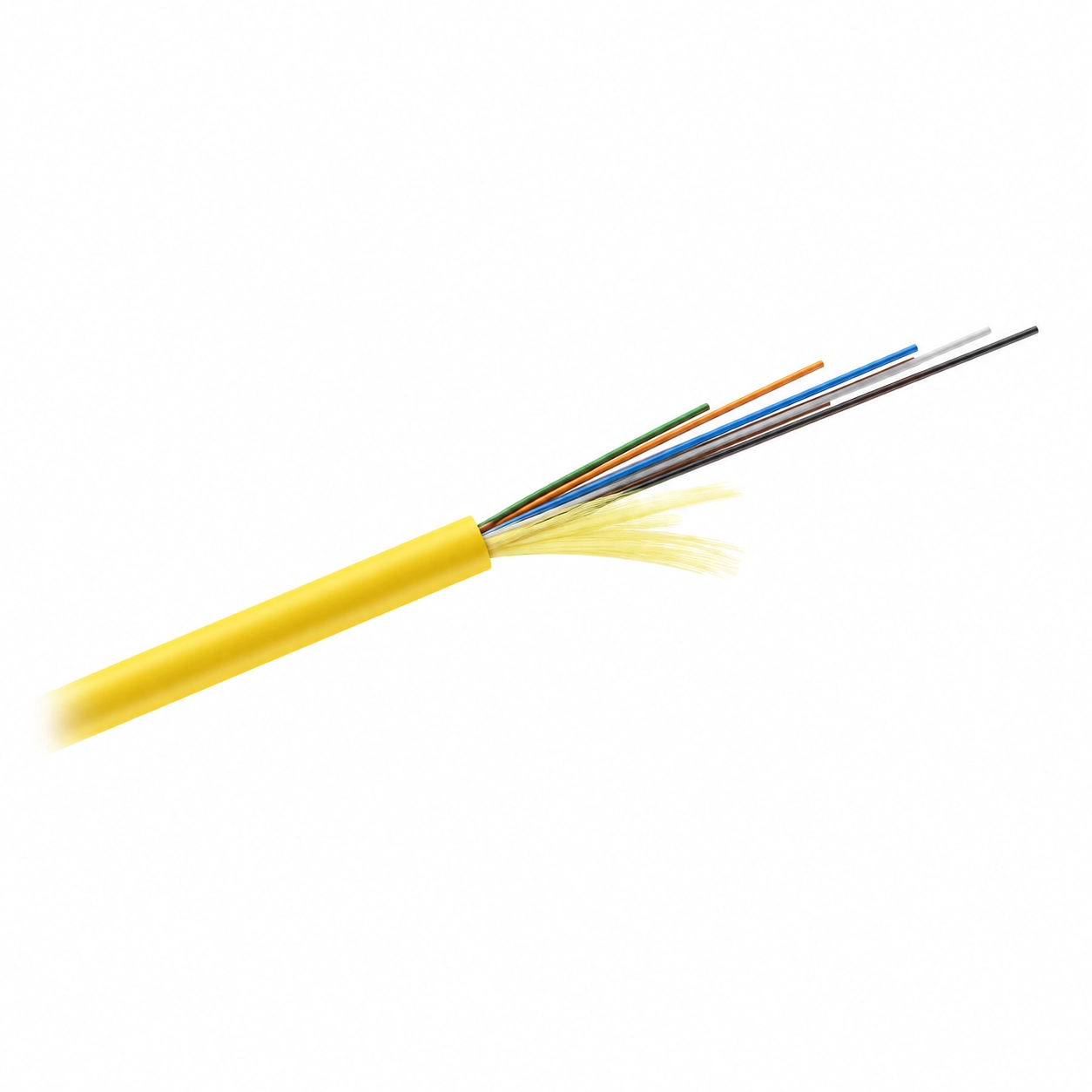

GJFJV OS2 Indoor Tight-Buffered Optical Fiber Cable
Indoor tight-buffered optical fiber cable; OS2 single-mode fiber; available in 4, 6, 8 and 12 core configurations; aramid yarn strength member; PVC or LSZH sheath; yellow sheath identification; suitable for indoor cabling, data centers, backbone fiber systems and telecommunication networks.
OS2 Single-Mode Fiber
OS2 single-mode fiber for backbone and telecommunication links
Tight-Buffered Indoor Design
Tight-buffered construction for flexible and easy indoor installation
4–12 Core Configurations
Available in 4, 6, 8 and 12 core configurations
IN STOCK
100% GENUINE
Technical Data
| Parameter | Specification | |
|---|---|---|
| Cable Type | GJFJV | |
| Application | Indoor | |
| Fiber Type | OS2 | |
| Core Count | 4 / 6 / 8 / 12 cores | |
| Structure | Tight Buffered | |
| Strength Member | Aramid Yarn | |
| Sheath | PVC / LSZH | |
| Sheath Colour | Yellow (SM) | |
| Installation Tension | ≤660 N | |
| Operation Tension | ≤200 N | |
| Crush Resistance – Short Term | ≤1000 N | |
| Crush Resistance – Long Term | ≤300 N | |
| Operating Temperature | -10°C to +60°C | |
| Standards | YD/T 1258-2003 / GB/T 9771-2008 / TIA/EIA-598 |
Available Configurations – GJFJV OS2 Indoor Tight-Buffered Optical Fiber Cable
| Core Count | Fiber Type | Aramid Yarn | Structure | Sheath | Sheath Colour | Installation Tension | Crush Resistance |
|---|---|---|---|---|---|---|---|
| 4 Cores | OS2 Single Mode | 1500 dtex × 8 | Tight Buffered | PVC / LSZH | Yellow | ≤660 N | ≤1000 N |
| 6 Cores | OS2 Single Mode | 1500 dtex × 10 | Tight Buffered | PVC / LSZH | Yellow | ≤660 N | ≤1000 N |
| 8 Cores | OS2 Single Mode | 1500 dtex × 12 | Tight Buffered | PVC / LSZH | Yellow | ≤660 N | ≤1000 N |
| 12 Cores | OS2 Single Mode | 1500 dtex × 14 | Tight Buffered | PVC / LSZH | Yellow | ≤660 N | ≤1000 N |
