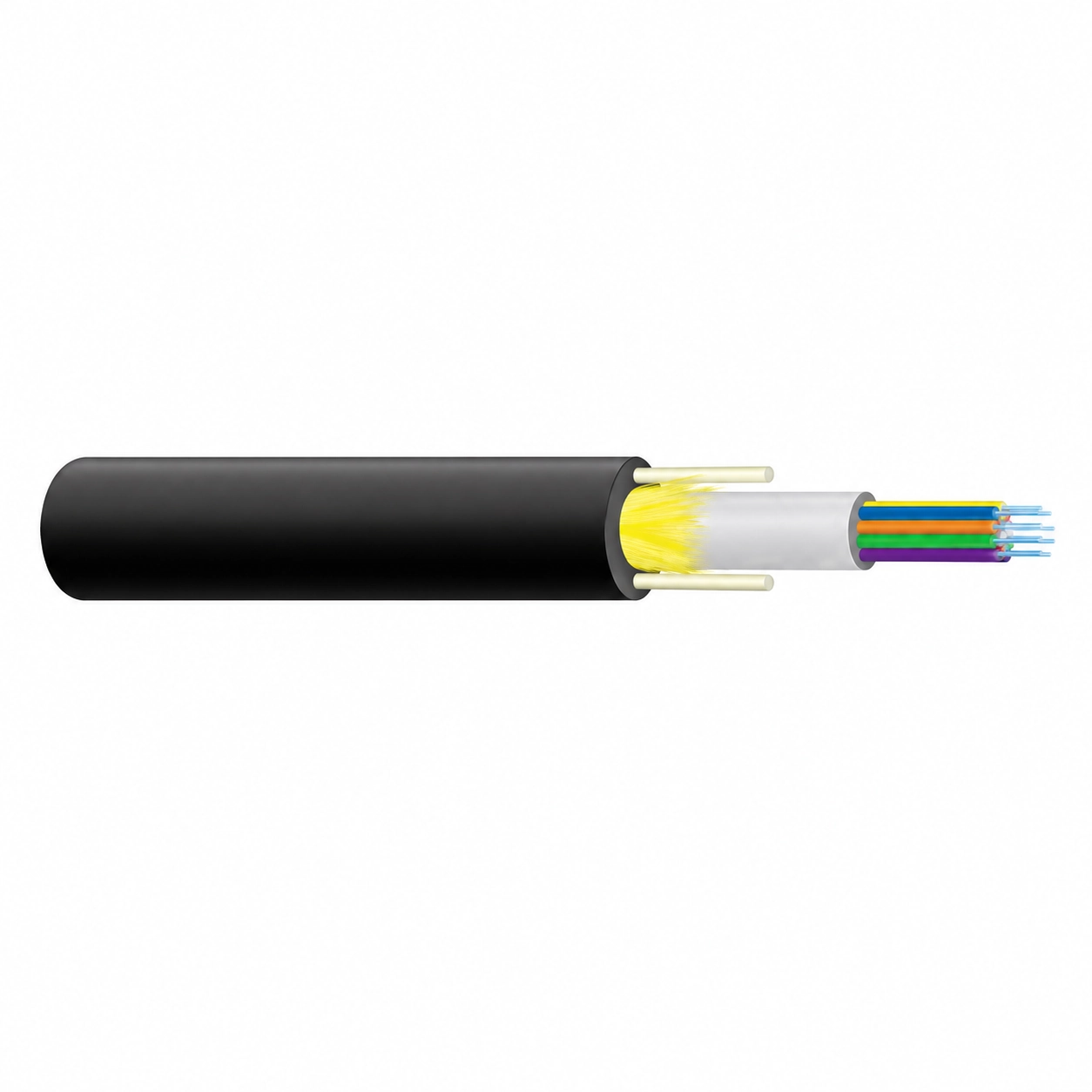

CASITEK GYFXTW outdoor optical fiber cable with non-metallic FRP strength members, PBT loose tube, aramid yarn and PE sheath
FIBERLINK™

GYFXTW Non-Metallic Outdoor Optical Fiber Cable

Lightweight non-metallic outdoor optical fiber cable; OS2 single-mode fiber; 2–24 cores; FRP strength members; PBT loose tube with gel filling; aramid yarn reinforcement; PE outer sheath; compact construction designed for duct installation, outdoor communication networks and long-distance transmission.

Non-Metallic FRP Strength

FRP strength members provide a fully non-metallic support structure

Compact & Lightweight Design

Small cable diameter and low weight simplify outdoor duct routing

Long-Distance Outdoor Transmission

Designed for reliable outdoor communication and long-distance transmission

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Cable Type GYFXTW
Application Outdoor
Fiber Type OS2 Single Mode
Fiber Count 2–24 cores
Strength Member FRP (Non-metallic)
Loose Tube PBT + Gel
Additional Strength Aramid Yarn
Outer Sheath PE
Installation Duct
Tensile Strength ≤1000 N
Crush Resistance ≤1000 N
Standards YD/T 769-2010 / GB/T 9771-2008 / TIA/EIA-598

Available Configurations – GYFXTW Non-Metallic Outdoor Optical Fiber Cable

Type Fiber Count Diameter Weight Bending – Install Bending – Operation Wavelength Attenuation
GYFXTW-2~12B1 2–12 cores 7.5 mm 30 kg/km 20D 10D 1310 / 1550 nm ≤0.35 / 0.22 dB/km
GYFXTW-14~24B1 14–24 cores 8.2 mm 36 kg/km 20D 10D 1310 / 1550 nm ≤0.35 / 0.22 dB/km

Downloads

Sản phẩm liên quan

CASITEK GJFJV OM3 OM4 10G indoor tight-buffered optical fiber cable with aqua sheath and aramid yarn strength member
FIBERLINK™ – FIBER OPTIC CABLES

GJFJV OM3 / OM4 10G Indoor Tight-Buffered Optical Fiber Cable

Indoor tight-buffered optical fiber cable; OM3 / OM4 multimode fiber; available in 4, 6, 8 and 12 core configurations; aramid yarn strength member; PVC or LSZH sheath; aqua sheath identification; suitable for indoor cabling, data centers, backbone fiber systems and telecommunication networks.

XEM CHI TIẾT

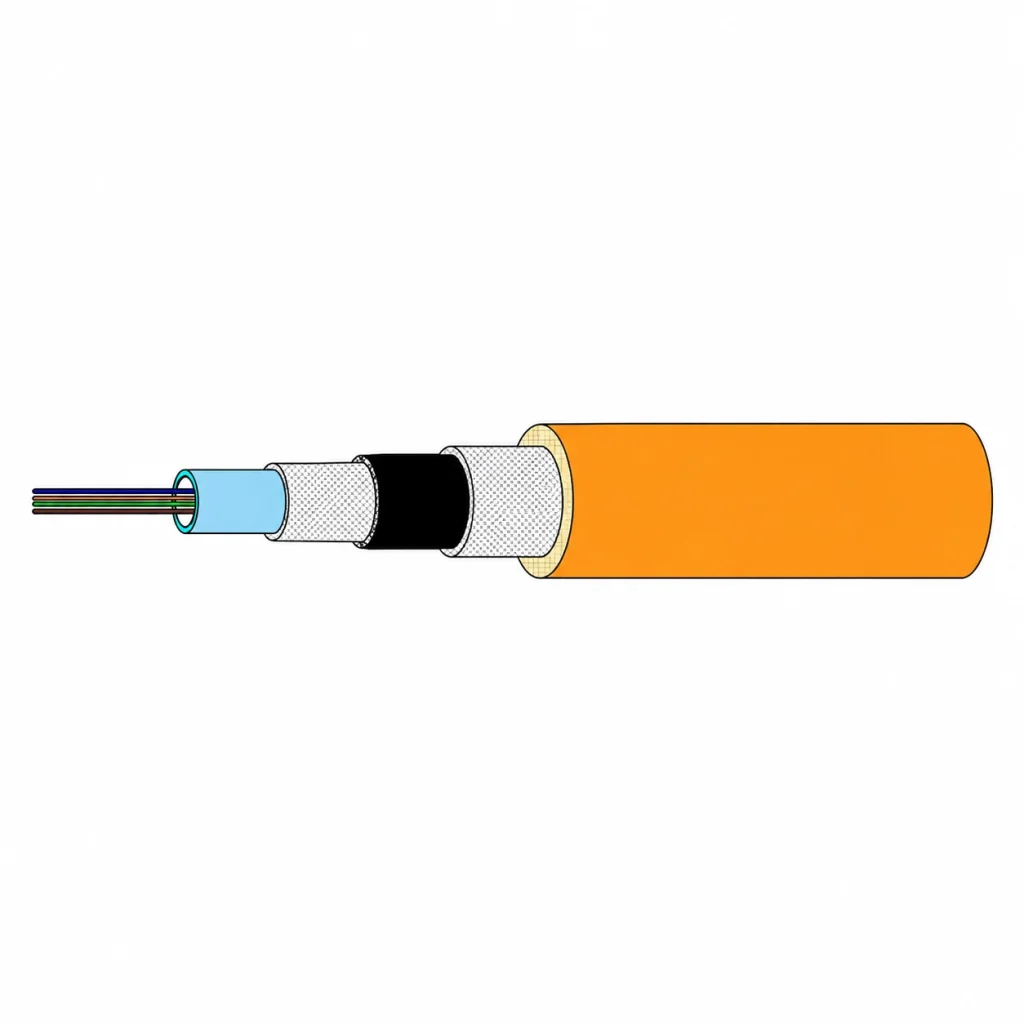

CASITEK GYXTKH6H-4C-SM 4-fiber OS2 indoor outdoor optical fiber cable with LSZH sheath and water-blocked loose tube
FIBERLINK™ – FIBER OPTIC CABLES

GYXTKH6H-4C-SM Indoor/Outdoor LSZH Optical Fiber Cable

4-fiber indoor/outdoor optical fiber cable; OS2 single-mode 9/125 µm; water-blocked loose-tube construction; aramid yarn strength members; LSZH inner and outer sheaths; yellow RAL 1021 outer jacket; CPR Cca s1,d1,a1; designed for backbone cabling, cable ducts, protected outdoor links and DCS cabinet interconnection.

XEM CHI TIẾT
CASITEK GYTS33 GYTA33 underwater optical fiber cable with double steel wire armour, PSP or APL layer and multi-layer PE sheath
FIBERLINK™ – FIBER OPTIC CABLES

GYTS33 / GYTA33 Underwater Optical Fiber Cable

Heavy-duty underwater optical fiber cable; OS2 single-mode fiber; stranded loose-tube construction; central metallic strength member; double steel wire armour with PSP or APL laminated layer; filling compound and water-blocking tape; multi-layer PE sheath; designed for sea, river, lake, port, offshore and long-distance backbone installations.

XEM CHI TIẾT

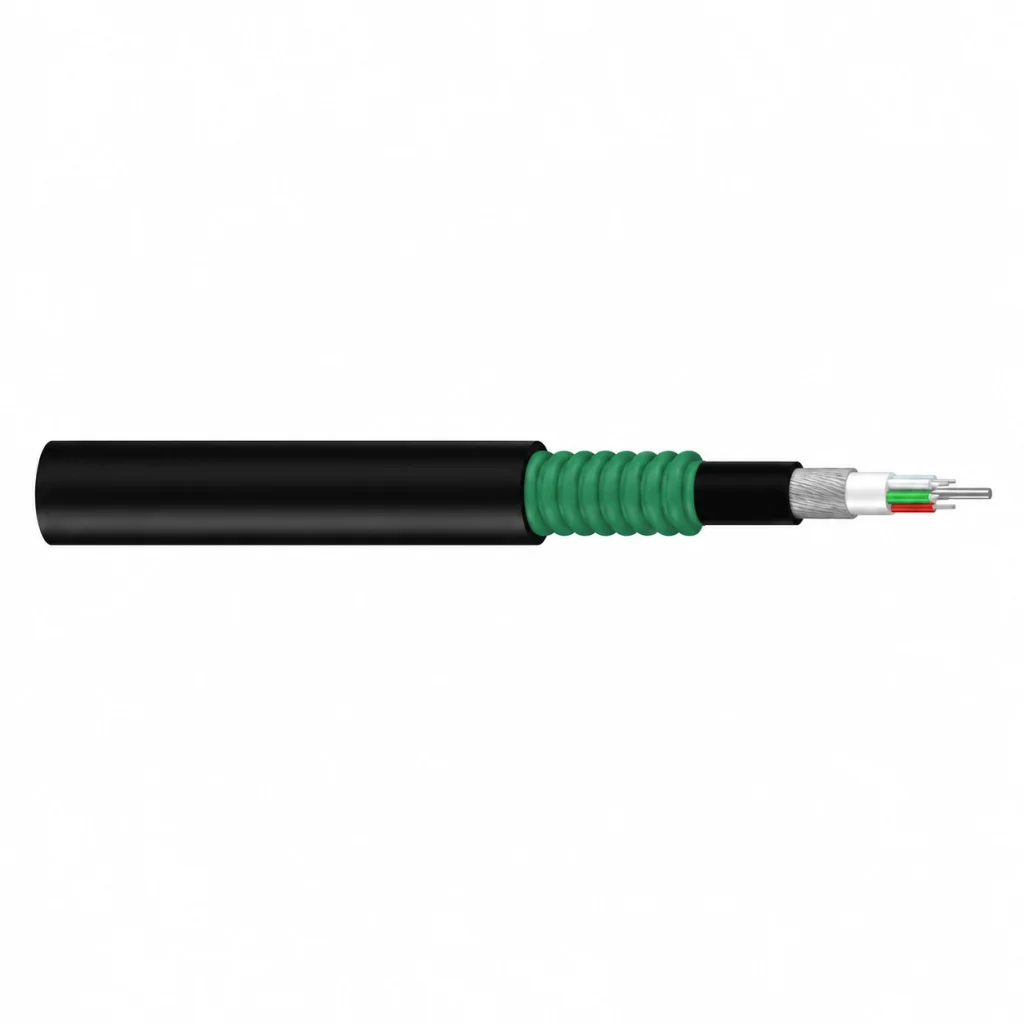

CASITEK GYTA53 outdoor optical fiber cable with stranded loose tubes, APL and PSP double-layer armour, steel strength member and PE sheath
