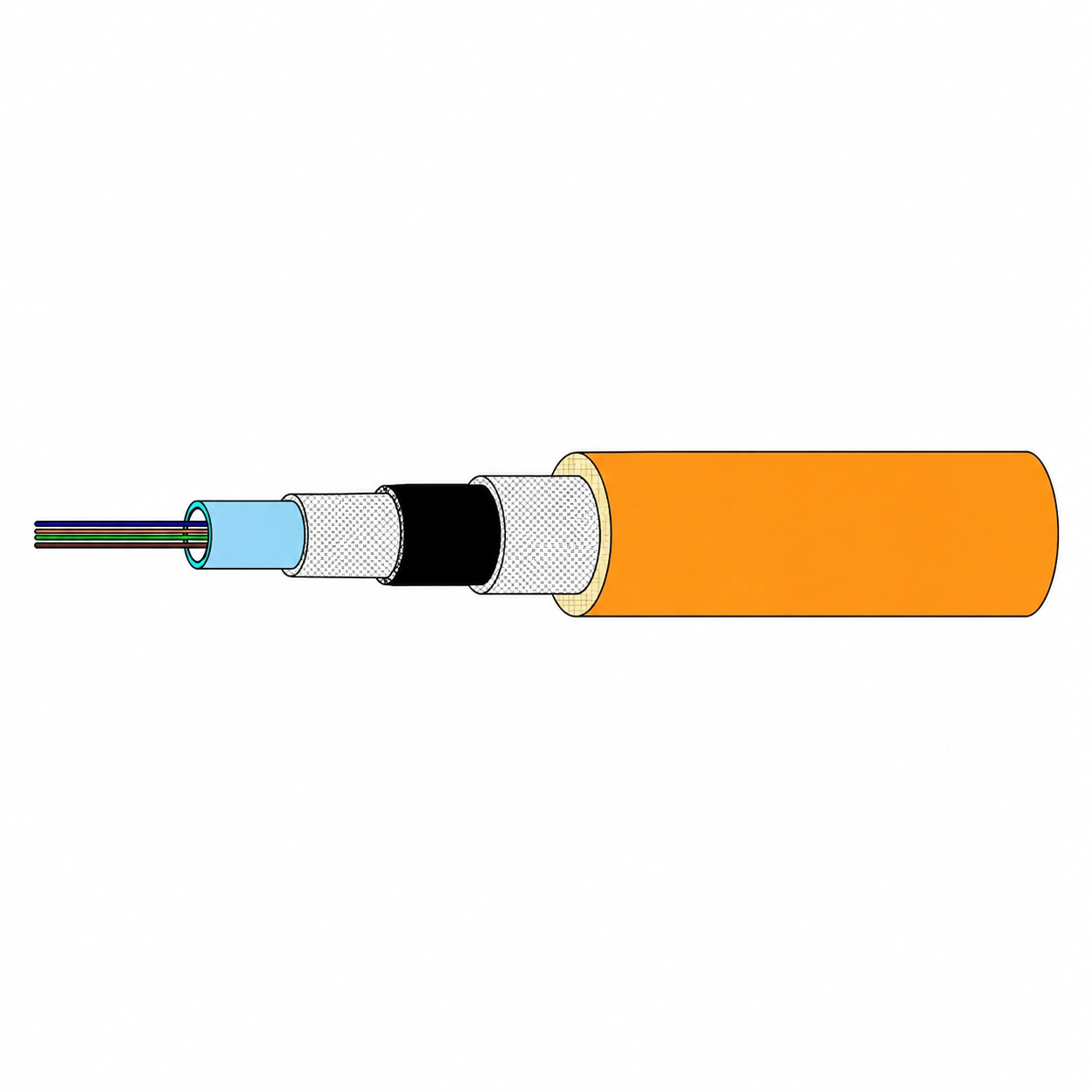

CASITEK GYXTKH6H-4C-SM 4-fiber OS2 indoor outdoor optical fiber cable with LSZH sheath and water-blocked loose tube
FIBERLINK™

GYXTKH6H-4C-SM Indoor/Outdoor LSZH Optical Fiber Cable

4-fiber indoor/outdoor optical fiber cable; OS2 single-mode 9/125 µm; water-blocked loose-tube construction; aramid yarn strength members; LSZH inner and outer sheaths; yellow RAL 1021 outer jacket; CPR Cca s1,d1,a1; designed for backbone cabling, cable ducts, protected outdoor links and DCS cabinet interconnection.

Indoor / Outdoor LSZH Design

LSZH inner and outer sheaths for indoor and protected outdoor installation

Water-Blocked Loose Tube

Water-blocking glass yarns protect the loose-tube fiber construction

CPR Cca s1,d1,a1

CPR Cca s1,d1,a1 with low-smoke and halogen-free performance

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Part No. GYXTKH6H-4C-SM
Application Indoor / Protected Outdoor
Fiber Type OS2 Single Mode, 9/125 µm
Fiber Count 4 fibers
Tube Structure Loose Tube, Water-Blocked
Water Blocking Glass Yarns
Strength Member Aramid Yarns
Inner Sheath LSZH
Outer Sheath LSZH, Yellow RAL 1021
Outer Diameter Approx. 5.6 mm
Operating Temperature -20°C to +60°C
Reaction to Fire CPR Cca s1,d1,a1

Available Configuration – GYXTKH6H-4C-SM Indoor/Outdoor LSZH Optical Fiber Cable

Part No. Fiber Type Fiber Count Outer Diameter Weight Max Pulling Load Min. Bending Radius Crush Resistance Drum Length
GYXTKH6H-4C-SM OS2 Single Mode 9/125 µm 4 fibers Approx. 5.6 mm ≈ 38 kg/km 800 N 20D Min. 1000 N / 100 mm 4000 m / reel
