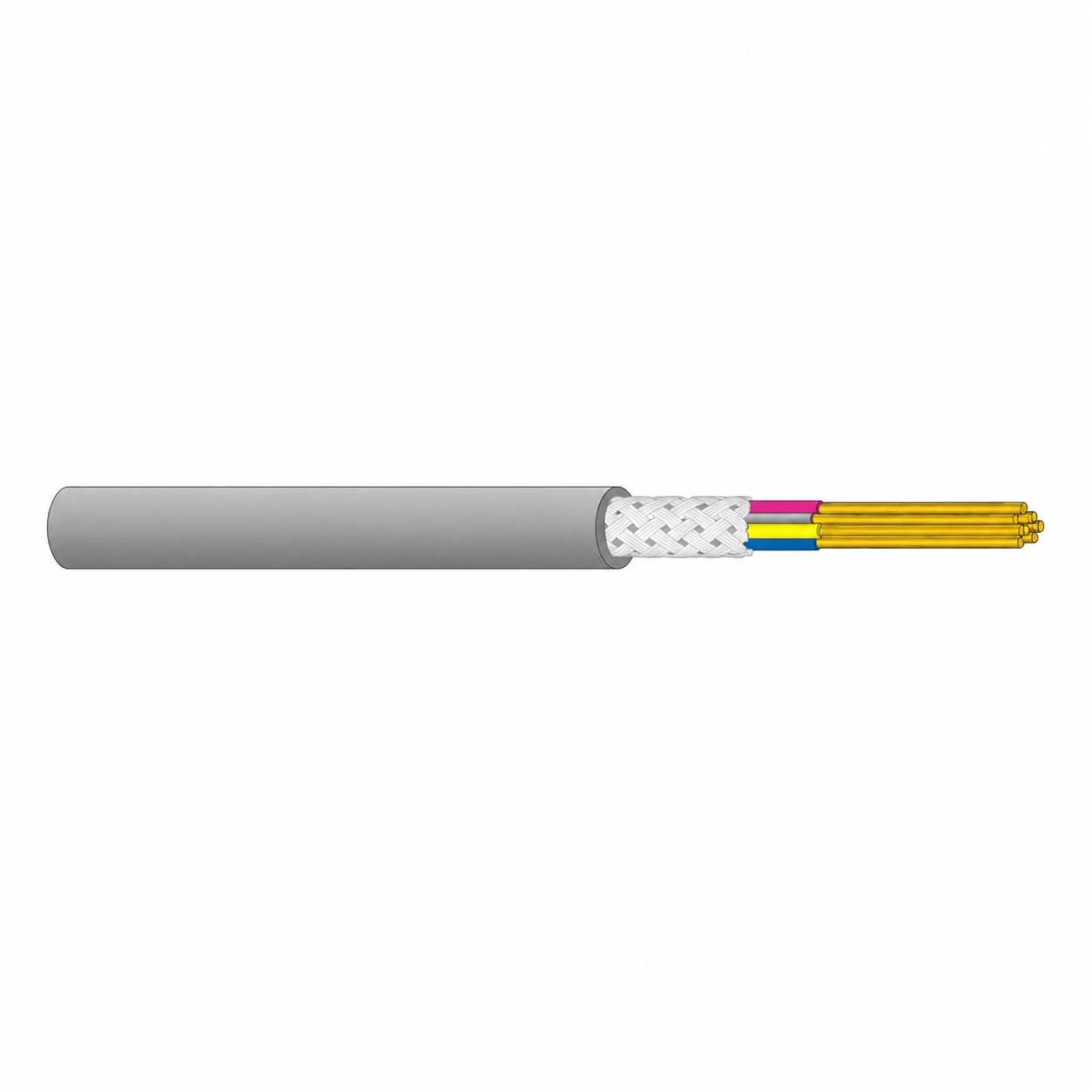

CONTROLINK™

LiHCH LSZH Shielded Control Cable

Flexible LSZH shielded control cable; U₀/U: 250/250 V; Class 5 oxygen-free copper conductors; PE insulation; tinned copper wire braid shield; LSZH outer sheath; colored core identification; designed for industrial automation, electronics and process control systems requiring EMI protection and low-smoke halogen-free performance.

Low Smoke Zero Halogen

LSZH sheath for low smoke and halogen-free performance

Tinned Copper Braid Shield

Tinned copper wire braid for high-efficiency EMI protection

Class 5 Flexible Conductors

Flexible Class 5 oxygen-free copper conductors

Yêu cầu báo giá

IN STOCK 100% GENUINE

Technical Data

Parameter	Specification
Rated Voltage	250/250 V
Test Voltage	1200 V
Conductor	Class 5 oxygen-free copper
Insulation	PE
Core Identification	Colored cores
Screen	Tinned Copper Wire Braid (TC)
Outer Sheath	LSZH
Temperature Range	-15°C to +70°C
Flame Retardant	IEC 60332-1
Halogen Free	IEC 60754
EMI Shielding	High Efficiency
Standards	VDE 0812 / DIN 47100 / IEC 60332-1 / IEC 60754 / RoHS
Applications	Industrial automation / Electronics / Process control / Public buildings / EMI-sensitive environments

Available Articles – LiHCH LSZH Shielded Control Cable

Article No.	Size	Cores	Conductor	Insulation	Sheath	Screen	Outer Diameter	Max DCR
05220214	0.14 mm²	2	12/0.12	0.3 mm	0.6 mm	TC Braided	4 mm	148
05220314	0.14 mm²	3	12/0.12	0.3 mm	0.6 mm	TC Braided	4.2 mm	148
05220414	0.14 mm²	4	12/0.12	0.3 mm	0.6 mm	TC Braided	4.5 mm	148
05220514	0.14 mm²	5	12/0.12	0.3 mm	0.6 mm	TC Braided	4.8 mm	148
05220714	0.14 mm²	7	12/0.12	0.3 mm	0.6 mm	TC Braided	5.1 mm	148
05220814	0.14 mm²	8	12/0.12	0.3 mm	0.6 mm	TC Braided	5.4 mm	148
05221014	0.14 mm²	10	12/0.12	0.3 mm	0.6 mm	TC Braided	6.2 mm	148
05221214	0.14 mm²	12	12/0.12	0.3 mm	0.7 mm	TC Braided	6.6 mm	148
05221414	0.14 mm²	14	12/0.12	0.3 mm	0.7 mm	TC Braided	6.9 mm	148
05220225	0.25 mm²	2	14/0.15	0.3 mm	0.6 mm	TC Braided	4.4 mm	79.9
05220325	0.25 mm²	3	14/0.15	0.3 mm	0.6 mm	TC Braided	4.7 mm	79.9
05220425	0.25 mm²	4	14/0.15	0.3 mm	0.6 mm	TC Braided	5 mm	79.9
05220525	0.25 mm²	5	14/0.15	0.3 mm	0.6 mm	TC Braided	5.3 mm	79.9
05220725	0.25 mm²	7	14/0.15	0.3 mm	0.6 mm	TC Braided	5.7 mm	79.9
05220825	0.25 mm²	8	14/0.15	0.3 mm	0.6 mm	TC Braided	6.1 mm	79.9
05221025	0.25 mm²	10	14/0.15	0.3 mm	0.7 mm	TC Braided	7.2 mm	79.9
05221225	0.25 mm²	12	14/0.15	0.3 mm	0.7 mm	TC Braided	7.5 mm	79.9
05221425	0.25 mm²	14	14/0.15	0.3 mm	0.7 mm	TC Braided	7.8 mm	79.9
05220234	0.34 mm²	2	20/0.15	0.3 mm	0.6 mm	TC Braided	4.6 mm	57
05220334	0.34 mm²	3	20/0.15	0.3 mm	0.6 mm	TC Braided	4.9 mm	57
05220434	0.34 mm²	4	20/0.15	0.3 mm	0.6 mm	TC Braided	5.2 mm	57
05220534	0.34 mm²	5	20/0.15	0.3 mm	0.6 mm	TC Braided	5.6 mm	57
05220734	0.34 mm²	7	20/0.15	0.3 mm	0.6 mm	TC Braided	6 mm	57
05220834	0.34 mm²	8	20/0.15	0.3 mm	0.6 mm	TC Braided	6.4 mm	57
05221034	0.34 mm²	10	20/0.15	0.3 mm	0.7 mm	TC Braided	7.6 mm	57
05221234	0.34 mm²	12	20/0.15	0.3 mm	0.7 mm	TC Braided	7.9 mm	57
05221434	0.34 mm²	14	20/0.15	0.3 mm	0.7 mm	TC Braided	8.2 mm	57
05220250	0.5 mm²	2	16/0.20	0.3 mm	0.6 mm	TC Braided	4.9 mm	39
05220350	0.5 mm²	3	16/0.20	0.3 mm	0.6 mm	TC Braided	5.2 mm	39
05220450	0.5 mm²	4	16/0.20	0.3 mm	0.6 mm	TC Braided	5.6 mm	39
05220550	0.5 mm²	5	16/0.20	0.3 mm	0.6 mm	TC Braided	6 mm	39
05220750	0.5 mm²	7	16/0.20	0.3 mm	0.6 mm	TC Braided	6.5 mm	39
05220850	0.5 mm²	8	16/0.20	0.3 mm	0.7 mm	TC Braided	7.1 mm	39
05221050	0.5 mm²	10	16/0.20	0.3 mm	0.7 mm	TC Braided	8.2 mm	39
05221250	0.5 mm²	12	16/0.20	0.3 mm	0.7 mm	TC Braided	8.7 mm	39
05221450	0.5 mm²	14	16/0.20	0.3 mm	0.7 mm	TC Braided	9.1 mm	39
05220275	0.75 mm²	2	24/0.20	0.4 mm	0.6 mm	TC Braided	5.8 mm	26
05220375	0.75 mm²	3	24/0.20	0.4 mm	0.6 mm	TC Braided	6.2 mm	26
05220475	0.75 mm²	4	24/0.20	0.4 mm	0.6 mm	TC Braided	6.7 mm	26
05220575	0.75 mm²	5	24/0.20	0.4 mm	0.7 mm	TC Braided	7.2 mm	26
05220775	0.75 mm²	7	24/0.20	0.4 mm	0.7 mm	TC Braided	7.8 mm	26
05220875	0.75 mm²	8	24/0.20	0.4 mm	0.7 mm	TC Braided	8.8 mm	26
05221075	0.75 mm²	10	24/0.20	0.4 mm	0.8 mm	TC Braided	10.4 mm	26
05221275	0.75 mm²	12	24/0.20	0.4 mm	0.8 mm	TC Braided	10.8 mm	26
05221475	0.75 mm²	14	24/0.20	0.4 mm	0.9 mm	TC Braided	11.5 mm	26
05220210	1.0 mm²	2	32/0.20	0.5 mm	0.6 mm	TC Braided	6.4 mm	19.5
05220310	1.0 mm²	3	32/0.20	0.5 mm	0.6 mm	TC Braided	6.9 mm	19.5
05220410	1.0 mm²	4	32/0.20	0.5 mm	0.7 mm	TC Braided	7.6 mm	19.5
05220510	1.0 mm²	5	32/0.20	0.5 mm	0.7 mm	TC Braided	8.2 mm	19.5
05220710	1.0 mm²	7	32/0.20	0.5 mm	0.9 mm	TC Braided	9.5 mm	19.5
05220215	1.5 mm²	2	30/0.25	0.5 mm	0.6 mm	TC Braided	7 mm	13.3
05220315	1.5 mm²	3	30/0.25	0.5 mm	0.7 mm	TC Braided	7.7 mm	13.3
05220415	1.5 mm²	4	30/0.25	0.5 mm	0.7 mm	TC Braided	8.3 mm	13.3
05220515	1.5 mm²	5	30/0.25	0.5 mm	0.8 mm	TC Braided	9.4 mm	13.3
05220715	1.5 mm²	7	30/0.25	0.5 mm	1 mm	TC Braided	10.6 mm	13.3
