POWERLINK™

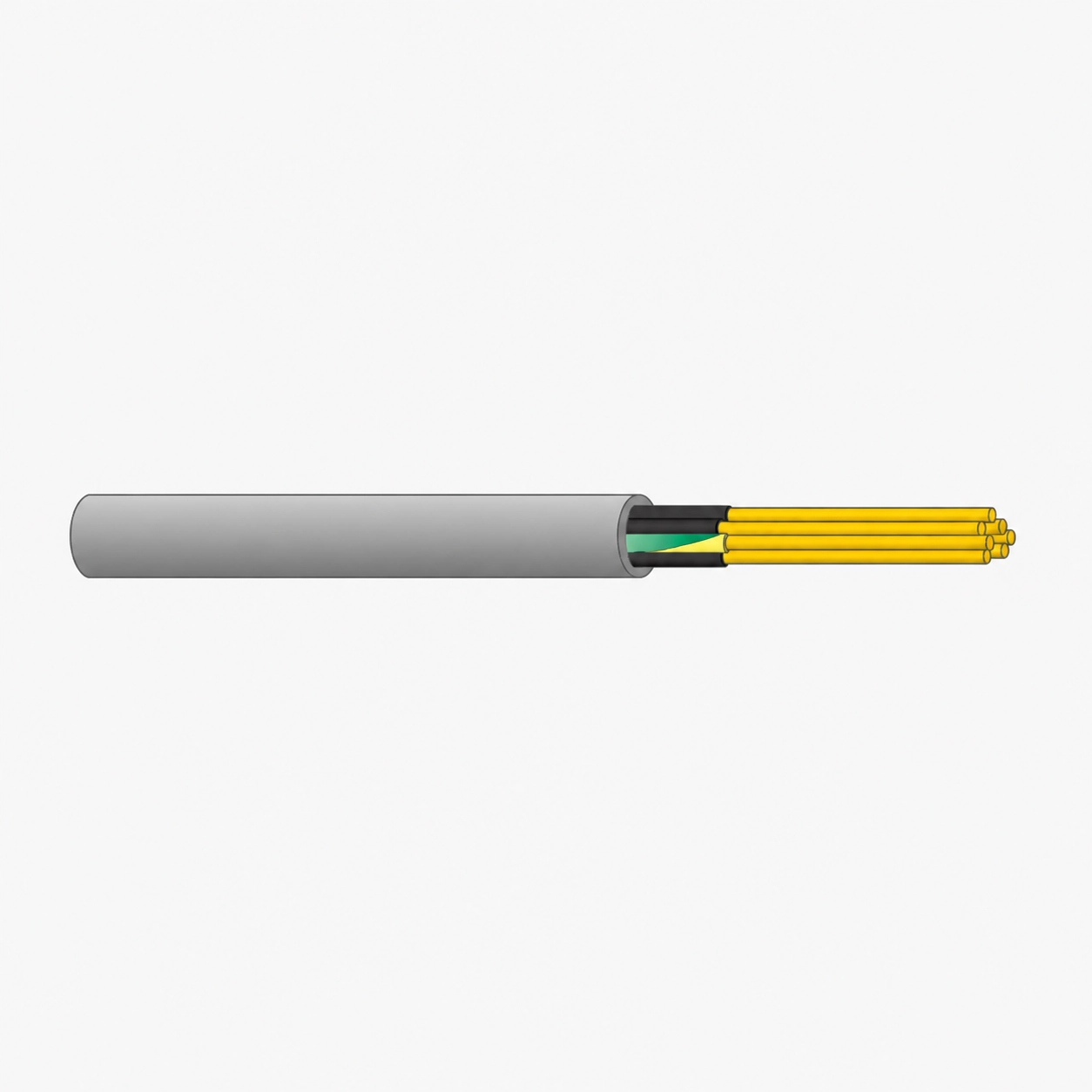

YY Control Cable – PVC / LSZH

Flexible industrial control cable; U₀/U: 300/500 V; Class 5 copper conductors; PVC or LSZH insulation and outer sheath; black numbered cores with green/yellow earth core; grey sheath; designed for industrial automation, control panels and signal transmission.

Class 5 Flexible Conductors

Flexible Class 5 copper conductors

PVC / LSZH Options

Available with PVC or LSZH insulation and sheath

Numbered Multi-Core Design

Black numbered cores with green/yellow earth core

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Rated Voltage 300/500 V
Conductor Class 5 copper
Insulation PVC / LSZH
Core Identification Black cores with white numbering
Earth Core Green/Yellow
Outer Sheath PVC / LSZH
Sheath Colour Grey
Temperature Range -15°C to +70°C
Flame Retardant IEC 60332-1
Bending Performance Flexible
Standards BS 6500 / BS EN 60228 / IEC 60332-1 / RoHS
Applications Industrial automation / Control panels / Signal transmission / Indoor fixed installation

Available Articles – YY Control Cable – PVC / LSZH

Article No. Type Size Cores Outer Diameter Max DCR
05010205 PVC 0.5 mm² 2 4.8 mm 39
05020205 LSZH 0.5 mm² 2 4.8 mm 39
05010305 PVC 0.5 mm² 3 5.1 mm 39
05020305 LSZH 0.5 mm² 3 5.1 mm 39
05010405 PVC 0.5 mm² 4 5.5 mm 39
05020405 LSZH 0.5 mm² 4 5.5 mm 39
05010505 PVC 0.5 mm² 5 6.2 mm 39
05020505 LSZH 0.5 mm² 5 6.2 mm 39
05010705 PVC 0.5 mm² 7 6.7 mm 39
05020705 LSZH 0.5 mm² 7 6.7 mm 39
05010805 PVC 0.5 mm² 8 7.2 mm 39
05020805 LSZH 0.5 mm² 8 7.2 mm 39
05011005 PVC 0.5 mm² 10 8.6 mm 39
05021005 LSZH 0.5 mm² 10 8.6 mm 39
05011205 PVC 0.5 mm² 12 9.1 mm 39
05021205 LSZH 0.5 mm² 12 9.1 mm 39
05010207 PVC 0.75 mm² 2 5.2 mm 26
05020207 LSZH 0.75 mm² 2 5.2 mm 26
05010307 PVC 0.75 mm² 3 5.5 mm 26
05020307 LSZH 0.75 mm² 3 5.5 mm 26
05010407 PVC 0.75 mm² 4 6.2 mm 26
05020407 LSZH 0.75 mm² 4 6.2 mm 26
05010507 PVC 0.75 mm² 5 6.7 mm 26
05020507 LSZH 0.75 mm² 5 6.7 mm 26
05010707 PVC 0.75 mm² 7 7.5 mm 26
05020707 LSZH 0.75 mm² 7 7.5 mm 26
05010807 PVC 0.75 mm² 8 8.1 mm 26
05020807 LSZH 0.75 mm² 8 8.1 mm 26
05011007 PVC 0.75 mm² 10 9.4 mm 26
05021007 LSZH 0.75 mm² 10 9.4 mm 26
05011207 PVC 0.75 mm² 12 10.0 mm 26
05021207 LSZH 0.75 mm² 12 10.0 mm 26
05011607 PVC 0.75 mm² 16 11.2 mm 26
05021607 LSZH 0.75 mm² 16 11.2 mm 26
05010210 PVC 1.0 mm² 2 5.6 mm 19.5
05020210 LSZH 1.0 mm² 2 5.6 mm 19.5
05010310 PVC 1.0 mm² 3 6.2 mm 19.5
05020310 LSZH 1.0 mm² 3 6.2 mm 19.5
05010410 PVC 1.0 mm² 4 6.7 mm 19.5
05020410 LSZH 1.0 mm² 4 6.7 mm 19.5
05010510 PVC 1.0 mm² 5 7.5 mm 19.5
05020510 LSZH 1.0 mm² 5 7.5 mm 19.5
05010710 PVC 1.0 mm² 7 8.1 mm 19.5
05020710 LSZH 1.0 mm² 7 8.1 mm 19.5
05010810 PVC 1.0 mm² 8 9.0 mm 19.5
05020810 LSZH 1.0 mm² 8 9.0 mm 19.5
05011010 PVC 1.0 mm² 10 10.4 mm 19.5
05021010 LSZH 1.0 mm² 10 10.4 mm 19.5
05011210 PVC 1.0 mm² 12 10.9 mm 19.5
05021210 LSZH 1.0 mm² 12 10.9 mm 19.5
05011610 PVC 1.0 mm² 16 12.1 mm 19.5
05021610 LSZH 1.0 mm² 16 12.1 mm 19.5
05010215 PVC 1.5 mm² 2 6.4 mm 13.3
05020215 LSZH 1.5 mm² 2 6.4 mm 13.3
05010315 PVC 1.5 mm² 3 6.8 mm 13.3
05020315 LSZH 1.5 mm² 3 6.8 mm 13.3
05010415 PVC 1.5 mm² 4 7.6 mm 13.3
05020415 LSZH 1.5 mm² 4 7.6 mm 13.3
05010515 PVC 1.5 mm² 5 8.3 mm 13.3
05020515 LSZH 1.5 mm² 5 8.3 mm 13.3
05010715 PVC 1.5 mm² 7 9.2 mm 13.3
05020715 LSZH 1.5 mm² 7 9.2 mm 13.3
05010815 PVC 1.5 mm² 8 10.0 mm 13.3
05020815 LSZH 1.5 mm² 8 10.0 mm 13.3
05011015 PVC 1.5 mm² 10 11.8 mm 13.3
05021015 LSZH 1.5 mm² 10 11.8 mm 13.3
05011215 PVC 1.5 mm² 12 12.4 mm 13.3
05021215 LSZH 1.5 mm² 12 12.4 mm 13.3
05010225 PVC 2.5 mm² 2 7.6 mm 7.98
05020225 LSZH 2.5 mm² 2 7.6 mm 7.98
05010325 PVC 2.5 mm² 3 8.3 mm 7.98
05020325 LSZH 2.5 mm² 3 8.3 mm 7.98
05010425 PVC 2.5 mm² 4 9.3 mm 7.98
05020425 LSZH 2.5 mm² 4 9.3 mm 7.98
05010525 PVC 2.5 mm² 5 10.3 mm 7.98
05020525 LSZH 2.5 mm² 5 10.3 mm 7.98
05010725 PVC 2.5 mm² 7 11.2 mm 7.98
05020725 LSZH 2.5 mm² 7 11.2 mm 7.98
05010825 PVC 2.5 mm² 8 11.8 mm 7.98
05020825 LSZH 2.5 mm² 8 11.8 mm 7.98
05011025 PVC 2.5 mm² 10 14.0 mm 7.98
05021025 LSZH 2.5 mm² 10 14.0 mm 7.98
05011225 PVC 2.5 mm² 12 14.6 mm 7.98
05021225 LSZH 2.5 mm² 12 14.6 mm 7.98
05011625 PVC 2.5 mm² 16 16.3 mm 7.98
05021625 LSZH 2.5 mm² 16 16.3 mm 7.98
05010340 PVC 4.0 mm² 3 10.4 mm 4.95
05020340 LSZH 4.0 mm² 3 10.4 mm 4.95
05010440 PVC 4.0 mm² 4 11.4 mm 4.95
05020440 LSZH 4.0 mm² 4 11.4 mm 4.95
05010540 PVC 4.0 mm² 5 12.7 mm 4.95
05020540 LSZH 4.0 mm² 5 12.7 mm 4.95
05010740 PVC 4.0 mm² 7 13.8 mm 4.95
05020740 LSZH 4.0 mm² 7 13.8 mm 4.95
05010840 PVC 4.0 mm² 8 15.0 mm 4.95
05020840 LSZH 4.0 mm² 8 15.0 mm 4.95

Downloads

Sản phẩm liên quan

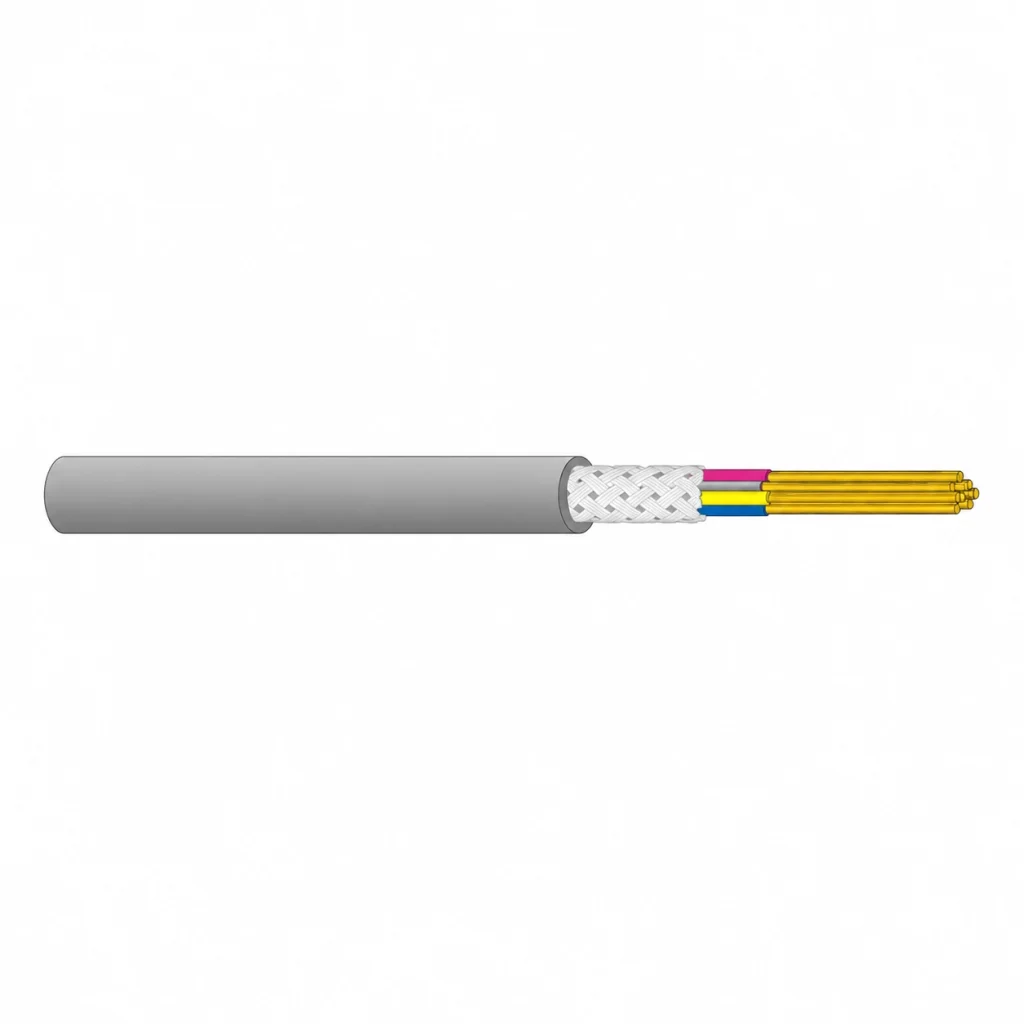

CASITEK LiHCH LSZH shielded control cable with Class 5 copper conductors, PE insulation and tinned copper braid shield
