DATALINK™

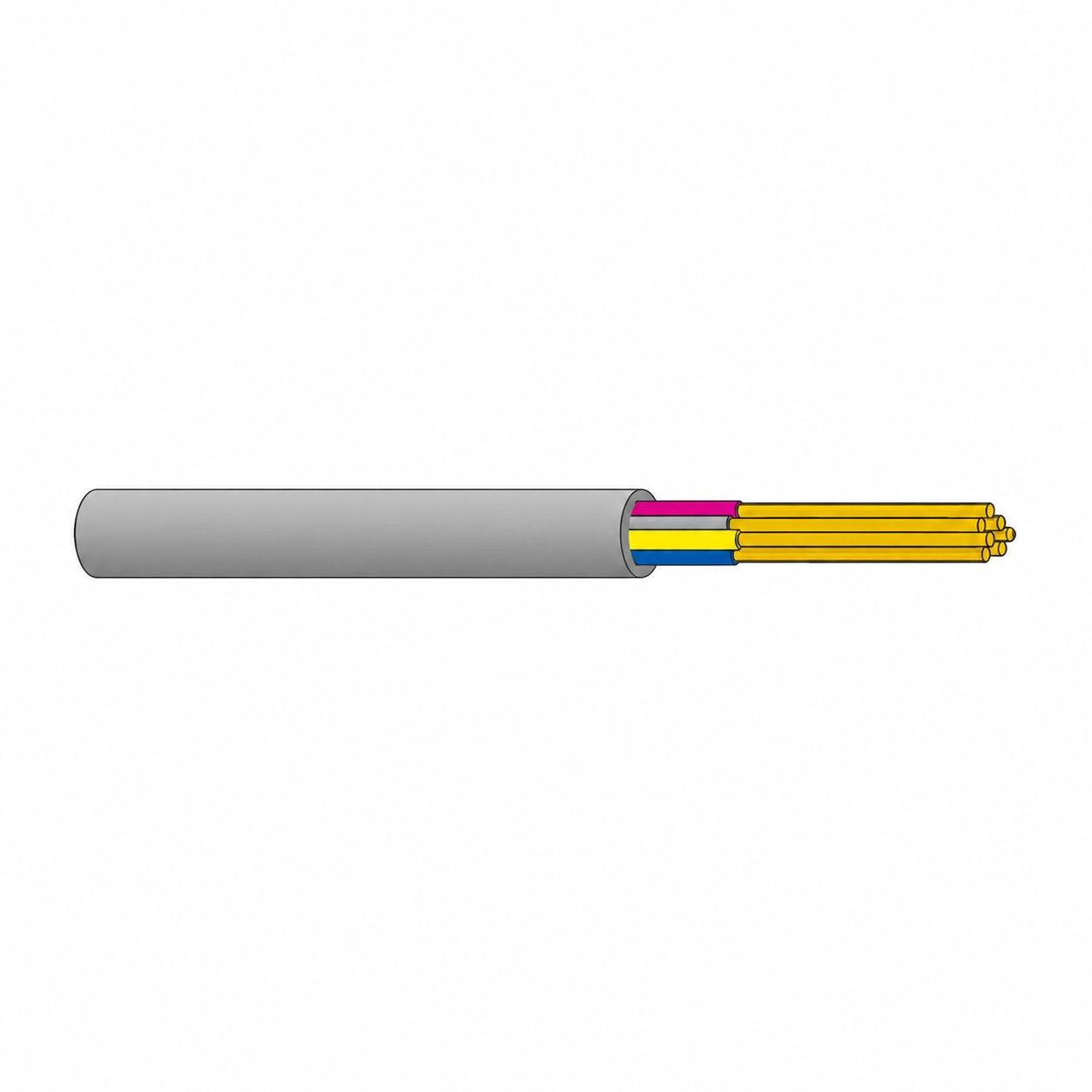

LiHH LSZH Signal Cable

Flexible LSZH signal and control cable; U₀/U: 250/250 V; Class 5 oxygen-free copper conductors; PE insulation; LSZH outer sheath; colored core identification; designed for electronics, public buildings, safety areas and industrial control systems requiring low-smoke halogen-free performance.

Low Smoke Zero Halogen

LSZH sheath with reduced smoke and toxic gas emission

Class 5 Flexible Conductors

Flexible Class 5 oxygen-free copper conductors

Flame-Retardant Signal Cable

IEC 60332-1 flame retardant and IEC 60754 halogen free

Yêu cầu báo giá

IN STOCK 100% GENUINE

Technical Data

Parameter	Specification
Rated Voltage	250/250 V
Test Voltage	1200 V
Conductor	Class 5 oxygen-free copper
Insulation	PE
Core Identification	Colored cores
Outer Sheath	LSZH
Temperature Range	-15°C to +70°C
Flame Retardant	IEC 60332-1
Halogen Free	IEC 60754
Standards	VDE 0812 / DIN 47100 / IEC 60332-1 / IEC 60754 / RoHS
Applications	Electronics / Public buildings / Safety areas / Office and industrial control systems

Available Articles – LiHH LSZH Signal Cable

Article No.	Type	Size	Cores	Conductor	Insulation	Sheath	Outer Diameter	Max DCR
05120214	PE-LSZH	0.14 mm²	2	12/0.12	0.3 mm	0.6 mm	3.4 mm	148
05120314	PE-LSZH	0.14 mm²	3	12/0.12	0.3 mm	0.6 mm	3.6 mm	148
05120414	PE-LSZH	0.14 mm²	4	12/0.12	0.3 mm	0.6 mm	3.9 mm	148
05120514	PE-LSZH	0.14 mm²	5	12/0.12	0.3 mm	0.6 mm	4.2 mm	148
05120714	PE-LSZH	0.14 mm²	7	12/0.12	0.3 mm	0.6 mm	4.5 mm	148
05120814	PE-LSZH	0.14 mm²	8	12/0.12	0.3 mm	0.6 mm	4.8 mm	148
05121014	PE-LSZH	0.14 mm²	10	12/0.12	0.3 mm	0.6 mm	5.6 mm	148
05121214	PE-LSZH	0.14 mm²	12	12/0.12	0.3 mm	0.7 mm	6 mm	148
05121414	PE-LSZH	0.14 mm²	14	12/0.12	0.3 mm	0.7 mm	6.3 mm	148
05120225	PE-LSZH	0.25 mm²	2	14/0.15	0.3 mm	0.6 mm	3.8 mm	79.9
05120325	PE-LSZH	0.25 mm²	3	14/0.15	0.3 mm	0.6 mm	4.1 mm	79.9
05120425	PE-LSZH	0.25 mm²	4	14/0.15	0.3 mm	0.6 mm	4.4 mm	79.9
05120525	PE-LSZH	0.25 mm²	5	14/0.15	0.3 mm	0.6 mm	4.7 mm	79.9
05120725	PE-LSZH	0.25 mm²	7	14/0.15	0.3 mm	0.6 mm	5.1 mm	79.9
05120825	PE-LSZH	0.25 mm²	8	14/0.15	0.3 mm	0.6 mm	5.5 mm	79.9
05121025	PE-LSZH	0.25 mm²	10	14/0.15	0.3 mm	0.7 mm	6.6 mm	79.9
05121225	PE-LSZH	0.25 mm²	12	14/0.15	0.3 mm	0.7 mm	6.9 mm	79.9
05121425	PE-LSZH	0.25 mm²	14	14/0.15	0.3 mm	0.7 mm	7.2 mm	79.9
05120234	PE-LSZH	0.34 mm²	2	20/0.15	0.3 mm	0.6 mm	4 mm	57
05120334	PE-LSZH	0.34 mm²	3	20/0.15	0.3 mm	0.6 mm	4.3 mm	57
05120434	PE-LSZH	0.34 mm²	4	20/0.15	0.3 mm	0.6 mm	4.6 mm	57
05120534	PE-LSZH	0.34 mm²	5	20/0.15	0.3 mm	0.6 mm	5 mm	57
05120734	PE-LSZH	0.34 mm²	7	20/0.15	0.3 mm	0.6 mm	5.4 mm	57
05120834	PE-LSZH	0.34 mm²	8	20/0.15	0.3 mm	0.6 mm	5.8 mm	57
05121034	PE-LSZH	0.34 mm²	10	20/0.15	0.3 mm	0.7 mm	7 mm	57
05121234	PE-LSZH	0.34 mm²	12	20/0.15	0.3 mm	0.7 mm	7.3 mm	57
05121434	PE-LSZH	0.34 mm²	14	20/0.15	0.3 mm	0.7 mm	7.6 mm	57
05120250	PE-LSZH	0.5 mm²	2	16/0.20	0.3 mm	0.6 mm	4.3 mm	39
05120350	PE-LSZH	0.5 mm²	3	16/0.20	0.3 mm	0.6 mm	4.6 mm	39
05120450	PE-LSZH	0.5 mm²	4	16/0.20	0.3 mm	0.6 mm	5 mm	39
05120550	PE-LSZH	0.5 mm²	5	16/0.20	0.3 mm	0.6 mm	5.4 mm	39
05120750	PE-LSZH	0.5 mm²	7	16/0.20	0.3 mm	0.6 mm	5.9 mm	39
05120850	PE-LSZH	0.5 mm²	8	16/0.20	0.3 mm	0.7 mm	6.5 mm	39
05121050	PE-LSZH	0.5 mm²	10	16/0.20	0.3 mm	0.7 mm	7.6 mm	39
05121250	PE-LSZH	0.5 mm²	12	16/0.20	0.3 mm	0.7 mm	7.9 mm	39
05121450	PE-LSZH	0.5 mm²	14	16/0.20	0.3 mm	0.7 mm	8.3 mm	39
05120275	PE-LSZH	0.75 mm²	2	24/0.20	0.4 mm	0.6 mm	5.2 mm	26
05120375	PE-LSZH	0.75 mm²	3	24/0.20	0.4 mm	0.6 mm	5.6 mm	26
05120475	PE-LSZH	0.75 mm²	4	24/0.20	0.4 mm	0.6 mm	6.1 mm	26
05120575	PE-LSZH	0.75 mm²	5	24/0.20	0.4 mm	0.7 mm	6.6 mm	26
05120775	PE-LSZH	0.75 mm²	7	24/0.20	0.4 mm	0.7 mm	7.2 mm	26
05120875	PE-LSZH	0.75 mm²	8	24/0.20	0.4 mm	0.7 mm	8 mm	26
05121075	PE-LSZH	0.75 mm²	10	24/0.20	0.4 mm	0.8 mm	9.6 mm	26
05121275	PE-LSZH	0.75 mm²	12	24/0.20	0.4 mm	0.8 mm	10 mm	26
05121475	PE-LSZH	0.75 mm²	14	24/0.20	0.4 mm	0.9 mm	10.7 mm	26
05120210	PE-LSZH	1.0 mm²	2	32/0.20	0.5 mm	0.6 mm	5.8 mm	19.5
05120310	PE-LSZH	1.0 mm²	3	32/0.20	0.5 mm	0.6 mm	6.3 mm	19.5
05120410	PE-LSZH	1.0 mm²	4	32/0.20	0.5 mm	0.7 mm	7 mm	19.5
05120510	PE-LSZH	1.0 mm²	5	32/0.20	0.5 mm	0.7 mm	7.6 mm	19.5
05120710	PE-LSZH	1.0 mm²	7	32/0.20	0.5 mm	0.8 mm	8.5 mm	19.5
05120215	PE-LSZH	1.5 mm²	2	30/0.25	0.5 mm	0.6 mm	6.4 mm	13.3
05120315	PE-LSZH	1.5 mm²	3	30/0.25	0.5 mm	0.7 mm	7.1 mm	13.3
05120415	PE-LSZH	1.5 mm²	4	30/0.25	0.5 mm	0.7 mm	7.7 mm	13.3
05120515	PE-LSZH	1.5 mm²	5	30/0.25	0.5 mm	0.8 mm	8.6 mm	13.3
05120715	PE-LSZH	1.5 mm²	7	30/0.25	0.5 mm	0.9 mm	9.6 mm	13.3
