DATALINK™

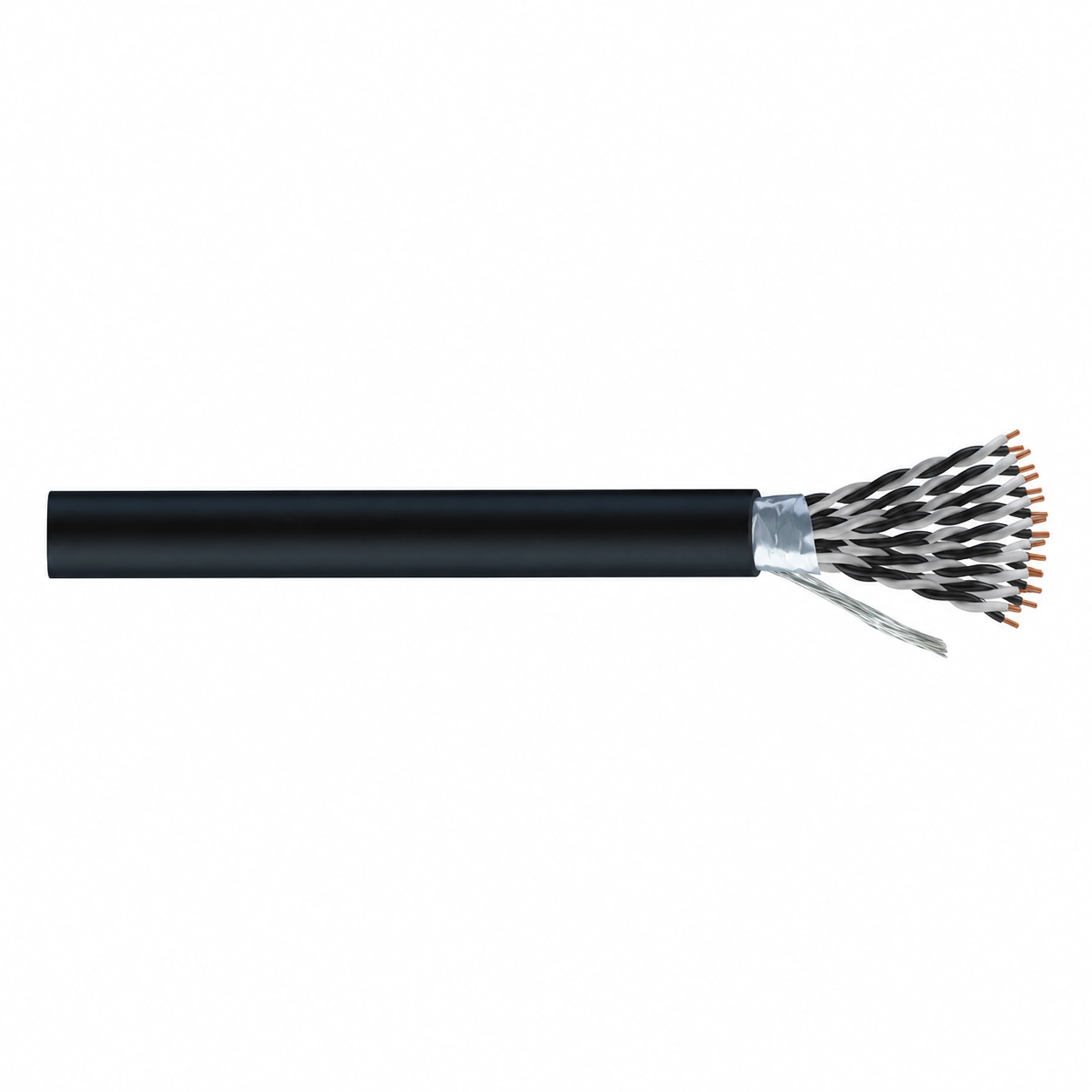

BS5308 Type 1 PE Insulated Unarmoured Instrumentation Cable
300/500 V instrumentation and process control cable for industrial environments, chemical plants and oil & gas facilities; copper conductors; PE insulation; twisted-pair cabling; Al-PET screen with drain wire; unarmoured construction; PVC sheath; available in collectively screened and individually + collectively screened configurations.
PE Insulated Construction
PE insulation with twisted-pair cabling for instrumentation applications
Unarmoured Type 1 Design
Unarmoured construction with PVC sheath
Collective / Individual + Collective Screening
Available in collectively screened and individually + collectively screened configurations
IN STOCK
100% GENUINE
Technical Data
| Parameter | Specification | |
|---|---|---|
| Parameter | Specification | |
| Cable Type | BS5308 Type 1 | |
| Application | Instrumentation / Process Control | |
| Voltage | 300/500 V | |
| Conductor | Copper | |
| Insulation | PE | |
| Cabling | Twisted Pairs | |
| Screen | Al-PET + Drain Wire | |
| Screen Configuration | Collectively Screened / Individually + Collectively Screened | |
| Armour | None | |
| Sheath | PVC | |
| Temperature Range | -15°C to +65°C | |
| Flame | Pass – IEC60332 |
Available Articles – BS5308 Type 1 PE Insulated Unarmoured Instrumentation Cable
BS5308 Type 1 – Collectively Screened Unarmoured
| Part No. | Pairs | Size (mm²) | Class | Insulation (mm) | Sheath (mm) | OD (mm) |
|---|---|---|---|---|---|---|
| 060101051 | 1 | 0.5 | 1 | 0.5 | 0.8 | 5.3 |
| 060102051 | 2 | 0.5 | 1 | 0.5 | 0.8 | 6.1 |
| 060105051 | 5 | 0.5 | 1 | 0.5 | 1.1 | 10.6 |
| 060110051 | 10 | 0.5 | 1 | 0.5 | 1.2 | 14 |
| 060115051 | 15 | 0.5 | 1 | 0.5 | 1.2 | 16.1 |
| 060120051 | 20 | 0.5 | 1 | 0.5 | 1.3 | 18.4 |
| 060101101 | 1 | 1.0 | 1 | 0.6 | 0.8 | 6.4 |
| 060102101 | 2 | 1.0 | 1 | 0.6 | 0.8 | 7.4 |
| 060105101 | 5 | 1.0 | 1 | 0.6 | 1.1 | 13.2 |
| 060110101 | 10 | 1.0 | 1 | 0.6 | 1.2 | 17.4 |
| 060115101 | 15 | 1.0 | 1 | 0.6 | 1.3 | 20.3 |
| 060120101 | 20 | 1.0 | 1 | 0.6 | 1.5 | 23.4 |
| 060101055 | 1 | 0.5 | 5 | 0.6 | 0.8 | 6 |
| 060102055 | 2 | 0.5 | 5 | 0.6 | 0.8 | 6.9 |
| 060105055 | 5 | 0.5 | 5 | 0.6 | 1.1 | 12.1 |
| 060110055 | 10 | 0.5 | 5 | 0.6 | 1.2 | 16.2 |
| 060115055 | 15 | 0.5 | 5 | 0.6 | 1.3 | 18.8 |
| 060120055 | 20 | 0.5 | 5 | 0.6 | 1.3 | 21.3 |
| 060101152 | 1 | 1.5 | 2 | 0.6 | 0.8 | 7.3 |
| 060102152 | 2 | 1.5 | 2 | 0.6 | 0.9 | 8.7 |
| 060105152 | 5 | 1.5 | 2 | 0.6 | 1.2 | 15.4 |
| 060110152 | 10 | 1.5 | 2 | 0.6 | 1.3 | 20.6 |
| 060115152 | 15 | 1.5 | 2 | 0.6 | 1.5 | 24.2 |
| 060120152 | 20 | 1.5 | 2 | 0.6 | 1.5 | 27.5 |
BS5308 Type 1 – Individually + Collectively Screened Unarmoured
| Part No. | Pairs | Size (mm²) | Class | Insulation (mm) | Sheath (mm) | OD (mm) |
|---|---|---|---|---|---|---|
| 060202051 | 2 | 0.5 | 1 | 0.5 | 0.9 | 8.5 |
| 060205051 | 5 | 0.5 | 1 | 0.5 | 0.9 | 10.9 |
| 060210051 | 10 | 0.5 | 1 | 0.5 | 1.1 | 15.6 |
| 060215051 | 15 | 0.5 | 1 | 0.5 | 1.2 | 18.1 |
| 060220051 | 20 | 0.5 | 1 | 0.5 | 1.3 | 20.4 |
| 060202101 | 2 | 1.0 | 1 | 0.6 | 0.9 | 10.3 |
| 060205101 | 5 | 1.0 | 1 | 0.6 | 1.0 | 13.5 |
| 060210101 | 10 | 1.0 | 1 | 0.6 | 1.2 | 19.4 |
| 060215101 | 15 | 1.0 | 1 | 0.6 | 1.4 | 22.7 |
| 060220101 | 20 | 1.0 | 1 | 0.6 | 1.5 | 25.7 |
| 060202055 | 2 | 0.5 | 5 | 0.6 | 0.9 | 9.7 |
| 060205055 | 5 | 0.5 | 5 | 0.6 | 1.0 | 12.6 |
| 060210055 | 10 | 0.5 | 5 | 0.6 | 1.2 | 18 |
| 060215055 | 15 | 0.5 | 5 | 0.6 | 1.3 | 20.9 |
| 060220055 | 20 | 0.5 | 5 | 0.6 | 1.4 | 23.6 |
| 060202152 | 2 | 1.5 | 2 | 0.6 | 1.0 | 12.1 |
| 060205152 | 5 | 1.5 | 2 | 0.6 | 1.1 | 15.8 |
| 060210152 | 10 | 1.5 | 2 | 0.6 | 1.4 | 22.9 |
| 060215152 | 15 | 1.5 | 2 | 0.6 | 1.5 | 26.6 |
| 060220152 | 20 | 1.5 | 2 | 0.6 | 1.6 | 30.1 |
