DATALINK™

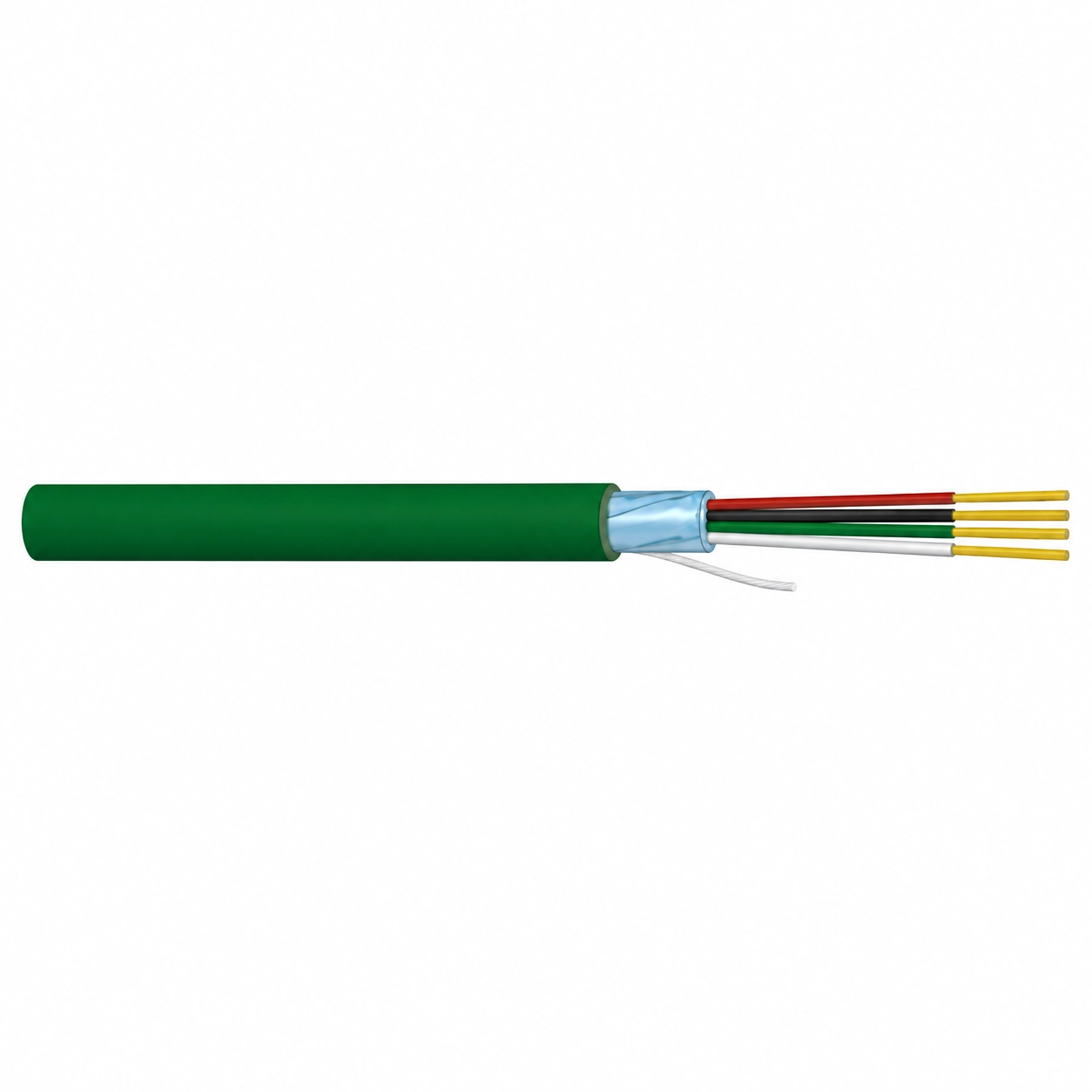

KNX / EIB Bus Communication Cable

KNX / EIB bus communication cable for building automation, lighting, HVAC and ventilation control; copper conductors; S-PE insulation; twisted-pair construction; aluminium foil screening; green PVC or LSZH sheath; suitable for indoor and outdoor use.

KNX / EIB Bus Communication

Optimized for KNX bus communication in building automation systems.

Aluminium Foil Screening

Al-foil screening provides EMI protection for bus communication.

Indoor and Outdoor Applications

Suitable for indoor and outdoor use in smart building infrastructure.

Yêu cầu báo giá

IN STOCK 100% GENUINE

Technical Data

Parameter	Specification
Cable Type	KNX / EIB Bus Communication Cable
Application	KNX / EIB Building Automation
Rated Voltage	150 V
Test Voltage	4 kV / 1 min
Conductor	Copper
Insulation	S-PE
Core Identification	Red / Black / Yellow / White
Cabling	Twisted Pair
Screen	Aluminium Foil
Sheath	PVC / LSZH
Sheath Colour	Green
Capacitance	100 nF/km @ 800 Hz
Temperature Range	-15°C to +70°C
Standards	EN50090 / EN50290 / EN60228 / IEC60332-1 / RoHS

Available Articles – KNX / EIB Bus Communication Cable

Part No.	Size	Insulation	Screen	Sheath	Outer Diameter (mm)	Copper Index (kg/km)	Weight (kg/km)
00012011	1x2x20AWG	S-PE	AL Foil	PVC	5.1	9.5	28
00012012	1x2x20AWG	S-PE	AL Foil	LSZH	5.1	9.5	30
00022011	2x2x20AWG	S-PE	AL Foil	PVC	5.8	19	55
00022012	2x2x20AWG	S-PE	AL Foil	LSZH	5.8	19	58
00024011	4x20AWG	S-PE	AL Foil	PVC	7.5	19	55
00024012	4x20AWG	S-PE	AL Foil	LSZH	7.5	19	58
