DATALINK™

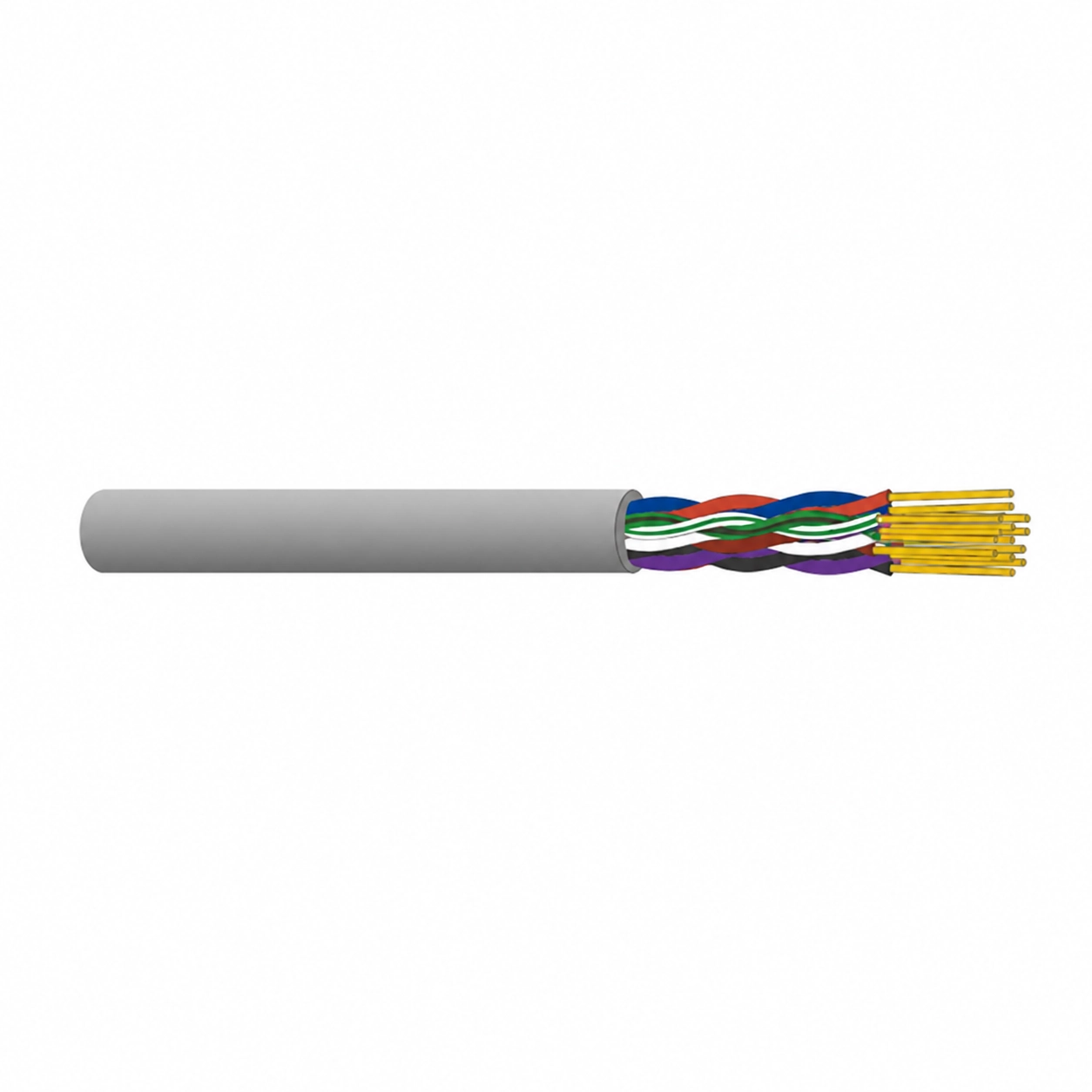

LiYY TP PVC Twisted Pair Signal Cable

Flexible twisted-pair signal and control cable; U₀/U: 250/250 V; Class 5 oxygen-free copper conductors; PVC insulation and grey PVC outer sheath; colored core identification; designed for electronics, control units, measurement and automation systems.

Twisted Pair Signal Stability

Twisted pair construction for interference-reduced transmission

Class 5 Flexible Conductors

Flexible Class 5 oxygen-free copper conductors

PVC Signal And Control Design

PVC insulation and grey PVC sheath for indoor applications

Yêu cầu báo giá

IN STOCK 100% GENUINE

Technical Data

Parameter	Specification
Rated Voltage	250/250 V
Test Voltage	1200 V
Conductor	Class 5 oxygen-free copper
Insulation	PVC
Core Identification	Colored cores
Structure	Twisted pairs (TP)
Outer Sheath	PVC
Sheath Colour	Grey
Temperature Range	-15°C to +70°C
Flame Retardant	IEC 60332-1
Signal Stability	Improved (TP design)
Standards	VDE 0812 / DIN 47100 / IEC 60332-1 / RoHS
Applications	Electronics / Control units / Measurement systems / Industrial automation

Available Articles – LiYY TP PVC Twisted Pair Signal Cable

%LS��

Article No.	Type	Size	Pairs	Conductor	Insulation	Sheath	Outer Diameter	Max DCR
05110114	PVC-PVC	0.14 mm²	1	12/0.12	0.35 mm	0.4 mm	3.2 mm	148
05110214	PVC-PVC	0.14 mm²	2	12/0.12	0.35 mm	0.6 mm	5.3 mm	148
05110314	PVC-PVC	0.14 mm²	3	12/0.12	0.35 mm	0.6 mm	5.7 mm	148
05110414	PVC-PVC	0.14 mm²	4	12/0.12	0.35 mm	0.7 mm	6.4 mm	148
05110614	PVC-PVC	0.14 mm²	6	12/0.12	0.35 mm	0.7 mm	7.5 mm	148
05110814	PVC-PVC	0.14 mm²	8	12/0.12	0.35 mm	0.8 mm	8.6 mm	148
05111014	PVC-PVC	0.14 mm²	10	12/0.12	0.35 mm	0.9 mm	10 mm	148
05111214	PVC-PVC	0.14 mm²	12	12/0.12	0.35 mm	1 mm	10.4 mm	148
05111514	PVC-PVC	0.14 mm²	15	12/0.12	0.35 mm	1.1 mm	11.6 mm	148
05110125	PVC-PVC	0.25 mm²	1	14/0.15	0.4 mm	0.4 mm	3.6 mm	79.9
05110225	PVC-PVC	0.25 mm²	2	14/0.15	0.4 mm	0.6 mm	6 mm	79.9
05110325	PVC-PVC	0.25 mm²	3	14/0.15	0.4 mm	0.6 mm	6.4 mm	79.9
05110425	PVC-PVC	0.25 mm²	4	14/0.15	0.4 mm	0.7 mm	7.2 mm	79.9
05110625	PVC-PVC	0.25 mm²	6	14/0.15	0.4 mm	0.8 mm	8.8 mm	79.9
05110825	PVC-PVC	0.25 mm²	8	14/0.15	0.4 mm	0.8 mm	9.8 mm	79.9
