DATALINK™

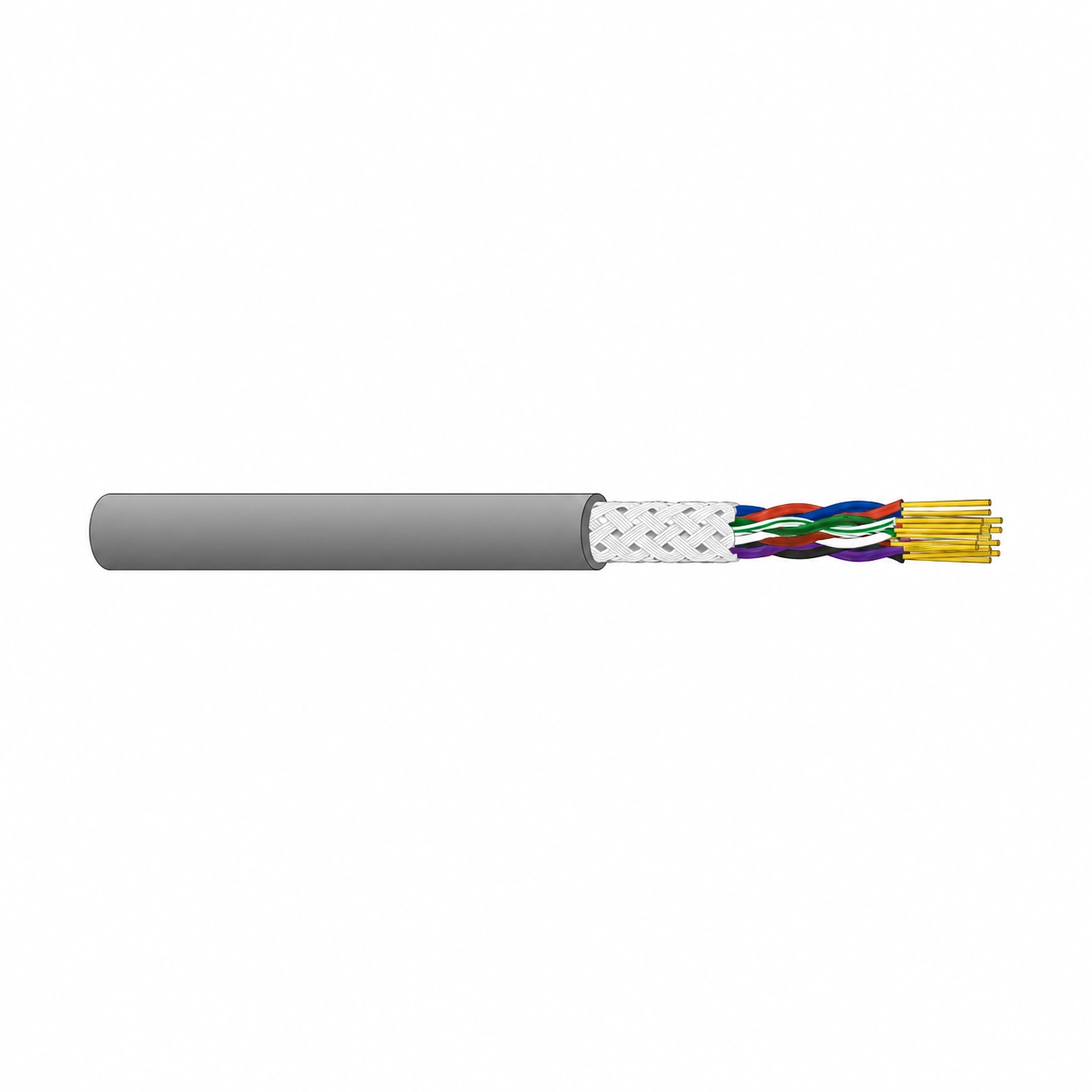

LiYCY TP PVC Shielded Twisted Pair Control Cable

Flexible shielded twisted-pair signal and control cable; U₀/U: 250/250 V; Class 5 tinned copper conductors; PVC insulation and outer sheath; tinned copper braid shield; colored core identification; designed for industrial automation, instrumentation and EMI-sensitive electronic systems.

Twisted Pair Signal Stability

Twisted pair construction for interference-reduced transmission

Tinned Copper Braid Shield

Tinned copper braid for high EMI protection

Class 5 Flexible Conductors

Flexible Class 5 tinned copper conductors

Yêu cầu báo giá

IN STOCK 100% GENUINE

Technical Data

Parameter	Specification
Rated Voltage	250/250 V
Test Voltage	1200 V
Conductor	Class 5 tinned copper
Insulation	PVC
Cabling	Twisted Pair
Core Identification	Colored cores
Shield	Tinned Copper Braid
Outer Sheath	PVC
Temperature Range	-15°C to +70°C
Flame Retardant	IEC 60332-1
EMI Shielding	High
Signal Stability	Optimized (TP)
Standards	VDE 0812 / DIN 47100 / IEC 60332-1 / RoHS
Applications	Industrial automation / Instrumentation / Electronic systems / EMI-sensitive environments

Available Articles – LiYCY TP PVC Shielded Twisted Pair Control Cable

Article No.	Size	Pairs	Conductor	Insulation	Sheath	Structure	Outer Diameter	Max DCR
05230114	0.14 mm²	1	12/0.12	0.35 mm	0.7 mm	TP + TC Braided	4.4 mm	148
05230214	0.14 mm²	2	12/0.12	0.35 mm	0.7 mm	TP + TC Braided	6.1 mm	148
05230314	0.14 mm²	3	12/0.12	0.35 mm	0.8 mm	TP + TC Braided	6.7 mm	148
05230414	0.14 mm²	4	12/0.12	0.35 mm	0.8 mm	TP + TC Braided	7.2 mm	148
05230614	0.14 mm²	6	12/0.12	0.35 mm	0.8 mm	TP + TC Braided	8.3 mm	148
05230814	0.14 mm²	8	12/0.12	0.35 mm	0.8 mm	TP + TC Braided	9.4 mm	148
05231014	0.14 mm²	10	12/0.12	0.35 mm	0.9 mm	TP + TC Braided	10.8 mm	148
05231214	0.14 mm²	12	12/0.12	0.35 mm	1 mm	TP + TC Braided	11.4 mm	148
05230125	0.25 mm²	1	14/0.15	0.4 mm	0.7 mm	TP + TC Braided	4.8 mm	79.9
05230225	0.25 mm²	2	14/0.15	0.4 mm	0.8 mm	TP + TC Braided	7 mm	79.9
05230325	0.25 mm²	3	14/0.15	0.4 mm	0.8 mm	TP + TC Braided	7.4 mm	79.9
05230425	0.25 mm²	4	14/0.15	0.4 mm	0.8 mm	TP + TC Braided	8 mm	79.9
05230625	0.25 mm²	6	14/0.15	0.4 mm	0.8 mm	TP + TC Braided	9.6 mm	79.9
05230825	0.25 mm²	8	14/0.15	0.4 mm	0.9 mm	TP + TC Braided	10.8 mm	79.9
05231025	0.25 mm²	10	14/0.15	0.4 mm	1 mm	TP + TC Braided	12.3 mm	79.9
05231225	0.25 mm²	12	14/0.15	0.4 mm	1.1 mm	TP + TC Braided	12.6 mm	79.9
05230134	0.34 mm²	1	20/0.15	0.4 mm	0.7 mm	TP + TC Braided	5.2 mm	57
05230234	0.34 mm²	2	20/0.15	0.4 mm	0.8 mm	TP + TC Braided	7.7 mm	57
05230334	0.34 mm²	3	20/0.15	0.4 mm	0.8 mm	TP + TC Braided	8.2 mm	57
05230434	0.34 mm²	4	20/0.15	0.4 mm	0.8 mm	TP + TC Braided	9 mm	57
05230634	0.34 mm²	6	20/0.15	0.4 mm	0.9 mm	TP + TC Braided	10.8 mm	57
05230834	0.34 mm²	8	20/0.15	0.4 mm	1 mm	TP + TC Braided	12.2 mm	57
05231034	0.34 mm²	10	20/0.15	0.4 mm	1.1 mm	TP + TC Braided	13.1 mm	57
05231234	0.34 mm²	12	20/0.15	0.4 mm	1.2 mm	TP + TC Braided	14.7 mm	57
05230150	0.5 mm²	1	16/0.20	0.45 mm	0.7 mm	TP + TC Braided	5.6 mm	39
05230250	0.5 mm²	2	16/0.20	0.45 mm	0.8 mm	TP + TC Braided	8.3 mm	39
05230350	0.5 mm²	3	16/0.20	0.45 mm	0.8 mm	TP + TC Braided	9.1 mm	39
05230450	0.5 mm²	4	16/0.20	0.45 mm	0.9 mm	TP + TC Braided	10 mm	39
05230650	0.5 mm²	6	16/0.20	0.45 mm	1 mm	TP + TC Braided	12 mm	39
05230850	0.5 mm²	8	16/0.20	0.45 mm	1.1 mm	TP + TC Braided	13.1 mm	39
05231050	0.5 mm²	10	16/0.20	0.45 mm	1.2 mm	TP + TC Braided	15.5 mm	39
05230175	0.75 mm²	1	24/0.20	0.5 mm	0.8 mm	TP + TC Braided	6.4 mm	26
05230275	0.75 mm²	2	24/0.20	0.5 mm	0.8 mm	TP + TC Braided	9.6 mm	26
05230375	0.75 mm²	3	24/0.20	0.5 mm	0.9 mm	TP + TC Braided	10.5 mm	26
05230475	0.75 mm²	4	24/0.20	0.5 mm	1 mm	TP + TC Braided	11.4 mm	26
05230675	0.75 mm²	6	24/0.20	0.5 mm	1.1 mm	TP + TC Braided	13.7 mm	26
05230875	0.75 mm²	8	24/0.20	0.5 mm	1.2 mm	TP + TC Braided	15 mm	26
05231075	0.75 mm²	10	24/0.20	0.5 mm	1.3 mm	TP + TC Braided	17.7 mm	26
05230110	1.0 mm²	1	32/0.20	0.6 mm	0.8 mm	TP + TC Braided	7.2 mm	19.5
05230210	1.0 mm²	2	32/0.20	0.6 mm	0.9 mm	TP + TC Braided	11.1 mm	19.5
05230310	1.0 mm²	3	32/0.20	0.6 mm	1 mm	TP + TC Braided	12.2 mm	19.5
05230410	1.0 mm²	4	32/0.20	0.6 mm	1 mm	TP + TC Braided	13.1 mm	19.5
05230610	1.0 mm²	6	32/0.20	0.6 mm	1.2 mm	TP + TC Braided	15 mm	19.5
05230810	1.0 mm²	8	32/0.20	0.6 mm	1.3 mm	TP + TC Braided	17.4 mm	19.5
05230115	1.5 mm²	1	30/0.25	0.6 mm	0.8 mm	TP + TC Braided	7.8 mm	13.3
05230215	1.5 mm²	2	30/0.25	0.6 mm	1 mm	TP + TC Braided	12.3 mm	13.3
05230315	1.5 mm²	3	30/0.25	0.6 mm	1.1 mm	TP + TC Braided	13.5 mm	13.3
05230415	1.5 mm²	4	30/0.25	0.6 mm	1.2 mm	TP + TC Braided	14.7 mm	13.3
