BS5308 Type 1 PVC Insulated Unarmoured Instrumentation Cable
300/500 V instrumentation and control cable for industrial, petrochemical and process automation applications; suitable for indoor and damp environments; Class 2/5 oxygen-free copper conductors; PVC insulation; multicore or twisted-pair construction; Al-PET tape with tinned copper drain wire; unarmoured design; PVC oversheath.

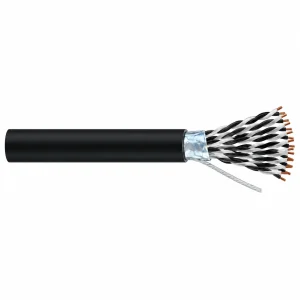

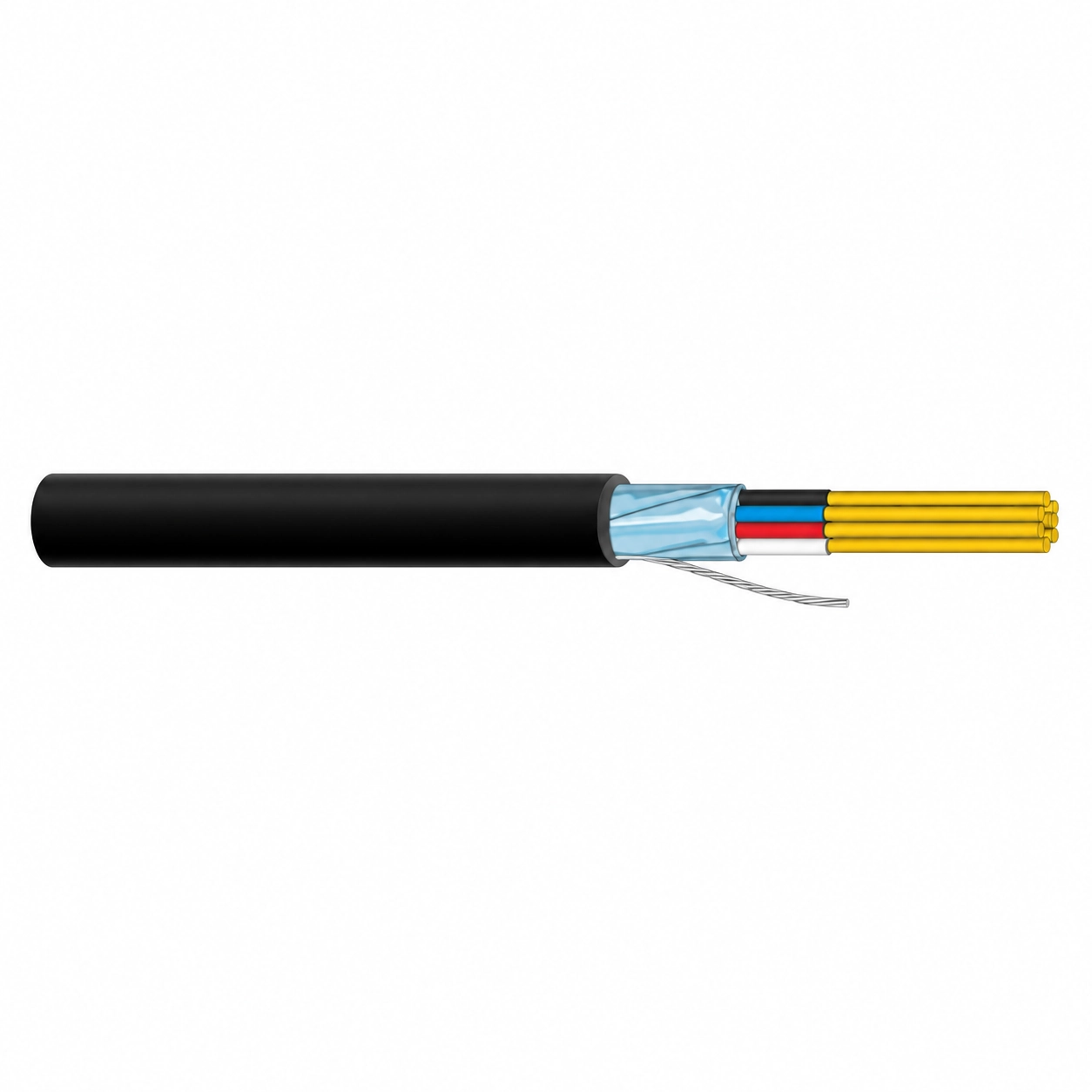

Multicore & Multipair Configurations
Available with cores or twisted-pair cabling configurations
PVC Insulated Unarmoured Design
PVC insulation with unarmoured construction and PVC oversheath
Collective / Individual + Collective Screening

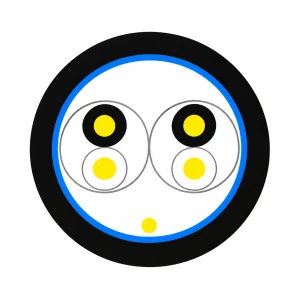

Al-PET tape with tinned copper drain wire in individual and overall screened configurations
IN STOCK
100% GENUINE
Technical Data
| Parameter | Specification | |
|---|---|---|
| Parameter | Specification | |
| Cable Type | BS5308 Type 1 | |
| Rated Voltage | 300/500 V | |
| Test Voltage | 2000 V | |
| Conductor | Class 2/5 Oxygen Free Copper | |
| Insulation | PVC | |
| Cabling | Cores / Twisted Pairs | |
| Screen | Al-PET Tape + Tinned Copper Drain Wire (Individual / Overall) | |
| Armour | None | |
| Oversheath | PVC | |
| Temperature Range | -15°C to +65°C | |
| Flame Retardant | Pass – IEC60332-1 | |
| Standards | PAS/BS5308 / BS EN 60228 / BS EN 50290 / IEC60332-1 / RoHS |
Available Articles – BS5308 Type 1 PVC Insulated Unarmoured Instrumentation Cable
BS5308 Type 1 – Multicore Collectively Screened Unarmoured
| Part No. | Cores | Size (mm²) | Class | Insulation (mm) | Sheath (mm) | OD (mm) |
|---|---|---|---|---|---|---|
| 070502055 | 2 | 0.5 | 5 | 0.6 | 0.8 | 6 |
| 070503055 | 3 | 0.5 | 5 | 0.6 | 0.8 | 6.3 |
| 070504055 | 4 | 0.5 | 5 | 0.6 | 0.8 | 6.9 |
| 070506055 | 6 | 0.5 | 5 | 0.6 | 0.8 | 8.1 |
| 070510055 | 10 | 0.5 | 5 | 0.6 | 0.9 | 10.4 |
| 070520055 | 20 | 0.5 | 5 | 0.6 | 1 | 13.5 |
| 070502755 | 2 | 0.75 | 5 | 0.6 | 0.8 | 6.4 |
| 070503755 | 3 | 0.75 | 5 | 0.6 | 0.8 | 6.8 |
| 070504755 | 4 | 0.75 | 5 | 0.6 | 0.8 | 7.4 |
| 070506755 | 6 | 0.75 | 5 | 0.6 | 0.9 | 8.9 |
| 070510755 | 10 | 0.75 | 5 | 0.6 | 1 | 11.5 |
| 070520755 | 20 | 0.75 | 5 | 0.6 | 1.1 | 14.8 |
| 070502152 | 2 | 1.5 | 2 | 0.6 | 0.8 | 7.3 |
| 070503152 | 3 | 1.5 | 2 | 0.6 | 0.8 | 7.7 |
| 070504152 | 4 | 1.5 | 2 | 0.6 | 0.9 | 8.7 |
| 070506152 | 6 | 1.5 | 2 | 0.6 | 0.9 | 10.3 |
| 070510152 | 10 | 1.5 | 2 | 0.6 | 1 | 13.3 |
| 070520152 | 20 | 1.5 | 2 | 0.6 | 1.2 | 17.4 |
BS5308 Type 1 – Multipair Collectively Screened Unarmoured
| Part No. | Pairs | Size (mm²) | Class | Insulation (mm) | Sheath (mm) | OD (mm) |
|---|---|---|---|---|---|---|
| 070101055 | 1 | 0.5 | 5 | 0.6 | 0.8 | 6 |
| 070102055 | 2 | 0.5 | 5 | 0.6 | 0.8 | 6.9 |
| 070105055 | 5 | 0.5 | 5 | 0.6 | 1 | 11.9 |
| 070110055 | 10 | 0.5 | 5 | 0.6 | 1.1 | 16.4 |
| 070115055 | 15 | 0.5 | 5 | 0.6 | 1.2 | 19 |
| 070120055 | 20 | 0.5 | 5 | 0.6 | 1.3 | 21.5 |
| 070101755 | 1 | 0.75 | 5 | 0.6 | 0.8 | 6.4 |
| 070102755 | 2 | 0.75 | 5 | 0.6 | 0.8 | 7.4 |
| 070105755 | 5 | 0.75 | 5 | 0.6 | 1 | 12.8 |
| 070110755 | 10 | 0.75 | 5 | 0.6 | 1.2 | 17.9 |
| 070115755 | 15 | 0.75 | 5 | 0.6 | 1.3 | 20.9 |
| 070120755 | 20 | 0.75 | 5 | 0.6 | 1.4 | 23.6 |
| 070101152 | 1 | 1.5 | 2 | 0.6 | 0.8 | 7.3 |
| 070102152 | 2 | 1.5 | 2 | 0.6 | 0.9 | 8.7 |
| 070105152 | 5 | 1.5 | 2 | 0.6 | 1.1 | 15.1 |
| 070110152 | 10 | 1.5 | 2 | 0.6 | 1.3 | 21.1 |
| 070115152 | 15 | 1.5 | 2 | 0.6 | 1.4 | 24.6 |
| 070120152 | 20 | 1.5 | 2 | 0.6 | 1.5 | 27.7 |
BS5308 Type 1 – Multipair Individually & Collectively Screened Unarmoured
| Part No. | Pairs | Size (mm²) | Class | Insulation (mm) | Sheath (mm) | OD (mm) |
|---|---|---|---|---|---|---|
| 070202055 | 2 | 0.5 | 5 | 0.6 | 0.9 | 9.7 |
| 070205055 | 5 | 0.5 | 5 | 0.6 | 1 | 12.6 |
| 070210055 | 10 | 0.5 | 5 | 0.6 | 1.2 | 18 |
| 070215055 | 15 | 0.5 | 5 | 0.6 | 1.3 | 20.9 |
| 070220055 | 20 | 0.5 | 5 | 0.6 | 1.4 | 23.6 |
| 070202755 | 2 | 0.75 | 5 | 0.6 | 0.9 | 10.4 |
| 070205755 | 5 | 0.75 | 5 | 0.6 | 1 | 13.5 |
| 070210755 | 10 | 0.75 | 5 | 0.6 | 1.2 | 19.4 |
| 070215755 | 15 | 0.75 | 5 | 0.6 | 1.4 | 22.8 |
| 070220755 | 20 | 0.75 | 5 | 0.6 | 1.5 | 25.8 |
| 070202152 | 2 | 1.5 | 2 | 0.6 | 1 | 12.1 |
| 070205152 | 5 | 1.5 | 2 | 0.6 | 1.1 | 15.8 |
| 070210152 | 10 | 1.5 | 2 | 0.6 | 1.4 | 22.9 |
| 070215152 | 15 | 1.5 | 2 | 0.6 | 1.5 | 26.6 |
| 070220152 | 20 | 1.5 | 2 | 0.6 | 1.6 | 30.1 |
