DATALINK™

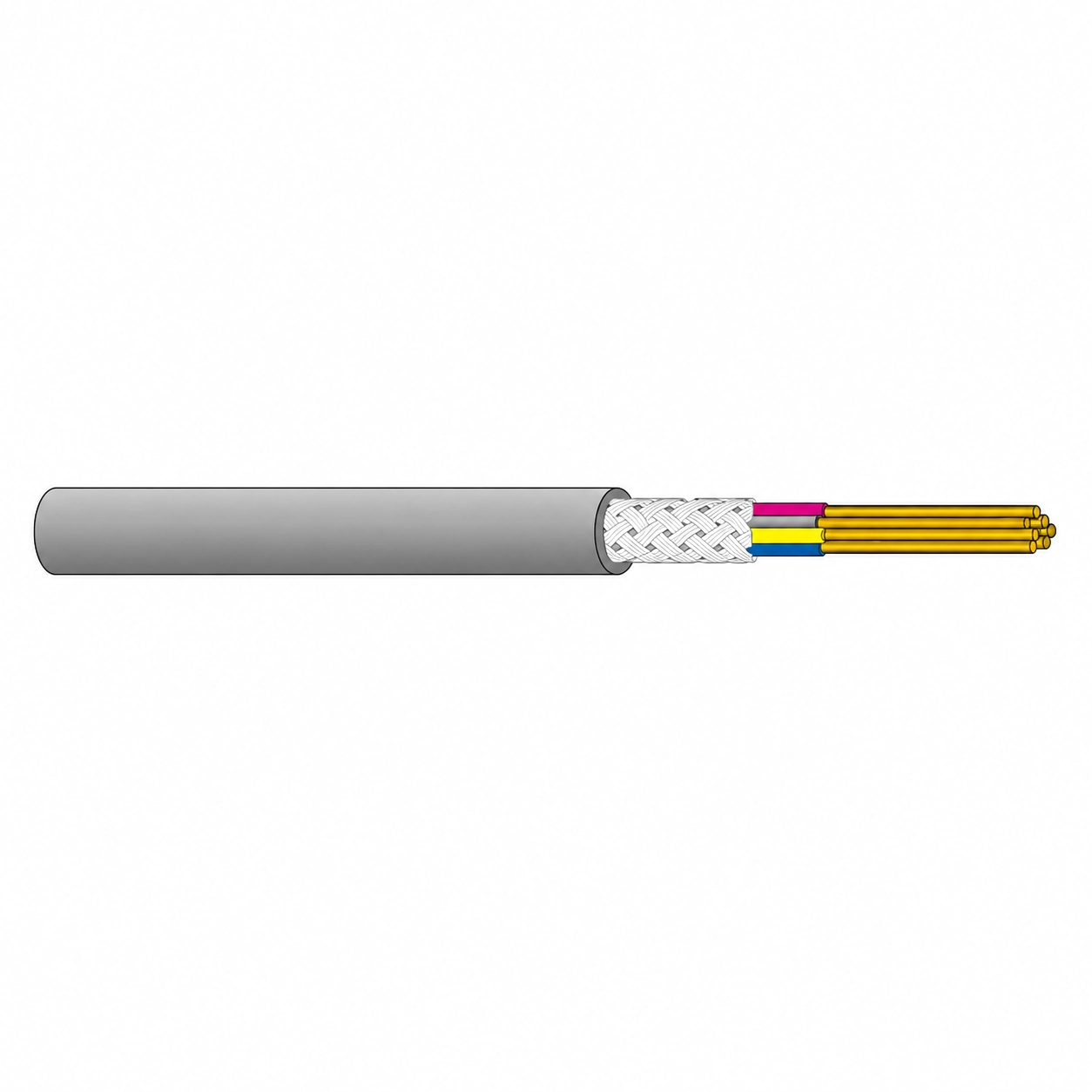

LiYCY PVC Shielded Signal Cable

Flexible shielded signal and control cable; U₀/U: 250/250 V; Class 5 oxygen-free copper conductors; PVC insulation and grey PVC outer sheath; tinned copper braided screen; colored core identification; designed for electronics, computer systems, automation units and EMI-sensitive indoor applications.

Tinned Copper Braid Shield

Tinned copper braided screen for EMI protection

Class 5 Flexible Conductors

Flexible Class 5 oxygen-free copper conductors

EMI-Protected Signal Transmission

Reliable signal transmission in EMI-sensitive environments

Yêu cầu báo giá

IN STOCK 100% GENUINE

Technical Data

Parameter	Specification
Rated Voltage	250/250 V
Test Voltage	1200 V
Conductor	Class 5 oxygen-free copper
Insulation	PVC
Core Identification	Colored cores
Screen	Tinned Copper Braid
Outer Sheath	PVC
Sheath Colour	Grey
Temperature Range	-15°C to +70°C
Flame Retardant	IEC 60332-1
EMI Shielding	Excellent
Standards	VDE 0812 / DIN 47100 / IEC 60332-1 / RoHS
Applications	Electronics / Computer systems / Automation units / EMI-sensitive indoor applications

Available Articles – LiYCY PVC Shielded Signal Cable

Article No.	Size	Cores	Conductor	Insulation	Sheath	Screen	Outer Diameter	Max DCR
05210214	0.14 mm²	2	12/0.12	0.35 mm	0.7 mm	TC Braided	4.4 mm	148
05210314	0.14 mm²	3	12/0.12	0.35 mm	0.7 mm	TC Braided	4.7 mm	148
05210414	0.14 mm²	4	12/0.12	0.35 mm	0.7 mm	TC Braided	4.9 mm	148
05210514	0.14 mm²	5	12/0.12	0.35 mm	0.7 mm	TC Braided	5.3 mm	148
05210714	0.14 mm²	7	12/0.12	0.35 mm	0.7 mm	TC Braided	5.6 mm	148
05210814	0.14 mm²	8	12/0.12	0.35 mm	0.8 mm	TC Braided	6.2 mm	148
05211014	0.14 mm²	10	12/0.12	0.35 mm	0.8 mm	TC Braided	7 mm	148
05211214	0.14 mm²	12	12/0.12	0.35 mm	0.8 mm	TC Braided	7.3 mm	148
05211414	0.14 mm²	14	12/0.12	0.35 mm	0.8 mm	TC Braided	7.5 mm	148
05210225	0.25 mm²	2	14/0.15	0.4 mm	0.7 mm	TC Braided	4.8 mm	79.9
05210325	0.25 mm²	3	14/0.15	0.4 mm	0.7 mm	TC Braided	5.1 mm	79.9
05210425	0.25 mm²	4	14/0.15	0.4 mm	0.7 mm	TC Braided	5.4 mm	79.9
05210525	0.25 mm²	5	14/0.15	0.4 mm	0.7 mm	TC Braided	5.8 mm	79.9
05210725	0.25 mm²	7	14/0.15	0.4 mm	0.8 mm	TC Braided	6.4 mm	79.9
05210825	0.25 mm²	8	14/0.15	0.4 mm	0.8 mm	TC Braided	6.8 mm	79.9
05211025	0.25 mm²	10	14/0.15	0.4 mm	0.8 mm	TC Braided	7.8 mm	79.9
05211225	0.25 mm²	12	14/0.15	0.4 mm	0.8 mm	TC Braided	8.1 mm	79.9
05211425	0.25 mm²	14	14/0.15	0.4 mm	0.8 mm	TC Braided	8.2 mm	79.9
05210234	0.34 mm²	2	20/0.15	0.4 mm	0.7 mm	TC Braided	5.2 mm	57
05210334	0.34 mm²	3	20/0.15	0.4 mm	0.7 mm	TC Braided	5.5 mm	57
05210434	0.34 mm²	4	20/0.15	0.4 mm	0.7 mm	TC Braided	5.9 mm	57
05210534	0.34 mm²	5	20/0.15	0.4 mm	0.7 mm	TC Braided	6.3 mm	57
05210734	0.34 mm²	7	20/0.15	0.4 mm	0.7 mm	TC Braided	6.8 mm	57
05210834	0.34 mm²	8	20/0.15	0.4 mm	0.8 mm	TC Braided	7.5 mm	57
05211034	0.34 mm²	10	20/0.15	0.4 mm	0.8 mm	TC Braided	8.6 mm	57
05211234	0.34 mm²	12	20/0.15	0.4 mm	0.8 mm	TC Braided	9.1 mm	57
05211434	0.34 mm²	14	20/0.15	0.4 mm	0.8 mm	TC Braided	9.5 mm	57
05210250	0.5 mm²	2	16/0.20	0.45 mm	0.7 mm	TC Braided	5.6 mm	39
05210350	0.5 mm²	3	16/0.20	0.45 mm	0.7 mm	TC Braided	6 mm	39
05210450	0.5 mm²	4	16/0.20	0.45 mm	0.7 mm	TC Braided	6.4 mm	39
05210550	0.5 mm²	5	16/0.20	0.45 mm	0.7 mm	TC Braided	6.9 mm	39
05210750	0.5 mm²	7	16/0.20	0.45 mm	0.8 mm	TC Braided	7.6 mm	39
05210850	0.5 mm²	8	16/0.20	0.45 mm	0.8 mm	TC Braided	8.2 mm	39
05211050	0.5 mm²	10	16/0.20	0.45 mm	0.8 mm	TC Braided	9.8 mm	39
05211250	0.5 mm²	12	16/0.20	0.45 mm	0.8 mm	TC Braided	10.2 mm	39
05211450	0.5 mm²	14	16/0.20	0.45 mm	0.9 mm	TC Braided	10.6 mm	39
05210275	0.75 mm²	2	24/0.20	0.5 mm	0.8 mm	TC Braided	6.4 mm	26
05210375	0.75 mm²	3	24/0.20	0.5 mm	0.8 mm	TC Braided	6.8 mm	26
05210475	0.75 mm²	4	24/0.20	0.5 mm	0.8 mm	TC Braided	7.3 mm	26
05210575	0.75 mm²	5	24/0.20	0.5 mm	0.8 mm	TC Braided	7.9 mm	26
05210775	0.75 mm²	7	24/0.20	0.5 mm	0.8 mm	TC Braided	8.5 mm	26
05210875	0.75 mm²	8	24/0.20	0.5 mm	0.9 mm	TC Braided	9.4 mm	26
05211075	0.75 mm²	10	24/0.20	0.5 mm	0.9 mm	TC Braided	11 mm	26
05211275	0.75 mm²	12	24/0.20	0.5 mm	0.9 mm	TC Braided	11.4 mm	26
05211475	0.75 mm²	14	24/0.20	0.5 mm	1 mm	TC Braided	12.1 mm	26
05210210	1.0 mm²	2	32/0.20	0.6 mm	0.8 mm	TC Braided	7.2 mm	19.5
05210310	1.0 mm²	3	32/0.20	0.6 mm	0.8 mm	TC Braided	7.7 mm	19.5
05210410	1.0 mm²	4	32/0.20	0.6 mm	0.8 mm	TC Braided	8.3 mm	19.5
05210510	1.0 mm²	5	32/0.20	0.6 mm	0.8 mm	TC Braided	9.2 mm	19.5
05210710	1.0 mm²	7	32/0.20	0.6 mm	0.9 mm	TC Braided	10.3 mm	19.5
05210215	1.5 mm²	2	30/0.25	0.6 mm	0.8 mm	TC Braided	7.8 mm	13.3
05210315	1.5 mm²	3	30/0.25	0.6 mm	0.8 mm	TC Braided	8.4 mm	13.3
05210415	1.5 mm²	4	30/0.25	0.6 mm	0.8 mm	TC Braided	9.2 mm	13.3
05210515	1.5 mm²	5	30/0.25	0.6 mm	0.9 mm	TC Braided	10.2 mm	13.3
05210715	1.5 mm²	7	30/0.25	0.6 mm	1 mm	TC Braided	11 mm	13.3
