DATALINK™

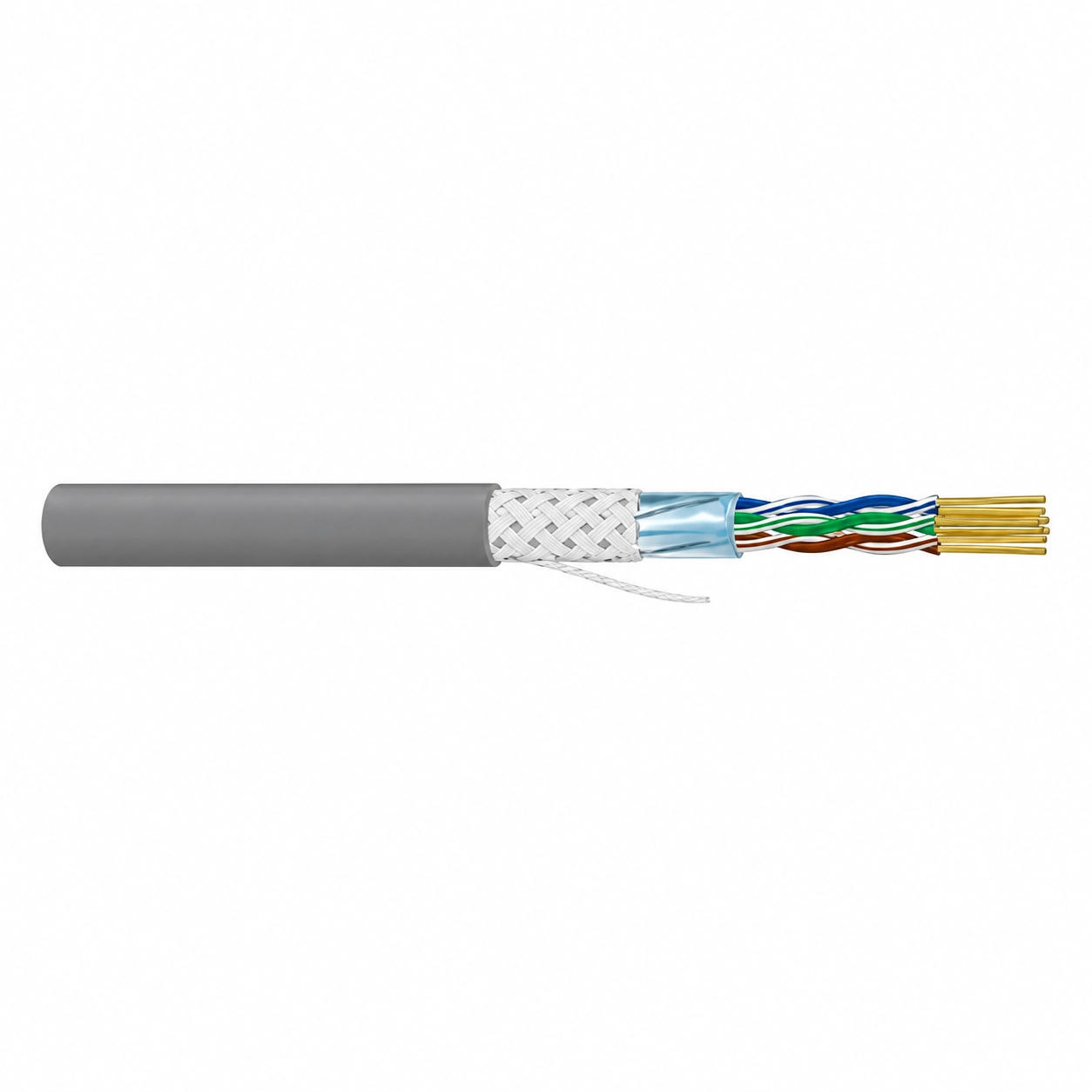

EIA RS-485 Industrial Communication Cable
Industrial RS-485 communication cable; stranded tinned copper conductors; S-PE or S-FPE insulation; twisted-pair construction; Al-Foil + Braid shielding; PVC or LSZH sheath; 120 Ω impedance; designed for industrial automation, PLC systems, RS-485 / Modbus field bus, SCADA and BMS applications.
EMI Shielding
Al-Foil + Braid shielding for EMI protection
Stable Signal Transmission
Twisted-pair construction for stable signal transmission
Optional Screen Configuration
Optional screen configuration for industrial communication applications
IN STOCK
100% GENUINE
Technical Data
| Parameter | Specification | |
|---|---|---|
| Cable Type | EIA RS-485 Industrial Communication Cable | |
| Application | Industrial Automation / PLC / RS-485 / Modbus / SCADA / BMS | |
| Conductor | Stranded Tinned Copper | |
| Insulation | S-PE / S-FPE | |
| Cabling | Twisted Pair | |
| Shield | Al-Foil + Braid | |
| Sheath | PVC / LSZH | |
| Impedance | 120 Ω | |
| Capacitance | ≤60 pF/m | |
| Resistance | ≤91.8 Ω/km (24AWG) | |
| Standards | TIA/EIA-485 / BS EN 60228 / BS EN 50288 / RoHS Directive |
Available Articles – EIA RS-485 Industrial Communication Cable
| Part No. | Size | Insulation | Sheath |
|---|---|---|---|
| 98010101 | 1x2x24AWG | S-PE | PVC |
| 98020101 | 2x2x24AWG | S-PE | PVC |
| 98030101 | 3x2x24AWG | S-PE | PVC |
| 98040101 | 4x2x24AWG | S-PE | PVC |
| 98010102 | 1x2x24AWG | S-PE | LSZH |
| 98020102 | 2x2x24AWG | S-PE | LSZH |
| 98030102 | 3x2x24AWG | S-PE | LSZH |
| 98040102 | 4x2x24AWG | S-PE | LSZH |
| 31010201 | 1x2x22AWG | S-FPE | PVC |
| 31020201 | 2x2x22AWG | S-FPE | PVC |
| 31030201 | 3x2x22AWG | S-FPE | PVC |
| 31040201 | 4x2x22AWG | S-FPE | PVC |
