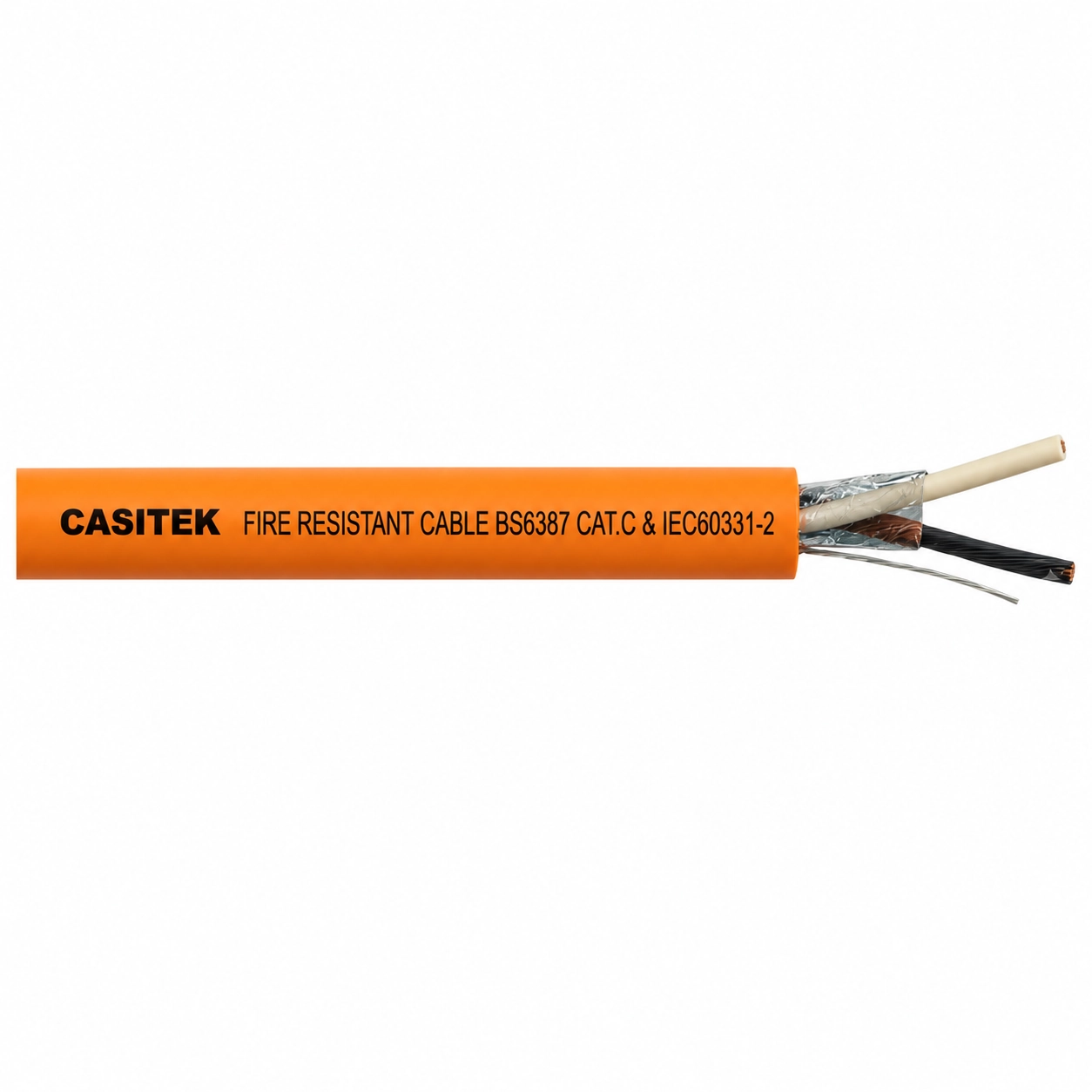

CASITEK BS 6387 Cat. C fire resistant control cable with silicone rubber insulation and orange LSZH sheath
FIRELINK™

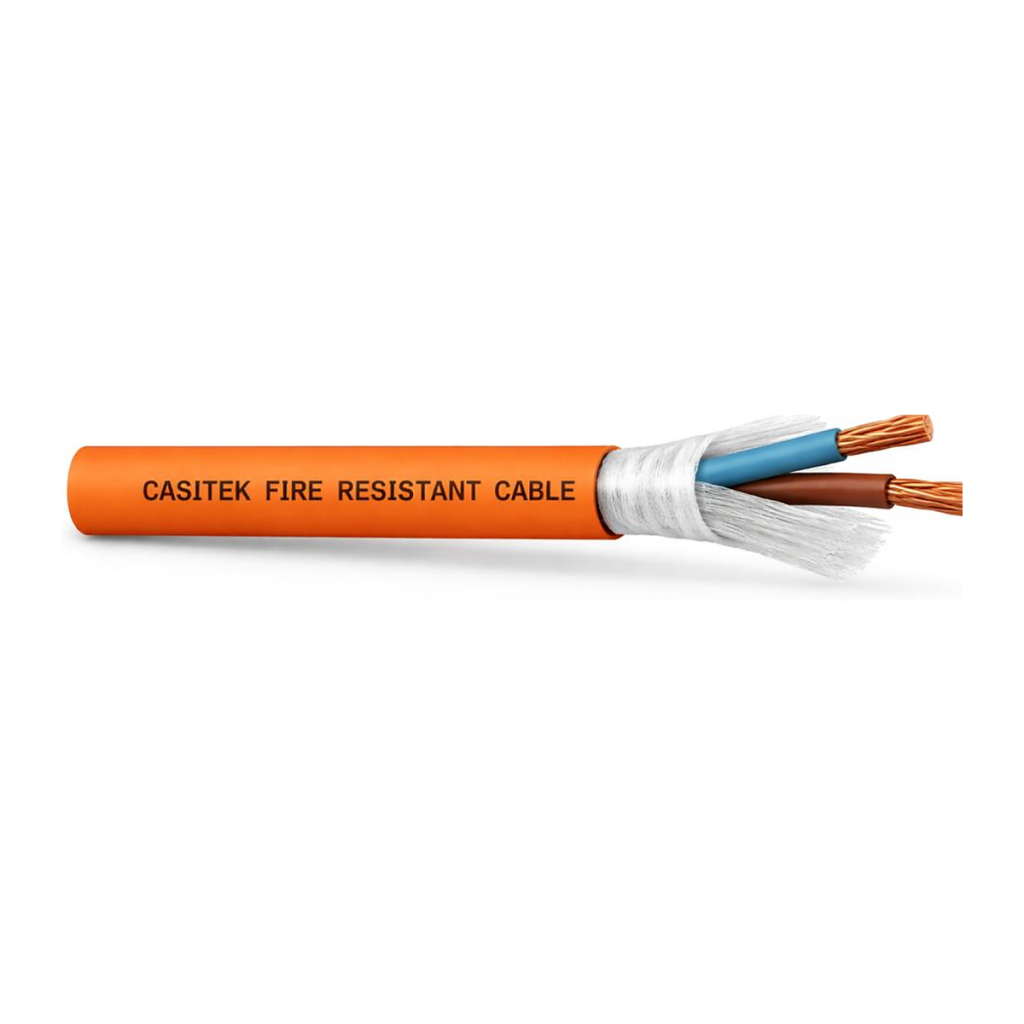

LSZH Fire Resistant Control Cable – BS 6387 Cat. C

Fire resistant control cable; U₀/U: 300/500 V; Class 2 stranded copper conductor; silicone rubber insulation; LSZH outer sheath; orange RAL 2003; BS 6387 Cat. C / IEC 60331.

Fire Resistance

BS 6387 Cat. C / IEC 60331 / EN 50200

Low Smoke & Halogen Free

IEC 60754 / IEC 61034

Flame Retardant

IEC 60332

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Rated Voltage 300/500 V
Test Voltage 2000 V
Conductor Stranded copper, Class 2
Insulation Silicone rubber
Outer Sheath LSZH
Sheath Colour Orange RAL 2003
Installation Temperature ≥ 0°C
Operating Temperature -20°C to +90°C
Minimum Bending Radius ≥ 6D
Fire Resistance IEC 60331 / BS 6387 Cat. C
Flame Retardant IEC 60332
Halogen Free IEC 60754
Smoke Density IEC 61034
Additional Standard EN 50200

Available Articles – LSZH Fire Resistant Control Cable – BS 6387 Cat. C

Article No. Description Outer Diameter Copper Index Weight
04010110 2×1.0 mm² 6.7 mm 19.4 kg/km 25.2 kg/km
04010115 2×1.5 mm² 7.3 mm 29.2 kg/km 38.0 kg/km
04010125 2×2.5 mm² 7.9 mm 48.6 kg/km 63.2 kg/km
04010210 3×1.0 mm² 7.7 mm 29.2 kg/km 38.0 kg/km
04010215 3×1.5 mm² 8.5 mm 43.7 kg/km 56.8 kg/km
04010225 3×2.5 mm² 9.3 mm 72.9 kg/km 94.8 kg/km
04010310 4×1.0 mm² 9.0 mm 38.9 kg/km 50.6 kg/km
04010315 4×1.5 mm² 10.0 mm 58.3 kg/km 75.8 kg/km
04010325 4×2.5 mm² 11.3 mm 97.2 kg/km 126.4 kg/km
04010340 4×4.0 mm² 12.7 mm 155.2 kg/km 201.8 kg/km
04010415 5×1.5 mm² 11.3 mm 72.9 kg/km 94.8 kg/km
