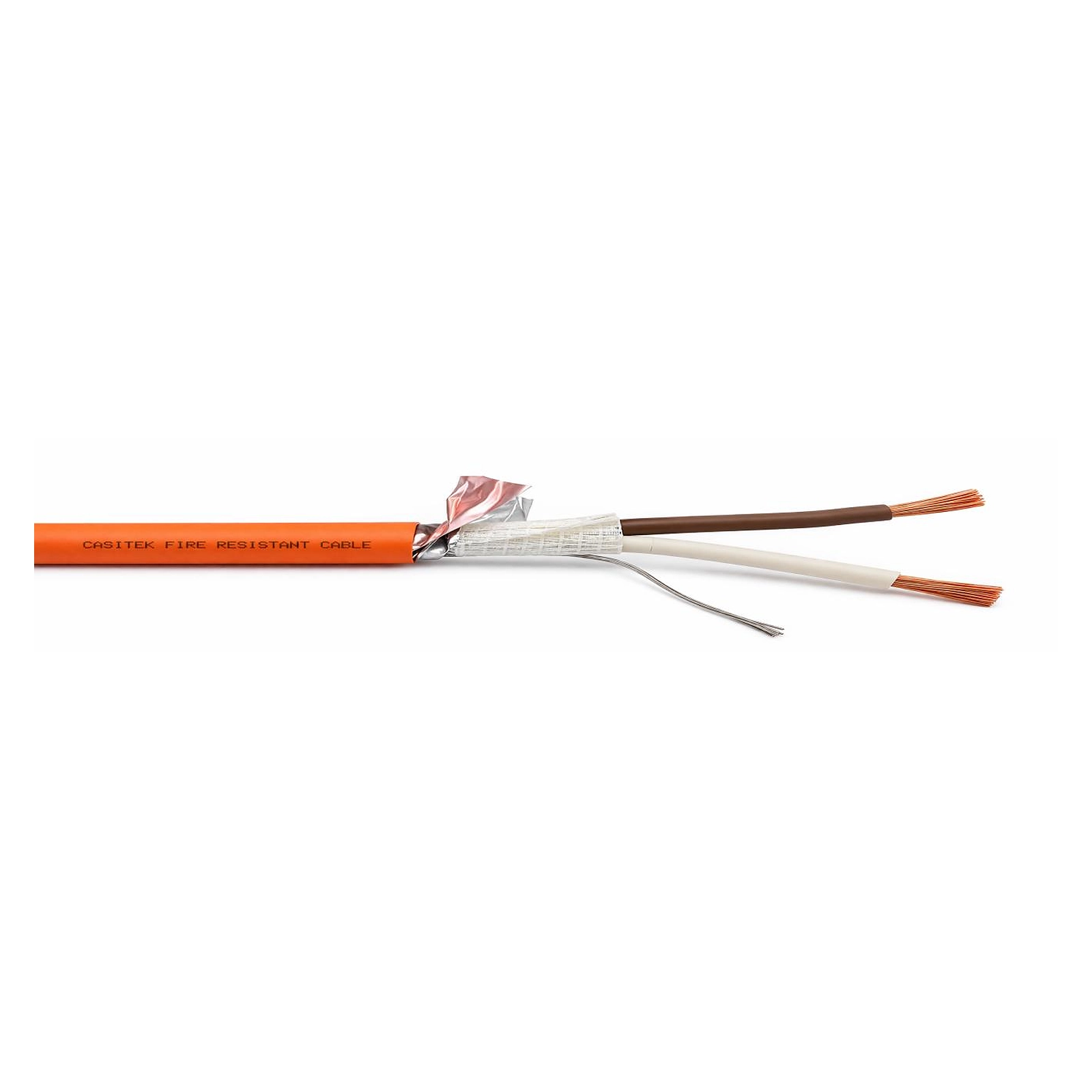

CASITEK LSZH fire resistant instrument cable with ceramic silicone insulation, mica tape fire barrier, Al foil screen and orange LSZH sheath
FIRELINK™

LSZH Fire Resistant Instrument Cable with Mica Tape Fire Barrier

LSZH Fire Resistant Instrument Cable with Mica Tape Fire Barrier

Fire Resistance

IEC 60331 / BS 6387 / EN 50200

EMI Shielding

IEC 60331 / BS 6387 / EN 50200

Low Smoke & Halogen Free

IEC 60754 / IEC 61034

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Rated Voltage 300/500 V
Test Voltage 2000 V
Conductor Stranded copper, Class 2
Insulation Ceramic silicone rubber
Fire Barrier Mica tape
Screen Al foil + drain wire
Outer Sheath LSZH
Sheath Colour Orange RAL 2003
Installation Temperature ≥ 0°C
Operating Temperature -20°C to +90°C
Minimum Bending Radius ≥ 6D
Fire Resistance IEC 60331
Flame Retardant IEC 60332
Halogen Free IEC 60754
Smoke Density IEC 61034
Additional Standards BS 6387 / EN 50200

Available Articles – LSZH Fire Resistant Instrument Cable with Mica Tape Fire Barrier

Article No. Description Outer Diameter Copper Index Weight
43010110 1×2×1.0 mm² 7.2 mm 17.8 kg/km 24.0 kg/km
43010210 2×2×1.0 mm² 8.5 mm 35.6 kg/km 48.1 kg/km
43010310 3×2×1.0 mm² 9.5 mm 53.4 kg/km 72.1 kg/km
43010410 4×2×1.0 mm² 10.5 mm 71.2 kg/km 96.1 kg/km
43010610 6×2×1.0 mm² 12.5 mm 106.8 kg/km 144.2 kg/km
43010710 7×2×1.0 mm² 13.5 mm 124.6 kg/km 168.2 kg/km
43010810 8×2×1.0 mm² 14.5 mm 142.4 kg/km 192.2 kg/km
43011010 10×2×1.0 mm² 16.5 mm 178.0 kg/km 240.3 kg/km
43011210 12×2×1.0 mm² 18.5 mm 213.6 kg/km 288.4 kg/km
43011410 14×2×1.0 mm² 20.0 mm 249.2 kg/km 336.4 kg/km
43011510 15×2×1.0 mm² 21.0 mm 267.0 kg/km 360.5 kg/km
43011610 16×2×1.0 mm² 22.0 mm 284.8 kg/km 384.5 kg/km
43011910 19×2×1.0 mm² 23.5 mm 338.2 kg/km 456.6 kg/km
43012010 20×2×1.0 mm² 24.5 mm 356.0 kg/km 480.6 kg/km
43012410 24×2×1.0 mm² 26.5 mm 427.2 kg/km 576.7 kg/km
43010115 1×2×1.5 mm² 7.5 mm 32.0 kg/km 43.2 kg/km
43010215 2×2×1.5 mm² 9.0 mm 53.4 kg/km 72.1 kg/km
43010315 3×2×1.5 mm² 10.5 mm 80.1 kg/km 108.1 kg/km
43010415 4×2×1.5 mm² 11.5 mm 106.8 kg/km 144.2 kg/km
43010515 5×2×1.5 mm² 12.5 mm 133.5 kg/km 180.2 kg/km
43010615 6×2×1.5 mm² 13.5 mm 160.2 kg/km 216.3 kg/km
43010715 7×2×1.5 mm² 14.5 mm 186.9 kg/km 252.3 kg/km
43010815 8×2×1.5 mm² 15.5 mm 213.6 kg/km 288.4 kg/km
43011015 10×2×1.5 mm² 17.5 mm 267.0 kg/km 360.5 kg/km
43011215 12×2×1.5 mm² 19.5 mm 320.4 kg/km 432.5 kg/km
43011415 14×2×1.5 mm² 21.5 mm 373.8 kg/km 504.6 kg/km
43011515 15×2×1.5 mm² 22.5 mm 400.5 kg/km 540.7 kg/km
43011615 16×2×1.5 mm² 23.5 mm 427.2 kg/km 576.7 kg/km
43011915 19×2×1.5 mm² 25.5 mm 507.3 kg/km 684.9 kg/km
43012015 20×2×1.5 mm² 26.5 mm 534.0 kg/km 720.9 kg/km
43012415 24×2×1.5 mm² 28.5 mm 640.8 kg/km 865.1 kg/km
43010125 1×2×2.5 mm² 8.9 mm 44.5 kg/km 60.1 kg/km
43010225 2×2×2.5 mm² 10.5 mm 89.0 kg/km 120.2 kg/km
43010325 3×2×2.5 mm² 12.0 mm 133.5 kg/km 180.2 kg/km
43010425 4×2×2.5 mm² 13.5 mm 178.0 kg/km 240.3 kg/km
43010625 6×2×2.5 mm² 15.5 mm 267.0 kg/km 360.5 kg/km
43010725 7×2×2.5 mm² 16.5 mm 311.5 kg/km 420.5 kg/km
43010825 8×2×2.5 mm² 17.5 mm 356.0 kg/km 480.6 kg/km
43011025 10×2×2.5 mm² 19.5 mm 445.0 kg/km 600.8 kg/km
43011225 12×2×2.5 mm² 21.5 mm 534.0 kg/km 720.9 kg/km
43011425 14×2×2.5 mm² 23.5 mm 623.0 kg/km 841.1 kg/km
43011525 15×2×2.5 mm² 24.5 mm 667.5 kg/km 901.1 kg/km
43011625 16×2×2.5 mm² 25.5 mm 712.0 kg/km 961.2 kg/km
43011925 19×2×2.5 mm² 27.5 mm 845.5 kg/km 1141.4 kg/km
43012025 20×2×2.5 mm² 28.5 mm 890.0 kg/km 1201.5 kg/km
43012425 24×2×2.5 mm² 30.5 mm 1068.0 kg/km 1441.8 kg/km
