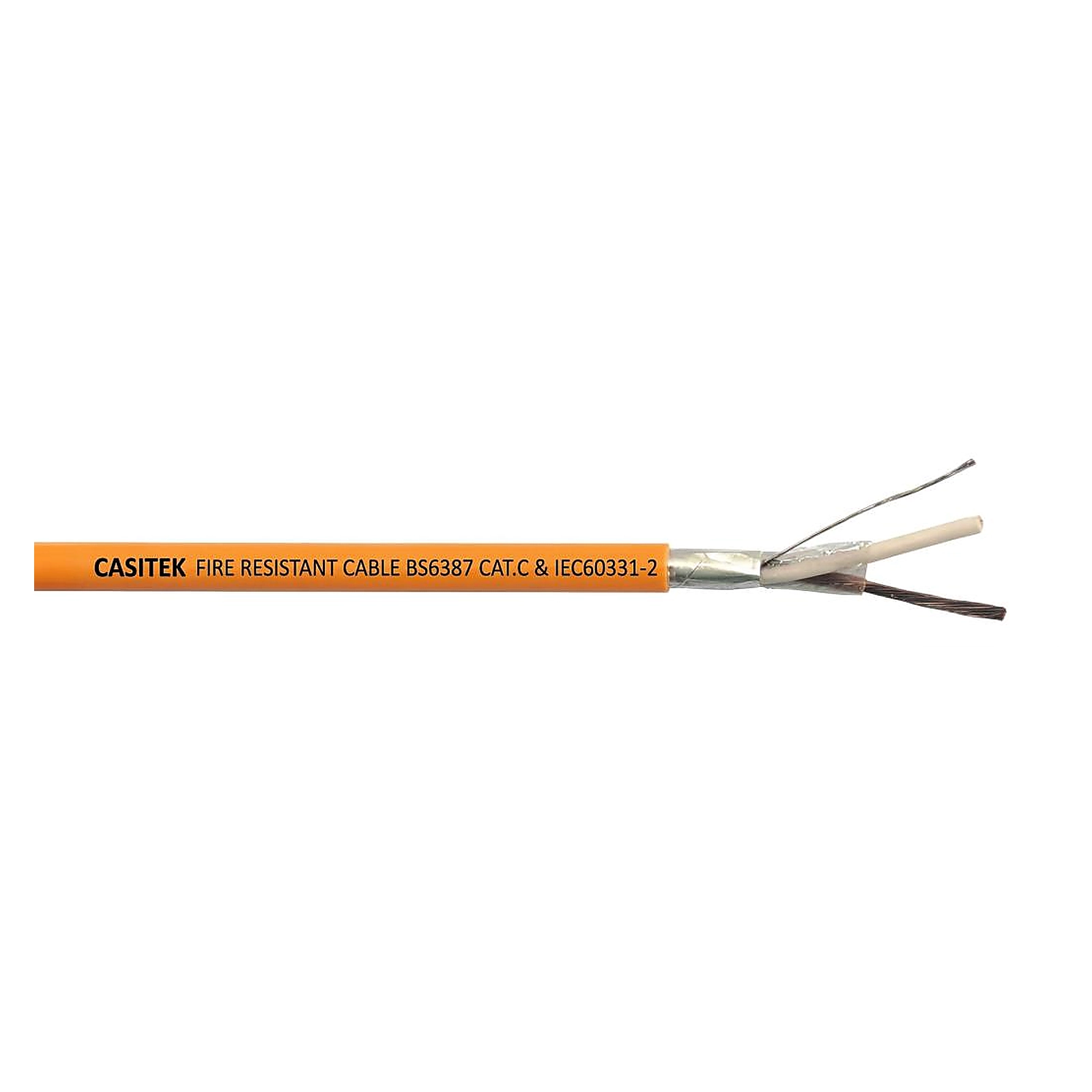

CASITEK BS 6387 Cat. C fire resistant instrument cable with Al foil screen, drain wire and orange LSZH sheath
FIRELINK™

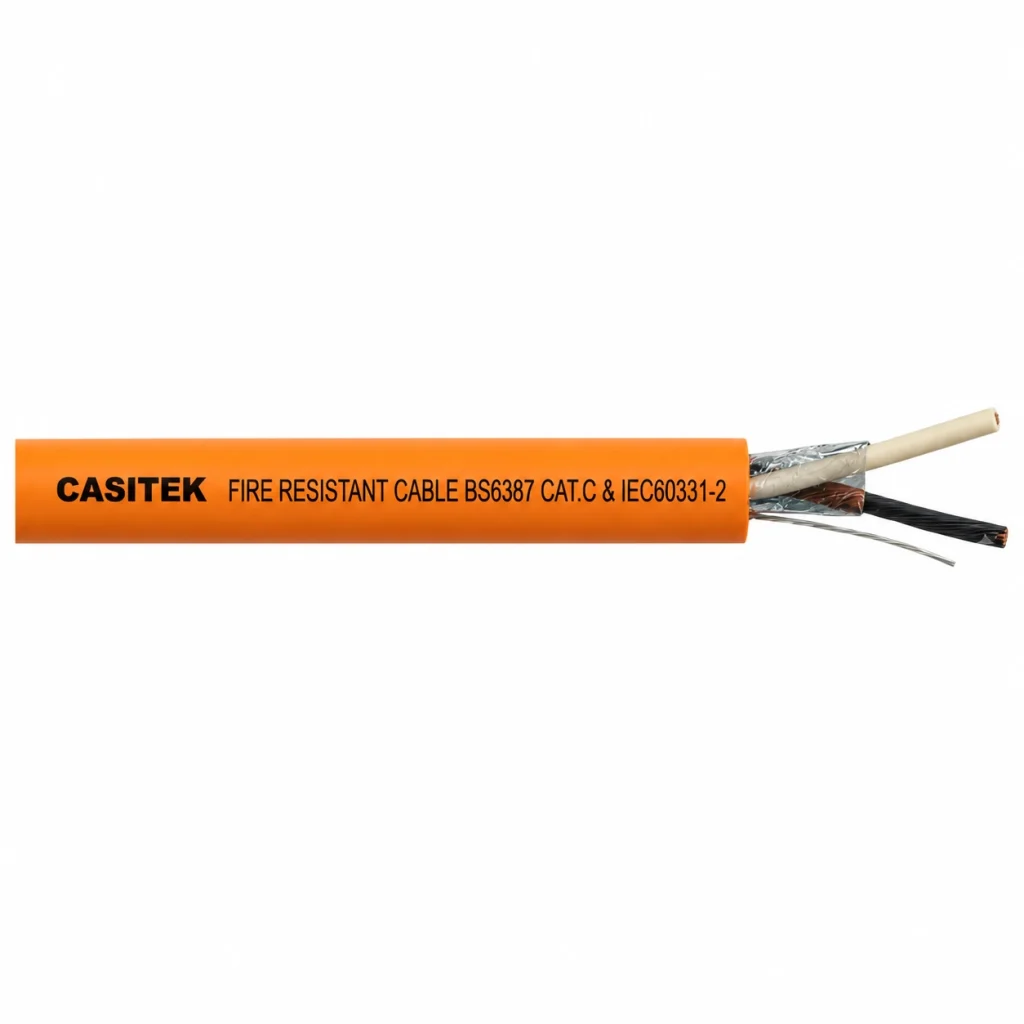

LSZH Fire Resistant Instrument Cable – BS 6387 Cat. C

Fire resistant instrument cable; U₀/U: 300/500 V; Class 2 stranded copper conductor; silicone rubber insulation; Al foil screen with drain wire; LSZH outer sheath; orange RAL 2003; BS 6387 Cat. C / IEC 60331.

Fire Resistance

BS 6387 Cat. C / IEC 60331 / EN 50200

EMI Shielding

Al foil screen + drain wire

Low Smoke & Halogen Free

IEC 60754 / IEC 61034

Yêu cầu báo giá
IN STOCK 100% GENUINE

Technical Data

Parameter Specification
Rated Voltage 300/500 V
Test Voltage 2000 V
Conductor Stranded copper, Class 2
Insulation Silicone rubber
Screen Al foil + drain wire
Outer Sheath LSZH
Sheath Colour Orange RAL 2003
Installation Temperature ≥ 0°C
Operating Temperature -20°C to +90°C
Minimum Bending Radius ≥ 6D
Fire Resistance IEC 60331 / BS 6387 Cat. C
Flame Retardant IEC 60332
Halogen Free IEC 60754
Smoke Density IEC 61034
Additional Standard EN 50200

Available Articles – LSZH Fire Resistant Instrument Cable – BS 6387 Cat. C

Article No. Description Outer Diameter Copper Index Weight
04020110 1×2×1.0 mm² 7.0 mm 19.4 kg/km 31.0 kg/km
04020115 1×2×1.5 mm² 7.7 mm 29.2 kg/km 46.7 kg/km
04020125 1×2×2.5 mm² 8.4 mm 48.6 kg/km 77.8 kg/km
04020210 1×3×1.0 mm² 8.3 mm 29.2 kg/km 46.7 kg/km
04020215 1×3×1.5 mm² 9.3 mm 43.7 kg/km 69.9 kg/km
04020225 1×3×2.5 mm² 10.3 mm 72.9 kg/km 116.6 kg/km
04020310 4×1.0 mm² 10.0 mm 38.9 kg/km 62.2 kg/km
04020315 4×1.5 mm² 11.3 mm 58.3 kg/km 93.3 kg/km
04020325 4×2.5 mm² 12.7 mm 97.2 kg/km 155.5 kg/km
04020340 4×4.0 mm² 14.3 mm 155.2 kg/km 248.3 kg/km
04020415 5×1.5 mm² 12.5 mm 72.9 kg/km 116.6 kg/km
